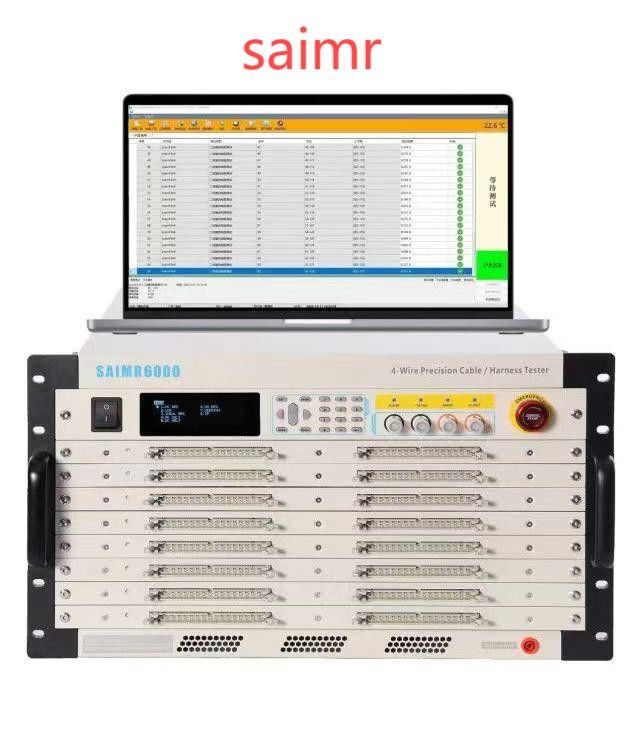

New Energy Battery CCS,FPC Medium Voltage Wiring Harness Comprehensive Test System
The Medium Voltage Wiring Harness Comprehensive Test System is a sophisticated instrument designed for the rapid and precise inspection of wiring harnesses in various industries. It is capable of accurately detecting faults such as broken circuits, short circuits, and misalignments within the test harness, facilitating users in promptly identifying and addressing issues within the wiring harness. When combined with the supporting upper computer test software, it provides an intuitive display of the identified problems in the wiring harness.
This system finds wide application in automotive, flexible circuit boards, CCS, and other fields for automated testing. The SAIMR6000 distributed version can be configured as a distributed test system. Through the expansion of the interface, it can support up to more than 20,000 test points, making it suitable for wiring harness testing in complex systems such as airplanes, trains, and satellites.
Technical Specifications:
Model: SAIMR 6000S and SAIMR 6000
Measurement Method: Incorporates both second line type and four line type for enhanced accuracy.
Maximum Number of Test Points: 256 for SAIMR 6000S and 128 for SAIMR 6000.
AC High Voltage: Ranges from 30 to 2000V.
DC High Voltage: Spans from 30 to 3000V.
High-Voltage Output Accuracy: ±5%
High-Voltage Measurement Accuracy: ±5%
High Pressure Measurement Time: Ranges from 0.1s to 500s
Short Open Circuit / Quick Short Circuit / Quick Quick Open Circuit: Resistance range of 2kΩ - 1000 kΩ
Second Line Conduction Impedance: 0.1Ω - 1MΩ
Four-Wire: [Detailed description of four-wire functionality]
Guide Pass Test: [Explanation of guide pass test feature]
Test Specification: 10μΩ - 1000K Ω
Test Current: ≤1A
AC High-Voltage Leakage Current: 10μA - 10mA
DC High-Voltage Leakage Current: 1μA - 5mA
DC High-Voltage Insulation: 1MΩ - 50GΩ
Direct-Current Resistance: Measurement range of 10mΩ - 1MΩ
Level Signal: 0.5 - 10V
Current Signal: ≤10mA
LCR: Electrical capacity measurement range of 10pF - 100μF, resistor test range of 100mΩ - 20MΩ, and inductive test range of 10nH - 100H
Frequency Signal: 50Hz/60Hz, 100Hz/120Hz, 1kHz/10kHz
Quotation Mode: AUTO/HOLD
Level Signal: 0.1V - 1.0V
Diode / Voltage Stabilizer Tube: Test specification of 1 - 10V with a test signal of 1mA. Allows for unilateral testing and can determine the short-break end point.
Advanced Function Project: Includes programmable continuous test, automatic spot finding, and automatic diagnosis.
Test Scan Mode: Automatic, manual, or external.
Measuring Signal: Utilizes low-voltage measurement signals.
Store Memory: Can store up to 500 sets of test setting files.
OS Voltage: 5V
Control Surface Version: Includes calibration and measurement functionalities.
Weight: 17kg for SAIMR 6000 and 22kg for SAIMR 6000S.
Dimensions (in mm): 483265510 for SAIMR 6000S and 483183510 for SAIMR 6000.
