Name: FPC / CCS Medium And High Voltage Wiring Harness Test System
Brand: Suzhou Saimr Electronics Technology Co., Ltd.
SKU: SAIMR7000
Price: Negotiable USD
Availability: InStock

Home > products > Automatic Cable Harness Tester >

FPC / CCS Medium And High Voltage Wiring Harness Test System

CCS Wiring Harness Test System

High Voltage Wiring Harness Test System

FPC Wiring Harness Test System

Place of Origin:

China

Brand Name:

SAIMR

Certification:

Model Number:

SAIMR7000

Request A Quote

FPC / CCS Medium And High Voltage Wiring Harness Test System

Product Details

Name:

FPC/CCS Medium And High Voltage Wiring Harness Test SystemFPC/CCS Medium And High Voltage Wiring Harness Test System

Test Point:

16/32/48/64...20480

DC:

30v-4000v

AC:

30V-3000V

Test Mode:

Four/two-wire Mixing Test

Insulation Testing:

1MΩ-50GΩ（30v-2000v）

DC Resistance:

0.1Ω-1MΩ

External 4-wire DC Resistance Test:

10μΩ-100Ω

AC Leakage Current Test:

1μA-10mA

DC Leakage Current Test:

0.1μA-5mA

OS Test:

2kΩ-200kΩ

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

To be negotiated

Packaging Details

Packing in wooden crates

Delivery Time

30 days

Payment Terms

To be negotiated, T/T

Supply Ability

To be negotiated

CCS High Voltage Wiring Harness Comprehensive Test System

Get Best Price

Medium And High Voltage Wiring Harness Comprehensive Test System

Get Best Price

Medium Voltage Wiring Harness Comprehensive Test System

Get Best Price

FPC / CCS Medium And High Voltage Wiring Harness Test System

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

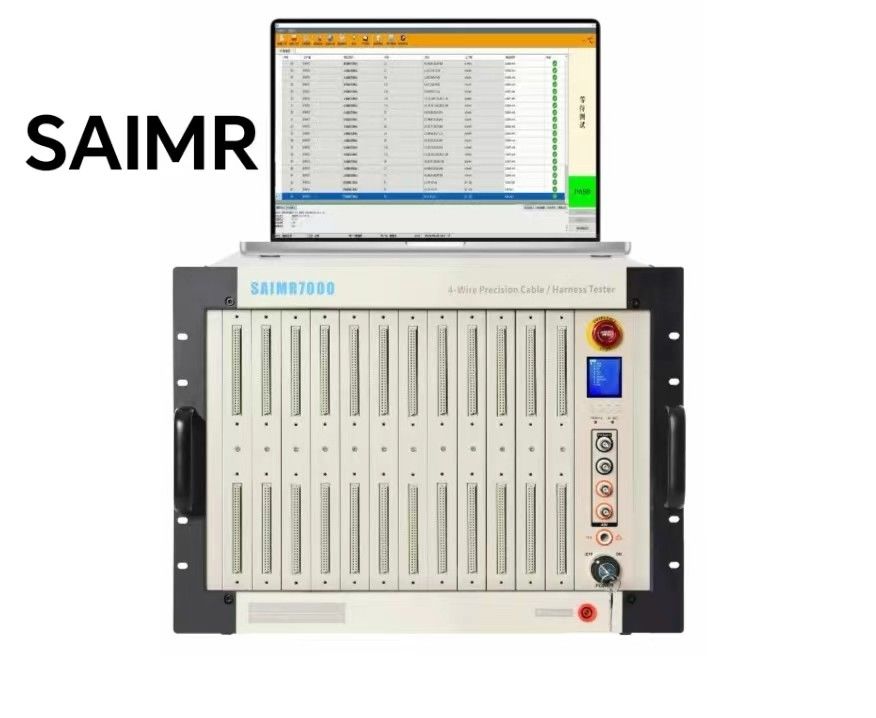

Medium and High Voltage Wiring Harness Test System

The FPC/CCS Medium and High Voltage Wiring Harness Test System is capable of testing 16/48/96/192 points, and the system adopts the hybrid testing approach of internal 4-wire and external 4-wire. The equipment possesses the following test functionalities: rapid OS test, precise OS test, 2-wire resistance test, 4-wire DC on-resistance test, 4-wire LCR test, insulation resistance test, and AC/DC withstand voltage test.

Distributed Architecture (Distributed Version)

It is capable of forming a distributed system with a maximum of 192 points or more.

Modular Design

Each test instrument integrates 1 test card and 12 switching array cards, each featuring 16 test points, and supports 2-wire and 4-wire mixed testing.

Multi-Functional Testing

The test board integrates the OS test function, DC resistance test function, LCR test function, AC/DC insulation withstand voltage test function, and LCR test function. It also includes DC resistance, LCR, AC/DC withstand voltage, insulation resistance, and a programmable power supply.

Highly Accurate On-Resistance

The on-resistance test offers a maximum of 1A test current and a minimum resistance resolution of 10μΩ.

Self-Learning Function for Quick Detection of Unknown Harness Connections.

Model	SAIMR7000
Measurement methods	Two four-wire + four-wire type
Maximum number of test points	192Points
AC high voltage	25-3000V
DC high voltage	25-4000V
High voltage output accuracy	±5%
High voltage measurement accuracy	±5%
High voltage measurement time	0.01s -60s
Test items and scope	O/S, intermittence O/S, quick intermittence open circuit		2kΩ-200kΩ (200KΩ-1000KΩ need to be customised)
	Inner four-wire conduction impedance		0.1Ω-1MΩ
	External four-wire connection test	Test range		10μΩ-1MΩ
		Current signal		≤1A
	AC high-voltage leakage current		0.01mA-10mA
	DC high-voltage leakage current		0.1μA-5mA
	DC high-voltage insulation		1MΩ-10GΩ
	DC resistance	Measurement range		100mΩ-2MΩ
		level signal		0.5-6V
		current signal		≤10mA
	LCR	Capacitance measurement range		10pF-100μF
		Resistance measurement range		100mΩ-20MΩ
		Inductance measurement range		10nH~100H
		Frequency signal		50Hz/60Hz,100Hz/120Hz/ 1kHz/10kHz
		Range mode		AUTO/HOLD
		Level signal		0.1V-1.0V
	Single-side test		Yes
	O/S Terminal Judge		Yes
Advanced function items	Programmable continuous test/ Automatic point search/ Auto-diagnosis
Test scan mode	Automatic/manual/external
Measurement signal	Low voltage measurement signal
Storage memory	umber of test files up to 500 sets
OS voltage	5V
Control panel	Calibration/metrology
Weight	25kg
Dimension (WHD)	483352535
