Medium Voltage Wiring Harness Comprehensive Test System

Medium Voltage Wiring Harness Test System

Wiring Harness Comprehensive Test System

Place of Origin:

China

Brand Name:

SAIMR

Certification:

Model Number:

SAIMR6000

Request A Quote

Medium Voltage Wiring Harness Comprehensive Test System

Product Details

Name:

Medium Voltage Wiring Harness Comprehensive Test System

DC:

30v-3000v

AC:

30V-2000V

Test Mode:

Four/two-wire Mixing Test

Insulation Testing:

1MΩ-50GΩ（30v-2000v）

DC Resistance:

0.1Ω-1MΩ

External 4-wire DC Resistance Test:

10μΩ-100Ω

AC Leakage Current Test:

1μA-10mA

DC Leakage Current Test:

0.1μA-5mA

OS Test:

2kΩ-200kΩ

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

To be negotiated

Packaging Details

Packing in wooden crates

Delivery Time

30 days

Payment Terms

To be negotiated, T/T

Supply Ability

To be negotiated

CCS High Voltage Wiring Harness Comprehensive Test System

Get Best Price

Medium And High Voltage Wiring Harness Comprehensive Test System

Get Best Price

Medium Voltage Wiring Harness Comprehensive Test System

Get Best Price

FPC / CCS Medium And High Voltage Wiring Harness Test System

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

Medium Voltage Wiring Harness Comprehensive Test System

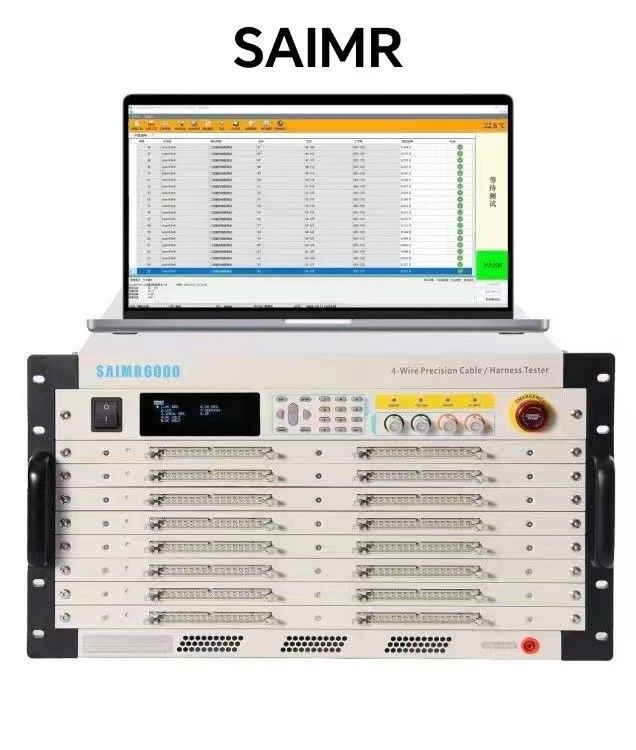

Medium Voltage Wiring Harness Comprehensive Test System is an instrument used for rapid inspection of wiring harness and other industries, can accurately detect the test harness in the broken circuit, short circuit and misalignment, to help users quickly detect the problems in the wiring harness. The equipment combined with the supporting upper computer test software, intuitive display of the problems in the wiring harness.

The system can be used in automotive, flexible circuit boards, CCS and other automated testing, SAIMR6000 distributed version can be constructed as a distributed test system, through the expansion of the interface, up to support more than 20,000 test points, can be used in airplanes, trains, satellites and other wiring harness testing.

model	SAIMR 6000S		SAIMR 6000
Measurement method	Second line type + four line type
Maximum number of test points	256		128
AC high-handed	30-2000V
DC high-handed	30-3000V
High-pressure output accuracy	±5%
High-pressure measurement of accuracy	±5%
High pressure measurement time	0.1s - 500s
survey try Item eye take part in pattern Around	Short open circuit / quick short circuit / quick quick open circuit			2kΩ-1000 kΩ
	Second line conduction impedance			0.1Ω-1MΩ
	four-wire Guide pass test	test specification		10μΩ-1000K Ω
		test current		≤1A
	AC high-voltage leakage current			10μA-10mA
	DC high-voltage leakage current			1μA-5mA
	DC high-voltage insulation			1MΩ-50GΩ
	direct-current resistance	Measurement range		10mΩ-1MΩ
		level signal		0.5-10V
		Current signal		≤10mA
	LCR	Electrical capacity measurement range		10pF-100μF
		Resistor test range		100mΩ-20MΩ
		Inductive test range		10nH~100H
		Frequency signal		50Hz/60Hz,100Hz/120Hz/ 1kHz/10kHz
		Quotation mode		AUTO/HOLD
		level signal		0.1V-1.0V
	Diode / pressure stabilizer tube	test specification		1-10V
		test signal		1mA
	Unilateral test			Can be unilateral test
	Short-break-road endpoint judgment			The short break end point can be judged
Advanced function project	Programmable continuous test / automatic spot finding / automatic diagnosis
Test scan mode	Automatic / manual / external
Measuring the signal	Low-voltage measurement signals
Store memory	Up to 500 sets of test setting files stored
OS voltage	5V
Control surface version	Calibration / measurement
weight	17kg(6000)/22kg(6000S )
Dimensions (in mm)	483265510(6000S )/483183510(6000)
