Name: CCS High Voltage Wiring Harness Comprehensive Test System
Brand: Suzhou Saimr Electronics Technology Co., Ltd.
SKU: SAIMR8000
Price: Negotiable USD
Availability: InStock

Home > products > Automatic Cable Harness Tester >

CCS High Voltage Wiring Harness Comprehensive Test System

CCS Automatic Cable Harness Tester

High Voltage Automatic Cable Harness Tester

Wiring Harness Comprehensive Test System

Place of Origin:

China

Brand Name:

SAIMR

Certification:

Model Number:

SAIMR8000

Request A Quote

CCS High Voltage Wiring Harness Comprehensive Test System

Product Details

Name:

CCS High Voltage Wiring Harness Comprehensive Test System

Test Point:

32/64/128/256...20480

Test Mode:

Four-wire Test

DC:

10v-5000v

AC:

10V-4000V

Insulation Testing:

500kΩ-10GΩ（10v-1000v）

DC Resistance:

Full Scale

AC Leakage Current Test:

10μA-12mA

DC Leakage Current Test:

10μA-6mA

Conduction Test:

10μΩ-10MΩ

Diodes:

0-40V

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

To be negotiated

Packaging Details

Packing in wooden crates

Delivery Time

30 days

Payment Terms

To be negotiated, T/T

Supply Ability

To be negotiated

CCS High Voltage Wiring Harness Comprehensive Test System

Get Best Price

Medium And High Voltage Wiring Harness Comprehensive Test System

Get Best Price

Medium Voltage Wiring Harness Comprehensive Test System

Get Best Price

FPC / CCS Medium And High Voltage Wiring Harness Test System

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

CCS High Voltage Wiring Harness Comprehensive Test System

model	SAIMR8000
Measurement method	four line type
Maximum number of test points	32/64/128/256...20480PIN
AC	10v-4000V
DC	10v-5000v
Conduction	10μΩ-10MΩ
Insulation Testing	500kΩ-10GΩ(10v-1000v)
survey try Item eye take part in pattern Around	AC high-voltage leakage current		10μA-12mA
	DC high-voltage leakage current		10μA-6mA
	Diode / pressure stabilizer tube
		0-40v	1mA0.1mA
	Advanced function project	Programmable continuous test / automatic spot finding / automatic diagnosis
Test scan mode	Automatic / manual / external
Measuring the signal	high-voltage measurement signals
Store memory	Up to 500 sets of test setting files stored

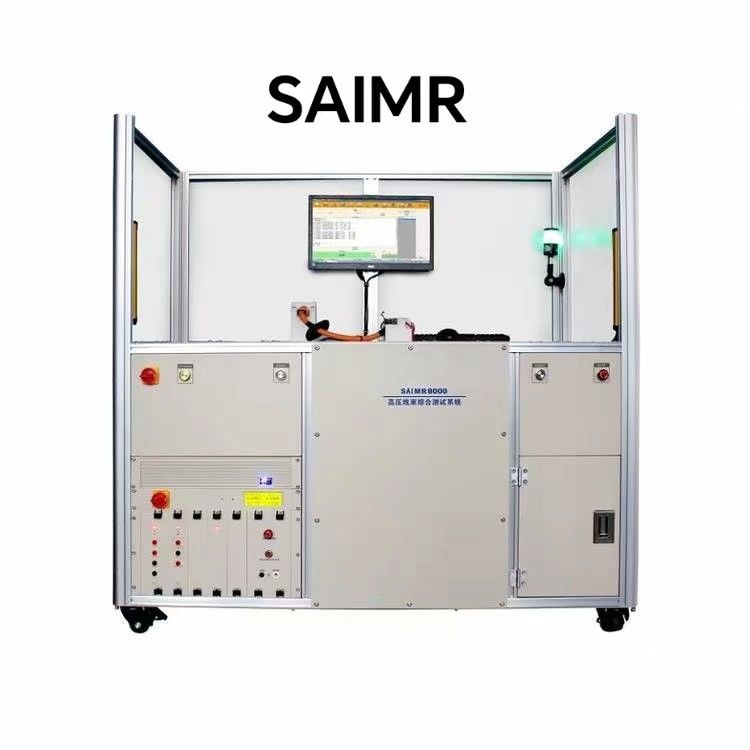

The CCS High Voltage Wiring Harness Comprehensive Test System is an instrument employed for the rapid inspection of wiring harnesses, capable of accurately detecting breaks, shorts, and misalignments in the test wiring harness, aiding users in swiftly detecting issues within the wiring harness. The equipment, in combination with the supporting upper computer test software, visualizes the problems in the wiring harness.

The system can be applied to the automation testing of wiring harness lines in the automotive, flexible circuit boards, and other fields. The SAIMR8000 distributed version can be constructed as a distributed test system, and through the expansion interface, it can support up to 20,000 test points, which can be used for the testing of wiring harnesses in aircraft, trains, satellites, and other applications.

Distributed Structure (Distributed Version)
It can form a distributed system, and the maximum number of points can be expanded to over 20,000.

Modularized Design
Each test instrument is integrated with 3 test cards and 8 switch array cards, and each switch array card has 32 test points and supports 4-wire measurement.

Multi-functional Test
The test card integrates the OS test function, DC resistance test function, AC/DC insulation voltage test function, insulation resistance test function, and programmable power supply function.

Highly Accurate On-resistance
The on-state testing provides a maximum test current of 1A and a minimum resistance resolution of 10μΩ.

Self-learning Function for Quick Detection of Unknown Harness Connections
It possesses a self-learning function for the quick detection of the connection relationships of unknown harnesses.
