Multi Channel Instantaneous Breaking Tester

Product Description:

Multi Channel Instantaneous Breaking Tester SAIMR5000 is a professional testing instrument used for conducting various aspects of detection such as conductivity and insulation performance of four-wire wire harnesses.

The SAIMR5000 is an instrument used for rapid inspection of wiring harnesses, and can accurately detect breaks, shorts and misalignments in the test harnesses, helping users to quickly detect problems in the wiring harnesses. The device combined with the supporting software of the upper computer test, intuitively display the problems in the wiring harness. The system can be applied to automotive, flexible circuit boards, and other wiring harness line automation test. SAIMR5000 distributed version can be built as a distributed test system, through the expansion interface, can support up to 20,000 test points, can be used for aircraft, trains, satellites, and other wiring harness test.

Features:

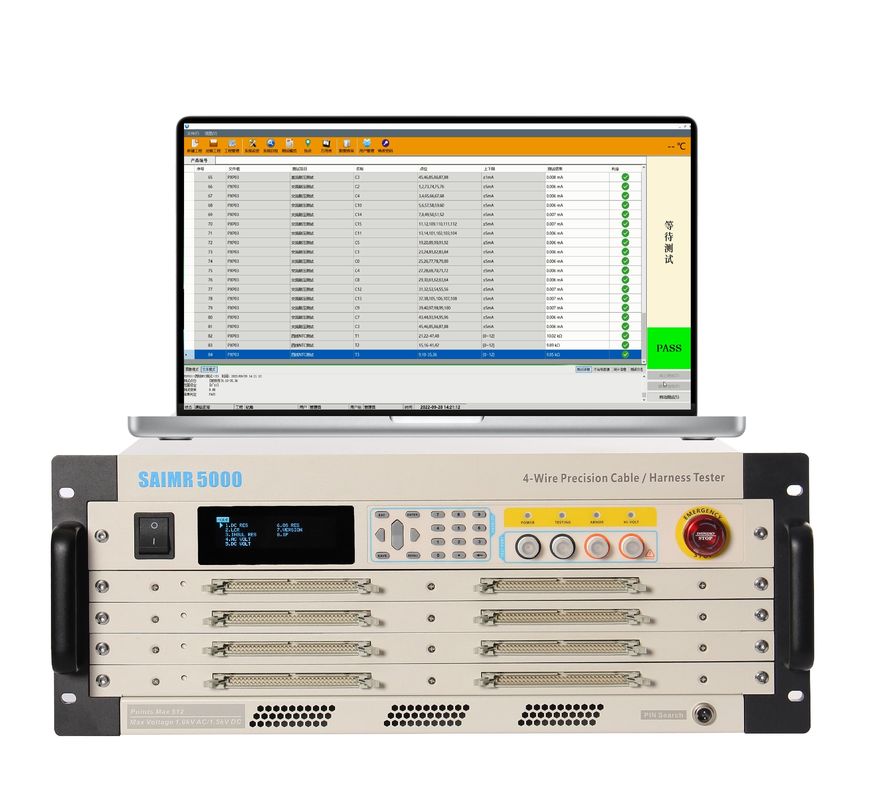

Multi Channel Instantaneous Breaking Tester SAIMR5000

 Distributed Architecture (Distributed Version)
Can form a distributed system, the maximum number of points can be expanded to more than 20,000 points.
 Modular design
Each test instrument integrates 1 test card and 8 switch array cards, each switch array card has 128 test points and supports 2-wire and 4-wire mixing.
Each switch array card has 128 test points and supports 2-wire and 4-wire mixed testing.
 Multi-Function Test
The test board integrates OS test function, DC resistance test function, LCR test function, AC/DC insulation voltage test function, insulation test function, and LCR test function.
DC resistance test function, LCR test function, AC/DC insulation withstand voltage test function, insulation resistance test function and programmable power supply function.
 Highly Accurate On-Resistance
The on-resistance test provides a maximum of 1A test current and a minimum resistance resolution of 10μΩ.
 Self-learning function for quick detection of unknown harness connections.

Technical Parameters:

Applications:

The SAIMR5000 Multi Channel Instantaneous Breakdown Tester is packed in a wooden case for safe transport. It has a bilingual operator interface and is white in colour. It is available in 4 wire or 2 wire (hybrid test) test modes and has an AC voltage range of 30-1000 V. It is also equipped with an NTCA (No Test Cable Assembly) to make it more efficient and user-friendly.

The SAIMR5000 Multi Channel Instantaneous Circuit Breaker can be used in a variety of situations and scenarios, including

Electronics manufacturing plants
Automotive manufacturing plants
Aerospace and defence industries
Electrical and power industries
Medical device manufacturing plants
In electronics manufacturing plants, the SAIM5000 Multi Channel Instantaneous Disconnect Tester can be used to test the wiring harnesses of a wide range of electronic devices such as computers, printers and televisions. In automotive manufacturing plants, it can be used to test wiring harnesses in cars, trucks and other vehicles. In the aerospace and defence industry, it can be used to test wiring harnesses for aircraft and missiles. In the electrical and power industry, it can be used to test wiring harnesses for generators and transformers. In medical equipment manufacturing plants, it can be used to test harnesses for medical equipment such as X ray machines and MRI scanners.

The SAIMR5000 Multi Channel Instantaneous Disconnect Tester is a reliable and efficient product that helps organisations save time and money and ensure product quality. Its advanced features and easy-to-use interface make it ideal for a wide range of industries and applications.
