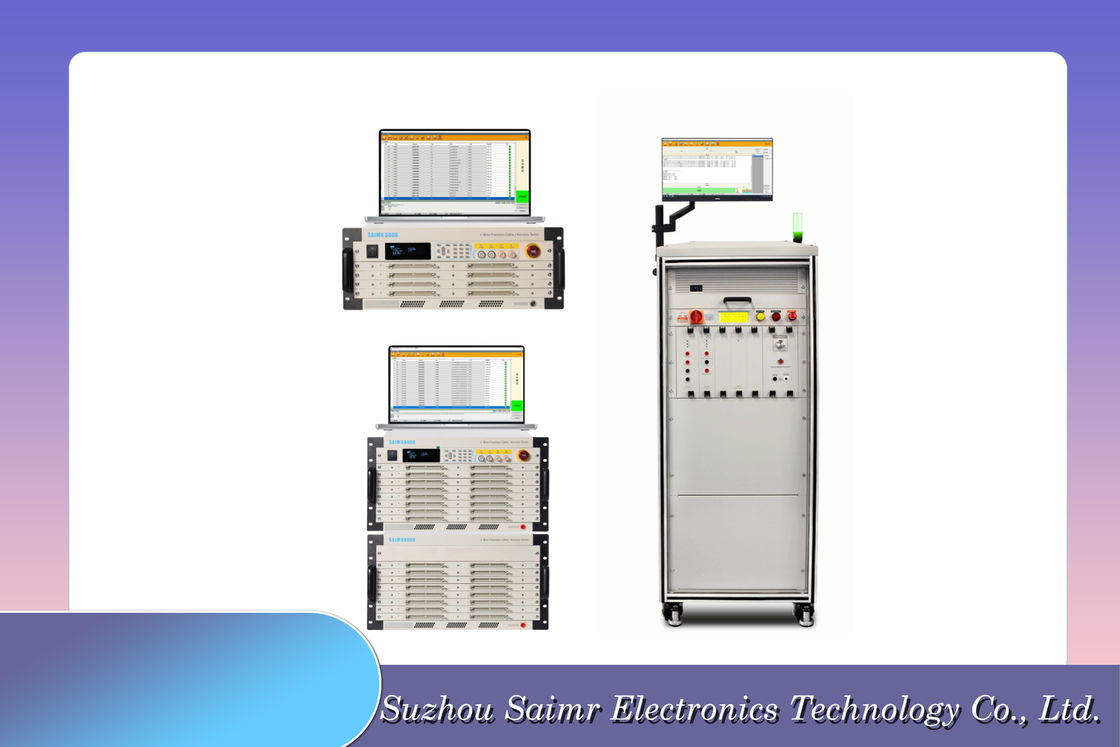

EV Charger CableTesting Equipment

Product Description:

EV Charger CableTesting Equipment is a state-of-the-art electric car charger testing system that is designed to analyze and evaluate the performance of electric vehicle charging equipment. It is an essential tool for electric vehicle manufacturers, charging station operators, and maintenance technicians to ensure the safety and reliability of their charging equipment.

EV Charger CableTesting Equipment uses the four-wire test mode, which is the most accurate and reliable method for measuring electrical parameters in a circuit. This test mode provides precise and consistent results, making it ideal for testing electric car chargers.

The IR (insulation resistance) test accuracy of the EV Charger Testing Equipment is unrivaled. It has a high precision of ±2% for measurements between 500kΩ to 10GΩ and a ±5% accuracy for measurements between 500kΩ to 10MΩ. For measurements above 10GΩ, the accuracy is ±10%. This level of accuracy ensures that any faults or defects in the insulation of the electric car charger can be detected and resolved promptly.

EV Charger CableTesting Equipment can perform IR tests within a range of 500kΩ to 10GΩ, with a voltage range of 10V to 1000V. This wide range makes it suitable for testing different types of electric car chargers, regardless of their voltage requirements. The accuracy of the IR test is ±2%, ensuring that any potential insulation issues can be identified and addressed.

With its advanced features and high precision, the EV Charger Testing Equipment is the perfect tool for analyzing and evaluating the performance of electric vehicle charging equipment. Get yours today and ensure the safety and reliability of your electric car chargers.

Keywords: Electric Car Charger Testing System, Electric Vehicle Charging Equipment Analyzer, Charger Performance Analyzer

Features:

• Product Name: EV Charger Testing Equipment
• Test Mode: Four- Wire Test
• DC leakage current test: 0.01mA-6mA/Step 0.01mA
• IR Test: 500kΩ-10GΩ(10V-1000V)
• AC withstand voltage test: 10V-4000V(Optional 5000V)/Step 10mA
• Conductance test (MAX40V DC, 0.1mA-2A): 1kΩ To 10MΩ/±2%
• Charger Quality Assurance Tool
• Electric Vehicle Charging Equipment Analyzer
• EV Charging Station Testing Device

Technical Parameters:

Applications:

The product is officially named SAIMR8000 High Voltage Wire/Cable Harness Tester.

The SAIMR8000 High Voltage Wire/Cable Harness Tester comes with the following standard configuration:

• User Manual U Disk
• Power Cord
• Network Cable
• Inspection Pen

Customization:

• Brand Name: SAIMR
• Model Number: SAIMR8000
• Place of Origin: CHINA
• Certification: CE, ISO9001
• Minimum Order Quantity: 1 SET
• Price: To be negotiated
• Packaging Details: Packing in wooden crates
• Delivery Time: To be negotiated
• Payment Terms: To be negotiated
• Supply Ability: To be negotiated
• Power Supply: 220V
• Storage: Depending on computer memory
• Product Name: SAIMR8000 High Voltage Wire/Cable Harness Tester
• IR Test: 500kΩ-10GΩ (10V-1000V)
• IR Test Accuracy: ± 2%/± 5%/± 10%
