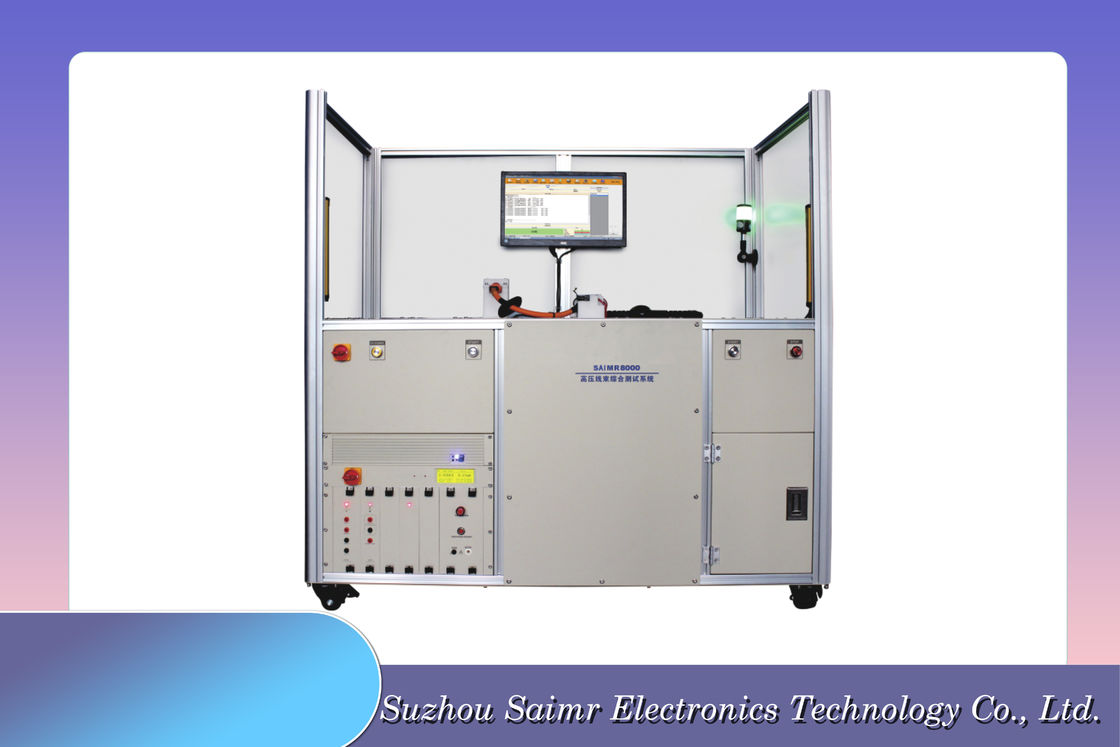

1500*800*900 / 1200*570*630mm EV Charger Testing Equipment Electric Car Charger Tester

Product Description:

The EV Charger Testing Equipment is a state-of-the-art product designed for testing and inspecting electric car chargers. As the market for electric vehicles continues to grow, it is important to ensure the safety and performance of charging equipment. This product serves as a reliable and efficient solution for conducting comprehensive tests on EV charger systems.

• DC Resistance Test: The EV Charger Testing Equipment offers high accuracy DC resistance testing with a range of <100mΩ to 1kΩ. With a precision of ±1% (1μΩ), this product can accurately detect even the slightest changes in resistance.
• Dimensions: The product is available in two sizes - 1500*800*900mm and 1200*570*630mm, making it suitable for use in different testing environments.
• Weight: The compact design of the EV Charger Testing Equipment allows for easy transportation and installation. It weighs only 50/60kg, making it a portable and convenient solution for on-site testing.
• DC Withstand Voltage Test: This product offers a versatile functionality with a DC withstand voltage testing range of 10V-5000V (optional 6000V) and a step of 10mA. It can effectively detect any potential breakdown or failure in the charger system.
• IR Test: The EV Charger Testing Equipment also features an insulation resistance (IR) test with a range of 500kΩ-10GΩ and a voltage range of 10V-1000V. This test helps to evaluate the overall insulation performance of the charger system.

The EV Charger Testing Equipment is a reliable and efficient solution for testing and inspecting electric car chargers. Here are some reasons why it is the best choice for your testing needs:

• High Accuracy: With its precise testing capabilities, the EV Charger Testing Equipment ensures accurate and reliable results.
• Compact Design: The compact and lightweight design of the product makes it easy to transport and install, saving time and effort during testing.
• Easy Operation: The product is user-friendly and easy to operate, making it suitable for both experienced technicians and beginners.
• Versatile Functionality: The EV Charger Testing Equipment offers a wide range of testing options, making it suitable for different types of EV chargers.

Overall, the EV Charger Testing Equipment is a must-have for any electric car charger manufacturer, ensuring the safety and performance of their products. With its high accuracy, compact design, easy operation, and versatile functionality, it is the best solution for EV charger testing needs.

Features:

• Product Name: EV Charger Testing Equipment
• Storage: Depending On Computer Memory
• DC withstand voltage test: 10V-5000V(Optional 6000V)/Step 10mA
• Points: 32/64/128/256...20480PIN
• Power supply: 220V
• DC leakage current test: 0.01mA-6mA/Step 0.01mA
• Electric Car Charger Testing System
• EV Power Supply Tester
• Charger Quality Assurance Tool

Technical Parameters:

Applications:

Brand Name: SAIMR

Model Number: SAIMR7000

Place of Origin: CHINA

Certification: CE, ISO9001

Minimum Order Quantity: 1 SET

Price: To be negotiated

Packaging Details: Packing in wooden crates

Delivery Time: To be negotiated

Payment Terms: To be negotiated

Supply Ability: To be negotiated

The SAIMR7000 EV Charger Testing Equipment is a high-quality and reliable tool designed for electric car manufacturers and charging station operators to ensure the performance and safety of their chargers. This product is manufactured by SAIMR, a leading brand in the field of electric vehicle testing equipment, and is trusted by customers all over the world.

The SAIMR7000 is a versatile electric vehicle charger testing system that can be used for various types of chargers, including AC and DC chargers. It is an essential tool for charger quality assurance and can greatly improve the efficiency and accuracy of testing processes. With the SAIMR7000, users can quickly and accurately detect any potential defects or malfunctions in their chargers, ensuring that only high-quality and safe chargers are delivered to the market.

The EV Charger Testing Equipment is suitable for testing both home charging stations and public charging stations, making it a valuable tool for manufacturers and operators. It can be used in various scenarios, such as factory production lines, testing laboratories, and service centers.

One of the key features of the SAIMR7000 is its conductance test, which can measure the maximum 40V DC and 0.1mA-2A. This test can detect the resistance of the charger from 1kΩ to 10MΩ with an accuracy of ±2%. Additionally, the DC withstand voltage test can be adjusted from 10V to 5000V, with an optional 6000V, and a step of 10mA. The DC resistance test accuracy is also impressive, with ±1% for resistance below 100mΩ and ±1% for resistance between 100mΩ to 1kΩ.

The SAIMR7000 is designed with user-friendliness in mind. It has a clear and easy-to-use interface, and users can choose from different testing modes according to their needs. The system also comes with a built-in memory function, allowing users to save and recall test data for future reference.

For users with high-volume testing needs, SAIMR also offers the SAIMR8000 High Voltage Wire/Cable Harness Tester, which has a capacity of 32/64/128/256...20480PIN points. This tester is perfect for manufacturers with large-scale production lines and can greatly improve testing efficiency and accuracy.

In summary, the SAIMR7000 EV Charger Testing Equipment is an essential tool for electric car manufacturers and charging station operators. With its advanced features, user-friendliness, and high-quality performance, it is a must-have for ensuring the safety and efficiency of electric vehicle chargers. Contact SAIMR today to learn more about this product and how it can benefit your business.

Customization:

Brand Name: SAIMR

Model Number: SAIMR7000

Place of Origin: CHINA

Certification: CE,ISO9001

Minimum Order Quantity: 1 SET

Price: To be negotiated

Packaging Details: Packing in wooden crates

Delivery Time: To be negotiated

Payment Terms: To be negotiated

Supply Ability: To be negotiated

Power supply: 220V

Diode/Zener diode: 0-40V/0.1mA/1mA

DC resistance test Accuracy: ＜100mΩ:±1%(1μΩ)/ 100mΩ-1kΩ:±1%

Solenoid valve: 50mA-2A 0.2-40V (continuous/pulsed)

Other Function: Switch Test

Our EV Charger Testing Equipment, model SAIMR7000, is the perfect solution for ensuring the quality and safety of your EV chargers. With our customized service, you can be confident that your chargers meet all necessary standards and regulations.

Our SAIMR8000 is specifically designed for EV charger inspection, making it the ideal device for testing and verifying the functionality and safety of your chargers. Our customized service ensures that the testing equipment meets your specific needs and requirements.

The SAIMR8000 is a versatile and accurate testing machine for EV chargers. Our customized service allows for a tailored solution to meet your unique testing needs. With our equipment, you can be confident in the quality and reliability of your EV chargers.

FAQ:

 Q: What are the applications of high-voltage wiring harness comprehensive test systems in the military industry?

A: High-voltage wiring harness comprehensive test systems have a wide range of applications in the military industry, including but not limited to the following aspects:

1. Military vehicles and equipment: Used to test high-voltage wiring harnesses to ensure their reliability and safety in harsh environments.

2. Weapon systems: Can be used to test the high-voltage wiring harness of missiles, rockets, artillery and other weapon systems to ensure their normal operation in high-intensity combat environments.

3. Communication and electronic equipment: Used to test high-voltage wiring harnesses to ensure the stability of signal transmission and anti-interference ability.

4. Aerospace and aviation fields: Can be used to test the high-voltage wiring harness of satellites, spacecraft, aircraft and other equipment to ensure their normal operation under extreme conditions.

5. Military power systems: Used to test high-voltage wiring harnesses to ensure the safety and reliability of military power supplies.

Q: Why are high-voltage wiring harness comprehensive test systems so important in the military industry?

A: High-voltage wiring harness comprehensive test systems are very important in the military industry because they can ensure the performance, reliability and safety of military equipment. Under harsh environmental conditions such as high temperature, low temperature, vibration, and humidity, high-voltage wiring harnesses may fail, which may lead to serious consequences. By using high-voltage wiring harness comprehensive test systems for testing, potential problems can be detected in advance, and repairs or replacements can be made in a timely manner, thereby reducing risks and ensuring the smooth progress of military tasks.
