Medium Voltage Wiring Harness Tester SAIMR6000
Medium-voltage Wiring Harness Tester
1.Features

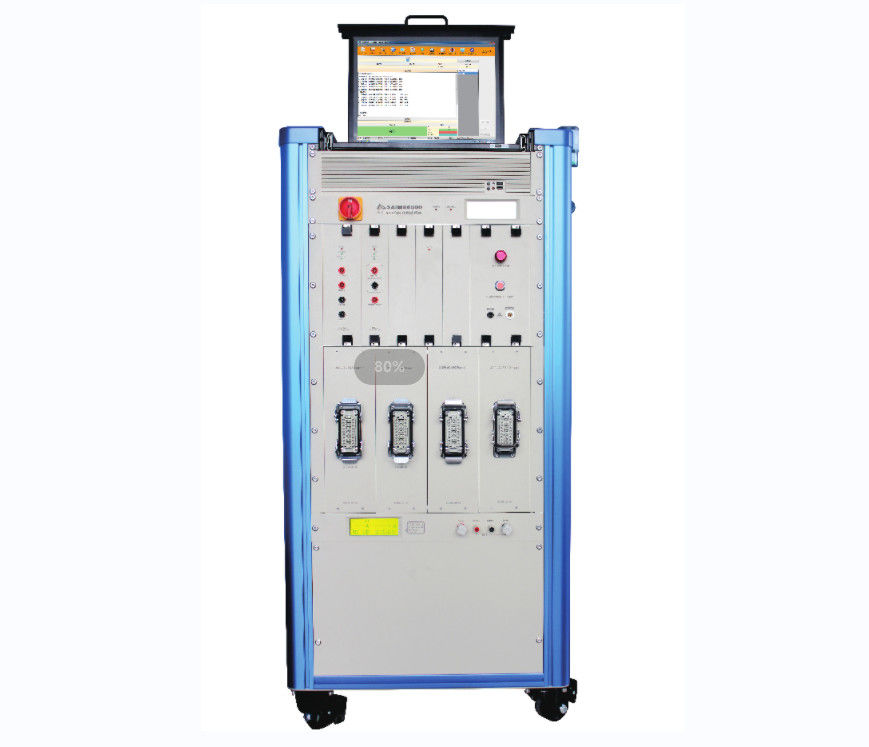

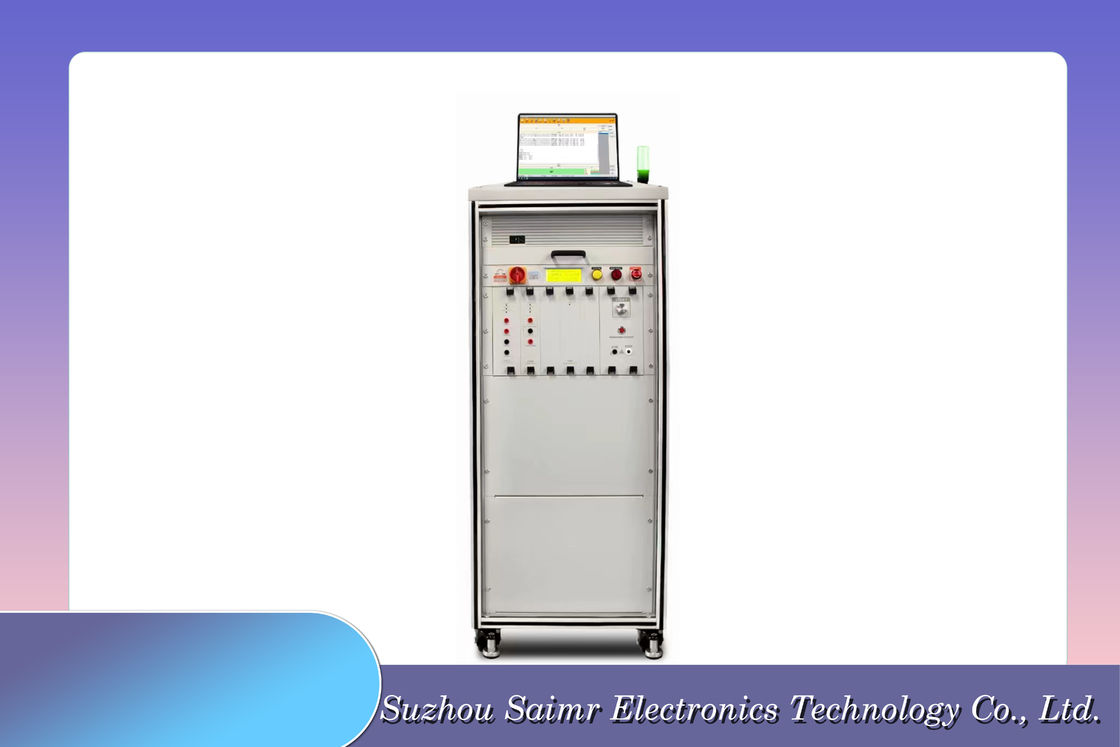

The medium-voltage wiring harness tester with the model SAIMR6000-256P is a product with high accuracy and reliable quality, which is sold at home and abroad. The main features of this instrument are:
- Advanced functions: support precise 4-wire measurement, programmable continuous testing, automatic finding, automatic diagnosis, self-calibration and zeroing, test scanning mode can be switched automatically/short circuit scanning.
- Convenient operation: pure computer-side operation, test data can be stored on a computer, test reports can be printed, and bar codes can be automatically printed after testing. In addition, the equipment adopts a cabinet-type architecture with a roller, which is easy to move, and can be freely combined according to the output of the production line.
- Test items: including phase sequence, conductivity resistance, insulation and voltage resistance, plug and unplug gun switch detection, resistance, inductance, capacitance and diode, etc.
- Test method: both ends of the test object must be connected to the fixture. If only one end has a connector, the other end uses a clip or probe to contact and connect to the test fixture.
- Test requirements: There are indicator lights and audible alarms during the test, and there are three ways to start the test: barcode scanning on the product, computer-side test button, and fixture-side start button. Exposed wires have protective covers, and the test fixture and control box are connected using a quick plug, making it easy to replace the test fixture quickly. This instrument is widely used in energy charging gun tester, mode two functional test system, new energy PDU electronic control box tester, automotive door panel wiring harness test system, automotive connector professional test equipment, motor servo inverter anchor point tester, power supply inverter test system, wire connector tester, conduction machine, coil interlayer tester, multi-channel high-voltage machine and other fields.
2.Application
- FPC Flexible circuit board
- Medium voltage harness testing
- Connectors, wires, cables
- Energy storage battery, power battery CCS, integrated busbar
3.Specification
| Medium Voltage test |
SAIMR6000 |
| Test Mode |
4-wire or 2-wire (mixed test) |
| Number of Points |
32/64/128/256…20480 points |
| Test Project |
Test Range |
Test Accuracy |
| OS Test (Voltage 5V) |
2 kΩ-200 kΩ (optional 20 kΩ -1000 kΩ) |
±5% |
| Insulation Resistance Test |
1MΩ-50GΩ (30V-2000V) |
1MΩ~100MΩ: ±2% |
| 100MΩ~ 1GΩ: ±5% |
| 1GΩ~ 50GΩ: ±10% |
| DC Resistance Test |
0.1Ω-1MΩ |
<100k: ±1% |
| >100k: ±5% |
| Outer Four-wire DC Resistance Test |
10μΩ~100Ω |
±0.2%+5μΩ |
| Four-wire NTC Test (10k, 100k) |
Temperature Judgment (accuracy 0.1°C) |
Users can self-defined RT table for resistance and temperature judgment |
| Resistance Judgment (accuracy 10k: 1% 100k: 5%) |
The resistance value can be judged according to the real -time temperature of the environment |
| Comparison Judgment (accuracy 0.1°C) |
Maximum resistance difference between tested and standard parts (Range) |
| AC Hi-pot Test |
30V-2000V |
±3% |
| DC Hi-pot Test |
30V-3000V |
±3% |
| AC Leakage Current Test |
1μA-10mA |
±3% |
| DC Leakage Current Test |
0.1μA-5mA |
±3% |
| Dimensions (in mm) |
483*265*510 (1024P) |
483*183*510 (512P) |
| Maximum Weight (in kg) |
26 |
18 |
| Standard Configuration |
User’s manual in U disk, power cord, network cable, port adapter board, test line, patrol pen. |
| Optional Configuration |
Insulation standard resistance, conduction standard resistance, industrial computer, desktop computer, monitor, mouse, keyboard, speaker. |
