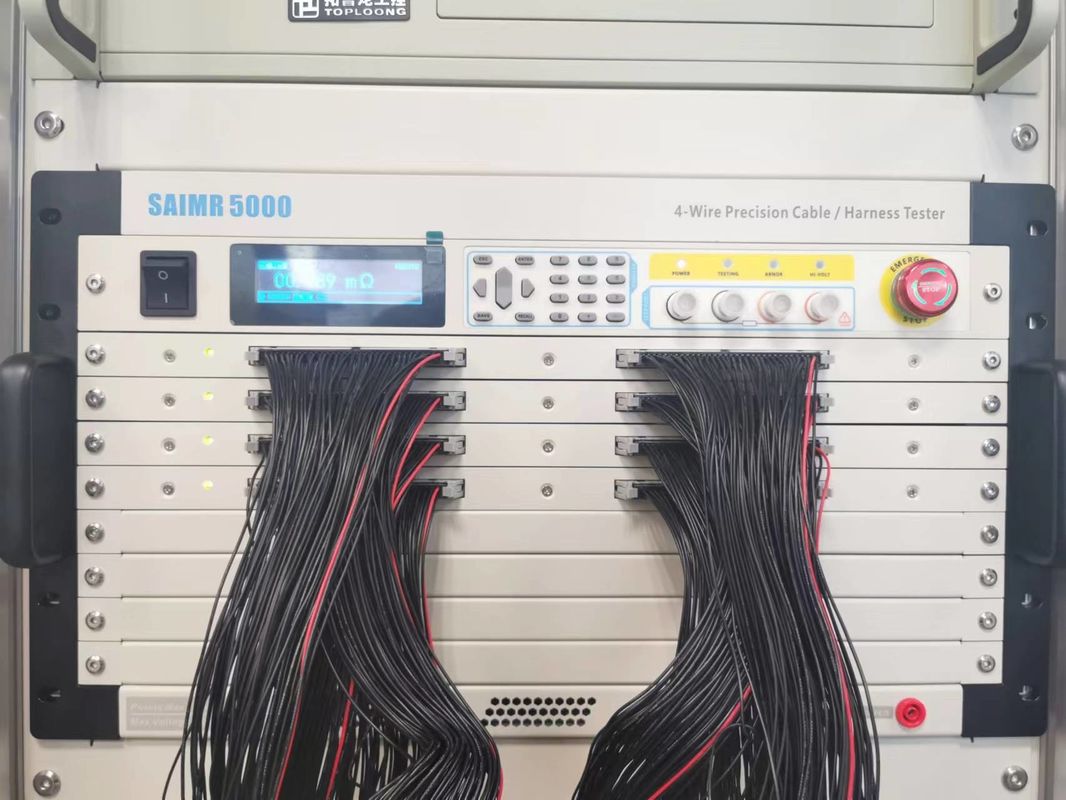

Accurate Diode / Zener Diode Automatic Cable Harness Tester 220V AC

Accurate Diode / Zener Diode Automatic Cable Harness Tester 220V AC

Zener Diode Automatic Cable Harness Tester

Accurate Diode Automatic Cable Harness Tester

Cable Harness Tester 220V AC

Place of Origin:

CHINA

Brand Name:

SAIMR

Certification:

CE,ISO9001

Model Number:

SAIMR5000

Contact Us

Request A Quote
Product Details
IR Test:
1MΩ-10GΩ(30V-1500V)
Product Name:
SAIMR5000
Four-wire DC Resistance Test:
10μΩ-100Ω
Points:
128/256/512/1024/...20480
Power Source:
Electric
DC Leakage Test:
0.1μA-5mA
AC Leakage Test:
1μA-10mA
Power Supply:
220V AC
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
To be negotiated
Packaging Details
Packing in wooden crates
Delivery Time
To be negotiated
Payment Terms
To be negotiated
Supply Ability
To be negotiated
Product Description

Accurate Diode/Zener Diode and DC Leakage Testing with Automatic Cable Harness Tester



Automatic Cable Harness Tester

Product Description:

Automatic Cable Harness Tester

The Automatic Cable Harness Tester is a state-of-the-art product designed to efficiently test cable harnesses for various industries. It is a fully automated system that can perform a range of tests with high accuracy and reliability. This product is perfect for companies looking to increase their productivity and ensure the quality of their cable harnesses.

Product Overview

The Automatic Cable Harness Tester is an advanced testing instrument that can quickly and accurately test cable harnesses for any potential defects. It is designed to save time and effort, as well as reduce human errors that may occur during manual testing. This product is suitable for a variety of cable harnesses used in industries such as automotive, aerospace, and electronics.

Key Features
  • Automatic Wiring Assembly Tester: This product is equipped with an automatic wiring assembly system that can efficiently test cable harnesses with minimal human intervention.
  • Automated Wire Harness Tester: The Automatic Cable Harness Tester is a fully automated system that can perform a range of tests, including DC Withstand Voltage Test, Four-wire DC Resistance Test, and more.
  • Smart Wiring Harness Testing Machine: This product is equipped with advanced technology and intelligent software that can quickly detect any abnormalities or defects in the cable harnesses.
  • Cable Harness Testing Instrument: The Automatic Cable Harness Tester is a sophisticated instrument designed to provide accurate and reliable test results for cable harnesses.
Product Specifications
  • DC Withstand Voltage Test: This product can perform DC Withstand Voltage Test in the range of 30-1500V, ensuring the safety and durability of the cable harnesses.
  • Display: The Automatic Cable Harness Tester comes with a high-resolution PC display, providing clear and detailed test results.
  • Four-wire DC Resistance Test: With a range of 10μΩ-100Ω, this product can accurately measure the resistance of the cable harnesses.
  • Weight: The Automatic Cable Harness Tester has a weight of 25/17kg, making it portable and easy to move around.
  • Dimensions: This product has dimensions of 483*265*510/483*183*510, making it compact and space-saving.

The Automatic Cable Harness Tester is a valuable investment for companies looking to improve the quality and efficiency of their cable harness testing process. With its advanced features and accurate results, this product is a must-have for any industry that uses cable harnesses. Get your hands on the Automatic Cable Harness Tester today and take your testing process to the next level!



Features:

  • Product Name: SAIMR5000
  • Four-wire DC Resistance Test: 10μΩ-100Ω
  • Operating Temperature: 0-40°C
  • AC Leakage Test: 1μA-10mA
  • Points: 128/256/512/1024/...20480

Key Features:

  • Automatic Wiring Assembly Tester
  • Robotic Wire Harness Verification Equipment
  • Ensures high quality and efficiency in the production of cable harnesses
  • Capable of testing four-wire DC resistance from 10μΩ to 100Ω
  • Can perform AC leakage tests ranging from 1μA to 10mA
  • Operates efficiently in temperatures from 0-40°C
  • Offers a wide range of testing points, starting from 128 and increasing up to 20480
  • Provides accurate and reliable results for quality assurance
  • Saves time and labor costs with its automatic testing capabilities
  • Highly customizable to fit the specific testing needs of different cable harnesses


Technical Parameters:

Product Name Automatic Cable Harness Tester
Model Number SMR
Type Cable/Wire Harness Tester
Weight 25/17kg
Power Supply 220V AC
Display PC
DC Resistance Test 0.1Ω-1MΩ
DC Withstand Voltage Test 30-1500V
Diode/Zener Diode Test 0-10V/0.1mA/1mA
Four-wire DC Resistance Test 10μΩ-100Ω
OS Test (5V) 2kΩ-200kΩ (optional 20kΩ-1000kΩ) / ±5%
IR Test 1MΩ-10GΩ (30V-1500V)
Features Smart Wiring Harness Testing Machine, Automatic Wiring Assembly Tester, Automated Wire Harness Tester


Applications:

Automatic Cable Harness Tester
Brand Name: SAIMR
Model Number: SAIMR5000
Introduction:

The SAIMR5000 Automatic Cable Harness Tester is a top-of-the-line product developed by SAIMR, a leading manufacturer of testing equipment in China. This product is designed to ensure the quality and functionality of cable harness assemblies, making it an essential tool for various industries such as automotive, aerospace, and electronics.

Application:

The SAIMR5000 is perfect for testing cable harness assemblies used in various applications such as:

  • Automotive wiring systems
  • Aerospace and aviation wiring systems
  • Electrical appliances and electronic devices
  • Machinery and industrial equipment
  • Telecommunication systems
Features:
  • Automatic wiring assembly testing
  • Remote-controlled cable harness testing
  • Highly accurate testing results
  • Easy to use interface
  • Compact design for space-saving
  • Highly durable and reliable
Specifications:
  • Operating System Test (5V): 2kΩ-200kΩ (optional 20kΩ-1000kΩ)/±5%
  • Operating Temperature: 0-40°C
  • Dimensions: 483*265*510/483*183*510
  • Power Supply: 220V AC
  • DC Resistance Test: 0.1Ω-1MΩ
Certifications:

The SAIMR5000 is certified with CE and ISO9001, ensuring that it meets international quality and safety standards.

Packaging and Delivery:

The SAIMR5000 is carefully packed in wooden crates to ensure its safety during transportation. Delivery time and payment terms can be negotiated based on the customer's requirements.

Minimum Order Quantity:

The minimum order quantity for the SAIMR5000 is 1 set, making it accessible for various businesses and industries.

Price and Supply Ability:

The price for the SAIMR5000 can be negotiated based on the customer's needs and requirements. Our supply ability is also flexible and can be negotiated.

Experience the Efficiency and Accuracy of SAIMR5000 Automatic Cable Harness Tester!


FAQ:


Accurate Diode / Zener Diode Automatic Cable Harness Tester 220V AC 0Accurate Diode / Zener Diode Automatic Cable Harness Tester 220V AC 1Accurate Diode / Zener Diode Automatic Cable Harness Tester 220V AC 2Accurate Diode / Zener Diode Automatic Cable Harness Tester 220V AC 3
  • Q: What is the brand name of this product?
  • A: The brand name of this product is SAIMR.
  • Q: What is the model number of this product?
  • A: The model number of this product is SAIMR5000.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in China.
  • Q: Is this product certified?
  • A: Yes, this product is certified with CE and ISO9001.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity for this product is 1 SET.
  • Q: What is the price of this product?
  • A: The price of this product is to be negotiated.
  • Q: How is this product packaged?
  • A: This product is packed in wooden crates.
  • Q: What is the estimated delivery time for this product?
  • A: The delivery time for this product will be negotiated.
  • Q: What are the payment terms for this product?
  • A: The payment terms for this product will be negotiated.
  • Q: What is the supply ability for this product?
  • A: The supply ability for this product will be negotiated.

  •
