Automatic Low Voltage Cable Harness Tester Machine DC 30-1500V

Low Voltage Cable Harness Tester DC 30V

Low Voltage Cable Harness Tester DC 1500V

Cable Harness Tester Machine DC 30V

Place of Origin:

CHINA

Brand Name:

SAIMR

Certification:

Model Number:

SAIMR5000

Request A Quote

Automatic Low Voltage Cable Harness Tester Machine DC 30-1500V

Product Details

Application:

Cable Harness Testing

Display:

LCD

Operating Temperature:

0-40 Degrees Celsius

DC:

30-1500V

Type:

Automatic

Dimensions:

483*265*510 (1024P)/483*183*510 (512P)

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

3500-6000$ per set

Delivery Time

30 work days

Payment Terms

T/T

Supply Ability

200set/year

CCS High Voltage Wiring Harness Comprehensive Test System

Get Best Price

Medium And High Voltage Wiring Harness Comprehensive Test System

Get Best Price

Medium Voltage Wiring Harness Comprehensive Test System

Get Best Price

FPC / CCS Medium And High Voltage Wiring Harness Test System

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

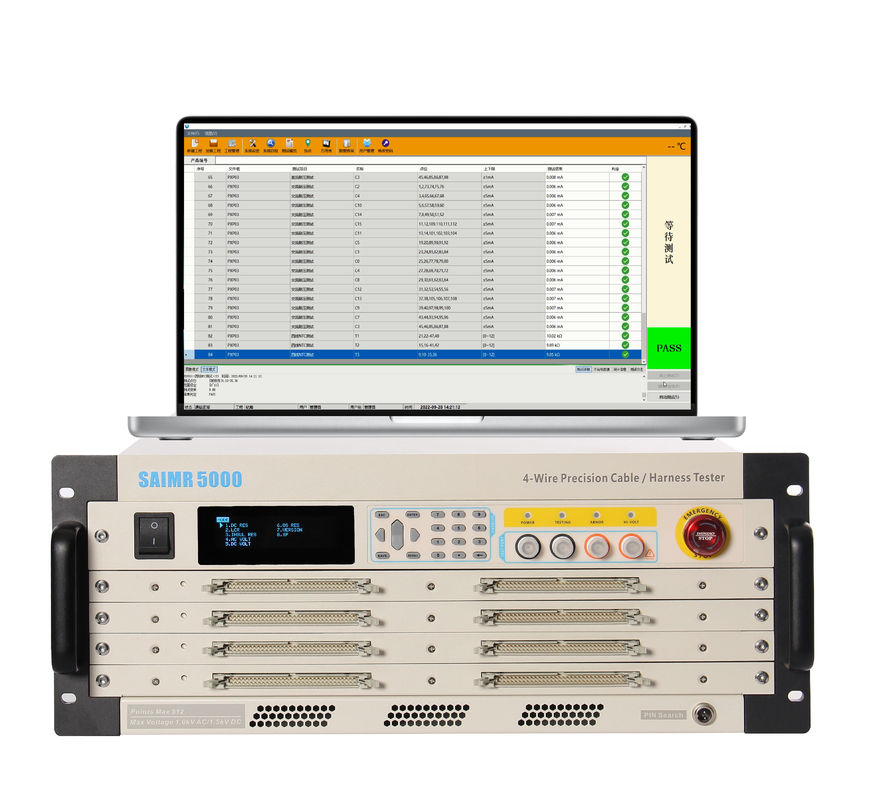

The Low Voltage Wire Harness Comprehensive Test System SAIMR5000 Automatic

SAIMR5000 Automatic Cable Harness Tester

1.DESCRIPTION

The Low-Voltage Wire Harness Comprehensive Test System of Saimr Electronics Technology Co., Ltd. in Suzhou, referred to as SAIMR5000, is a wire harness tester used for rapid inspection of various complex wire harnesses. This system can accurately detect open circuits, short circuits, and misplacements in the tested wire harness, as well as conduction, voltage withstand, insulation, LCR, and diode one-sided testing. The accompanying upper computer test software can help users quickly detect problems in the wire harness. This system can meet the requirements of production lines, incoming inspection, and laboratory measurement.

2.FEATURE

The Low-Voltage Wire Harness Comprehensive Test System SAIMR5000 of Suzhou Saimr Electronics Technology Co., Ltd. has the following characteristics: - It can accurately detect open circuits, short circuits, and misplacements in the tested wire harness, as well as conduction, voltage withstand, insulation, LCR, and diode one-sided testing. - The accompanying upper computer test software can help users intuitively see the problems in the wire harness. - It can meet the requirements of production lines, incoming inspection, and laboratory measurement.

3.Specification

Low Voltage test	SAIMR5000
Test Mode	4- wire or 2-wire (mixed test)
Number of Points	128/256/512/1024…20480
Test Project	Test Range	Test Accuracy
OS Test (Voltage 5V)	2 kΩ -200 kΩ (optional 20 KΩ -1000 KΩ)	±5%
Insulation Resistance Test	1MΩ-10 GΩ(30V-1500V)	1MΩ~100MΩ: ±2%
		100MΩ~ 1GΩ: ±5%
		1GΩ~ 10GΩ: ±10%
DC Resistance Test	0.1Ω-1MΩ	<100k: ±1%
DC Resistance Test	0.1Ω-1MΩ	>100k: ±5%
Internal Four-wire DC Resistance Test	0.1Ω-1MΩ	±0.5%+0.05Ω
Outer Four-wire DC Resistance Test	10μΩ~100Ω	±0.2%+5μΩ
Four-wire NTC Test (10k, 100k)	Temperature Judgment (accuracy 0.1°C)	Users can self-defined RT table for resistance and temperature judgment
	Resistance Judgment (accuracy 10k: 1% 100k: 5%)	The resistance value can be judged according to the real -time temperature of the environment
	Comparison Judgment (accuracy 0.1°C)	Maximum resistance difference between tested and standard parts (Range)
AC Hi-pot Test	30V-1000V	±3%
DC Hi-pot Test	30V-1500V	±3%
AC Leakage Current Test	1μA-10mA	±3%
DC Leakage Current Test	0.1μA-5mA	±3%
LCR Test	Frequency: 50Hz-10 kHz	100mΩ-20MΩ ±2%
	Test type: resistance / capacitor / inductance / impedance / conduction / conductance	10pF-100μF ±2%
	Test level: 0.1V-1.5V	10nH~100H ±2%
Diodes / Zener Diodes	0-10V	0.1 mA / 1 mA (test signal)
Dimensions (in mm)	483265510 (1024P)	483183510 (512P)
Maximum Weight (in kg)	25	17
Standard Configuration	User’s manual in U disk, power cord, network cable, port adapter board, test line, patrol pen.
Optional Configuration	Insulation standard resistance, conduction standard resistance, industrial computer, desktop computer, monitor, mouse, keyboard, speaker.

4. APPLICATION

Automotive electronics
Aerospace
Energy storage, new energy batteries
Wiring harness line automation
