Product Description:
Product Overview

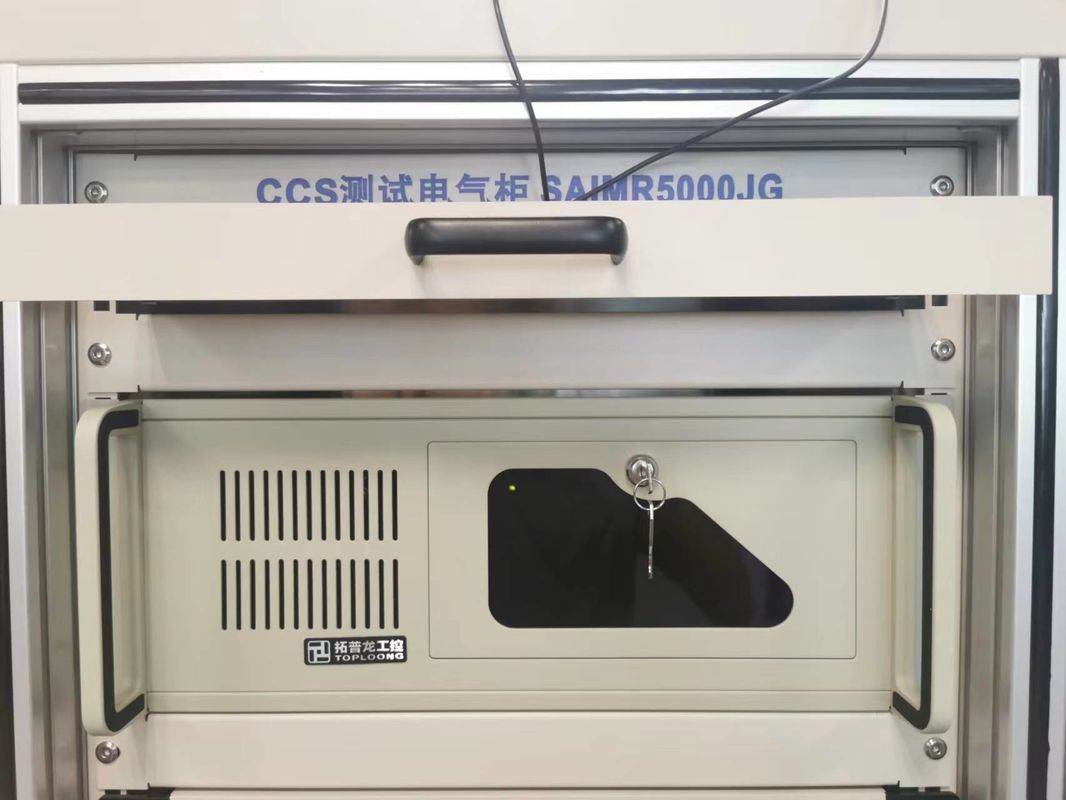

The Low Voltage Wire Tester - SAIMR5000 is a cutting-edge product designed to test the quality and safety of low voltage wires used in various electrical circuits. Whether you are a professional electrician or a DIY enthusiast, this tool is essential for ensuring the proper functioning of your low voltage circuits.
Weight
The SAIMR5000 is a lightweight and portable device, weighing only 25kg when fully assembled. However, for added convenience and ease of use, it can also be disassembled into two separate parts, weighing only 17kg each. This makes it perfect for on-site testing and easy transportation.
Test Mode
This low voltage wire analyzer tool offers two test modes - 4-wire and 2-wire (mixed test). The 4-wire test mode is ideal for accurate and precise measurements, while the 2-wire mode is useful for quick and convenient testing. Users can easily switch between the two modes depending on their testing needs.
Advanced Testing Capabilities
The SAIMR5000 is equipped with advanced testing capabilities to ensure the safety and quality of low voltage wires. It has the ability to perform AC leakage current tests in the range of 1μA to 10mA, providing accurate and reliable results. Additionally, it can conduct DC withstand voltage tests in the range of 30V to 1500V with an accuracy of ±3%, making it suitable for a wide range of low voltage circuits.
Product Name
The product is named SAIMR5000, which stands for "SAFETY AND INSULATION MEASUREMENT RESISTANCE 5000". This name reflects the main purpose and function of the product - to measure the resistance and ensure the safety of low voltage wires in various electrical circuits.
AC Leakage Current Test
The AC leakage current test is a vital feature of the SAIMR5000. It measures the amount of current that is leaking out of the circuit and can detect even the smallest amount of leakage, as low as 1μA. This is crucial for identifying any potential safety hazards and ensuring the proper functioning of the low voltage circuit.
DC Withstand Voltage Test
The DC withstand voltage test is another important function of the SAIMR5000. It checks the ability of the low voltage wire to withstand high voltage levels without breaking down. This test is essential for ensuring the safety and reliability of low voltage circuits, and the SAIMR5000 can perform this test within a wide voltage range of 30V to 1500V.
In conclusion, the Low Voltage Wire Tester - SAIMR5000 is a highly efficient and reliable wire voltage meter for low voltage circuits. With its lightweight design, advanced testing capabilities, and versatile test modes, it is an indispensable tool for any electrical professional or enthusiast. Trust the SAIMR5000 for all your low voltage wire testing needs and ensure the safety and quality of your circuits.
Features:
- Product Name: Low Voltage Wire Tester
- DC Resistance Test: 0.1Ω-1MΩ
- 4-wire NTC testing: Temperature Determination, Resistance Determination, Comparison Determination
- DC leakage current test: 0.1μA-5mA
- OS Test: 2kΩ-200kΩ
- DC withstand voltage test: 30V-1500V/±3%
- Low Voltage Cable Test Device
- Electrical Wire Voltage Detector
- Wire Voltage Meter for Low Voltage Circuits
Technical Parameters:
Project Management Function: It can manage and set project computer hard disk capacity according to different client projects.
1.1 New Project: Create a new project.
1.2 Load Project: Before testing, load an existing project first.
1.3 Project Management: Configure testing projects and testing parameters according to client requirements.
Network Segment Management: Multiple testing segments can be configured, and each testing segment uses different testing parameters.
2.1 Network Segment Management: Users can freely divide OS testing, insulation testing, voltage resistance testing, etc. into network segments to facilitate various flexible testing.
2.2 Test TerminalNaming: Users can name the test points for easier management.
System Function Modules:
3.1 System Self-Check: Check if the system functions are normal.
3.2 Point Finding: Display point information according to user selection.
3.3 Multimeter Function: Quickly perform various tests according to user selection for convenient debugging.
3.4 Self-Learning Function: The system automatically learns the conducting network in the current connection and automatically sets the network table and insulation table.
3.5 Temperature Acquisition Function: Acquire current temperature data.
Testing Functions:
4.1 Low-Voltage Testing: Conduct a conducting test one by one according to the configuration in the network table, displaying the test resistance value.
4.2 Insulation Testing: Conduct an insulation test one by one according to the configuration in the insulation table, displaying the insulation resistance. Users can choose a quick binary or custom method for testing.
4.3 Voltage Resistance Testing: Conduct a voltage resistance test one by one according to the configuration in the insulation table, displaying the leakage current value. Users can choose a quick binary or custom method for testing.
Data Storage and Query Functions:
5.1 Data Report Export Function: When each test is completed, a data report will be printed. The report format can be customized, supporting PDF and WORD format printing.
5.2 Database Storage: Data will be saved to the database after each test.
5.3 Database Query: Users can query historical data in the database and print data reports.
Barcode Printing Function: Custom barcodes can be created and printed according to the product.
User Management: The system supports three-level user management, namely administrators, programmers, and operators. Administrators can use all system functions; programmers can configure and manage projects; operators can only load projects and test.
Applications:
SAIMR Low Voltage Wire Tester
This is a low voltage cable test device designed and manufactured by SAIMR, a trusted brand in the electrical testing industry. The model number for this product is SAIMR5000 and it is proudly made in China with CE and ISO9001 certification.
With a minimum order quantity of 1 set, this low voltage wire tester is suitable for various applications in different industries. It is a versatile and essential tool for any electrician, maintenance personnel, or quality inspector.
Product Features:
- DC Leakage Current Test: 0.1μA-5mA
- OS Test Accuracy: ±5%
- AC Withstand Voltage Test: 30V-1000V/±3%
- DC Resistance Test: 0.1Ω-1MΩ
- OS Test: 2kΩ-200kΩ
The SAIMR Low Voltage Wire Tester is equipped with advanced technology that allows for accurate and reliable testing. It can detect minute changes in voltage and current, ensuring the safety and quality of electrical systems.
The portable voltage tester is designed for easy handling and operation. It is compact and lightweight, making it convenient to carry around for on-site inspections. The ergonomic design of the handle provides a comfortable grip for extended use.
This low voltage wire inspection probe is also equipped with a large LCD screen for clear and easy-to-read results. The screen displays the measured values in real-time, allowing for efficient and quick testing.
Application Scenarios:
The SAIMR Low Voltage Wire Tester can be used in a variety of situations, such as:
- Testing low voltage cables in residential, commercial, and industrial buildings
- Inspecting electrical systems in automobiles, boats, and other vehicles
- Quality control testing in manufacturing plants for electronic devices
- Maintenance and troubleshooting of electrical equipment and machinery
This product is also suitable for use in educational institutions, training centers, and research facilities to teach students and professionals about low voltage testing.
Packaging and Delivery:
The SAIMR Low Voltage Wire Tester is packed in sturdy wooden crates to ensure safe transportation. The delivery time can be negotiated according to the customer's needs and location. We offer flexible payment terms to accommodate different preferences.
Order Now:
To purchase the SAIMR Low Voltage Wire Tester, please contact us for a price quote. Our supply ability is negotiable to meet your demands. Trust SAIMR for high-quality, accurate, and reliable electrical testing products.
Customization:
Customized Service for SAIMR Low Voltage Wire Tester
Brand Name: SAIMR
Model Number: SAIMR5000
Place of Origin: CHINA
Certification: CE, ISO9001
Minimum Order Quantity: 1 SET
Price: To be negotiated
Packaging Details: Packing in wooden crates
Delivery Time: To be negotiated
Payment Terms: To be negotiated
Supply Ability: To be negotiated
Test Mode: 4-wire/2-wire (mixed test)
IR Test Accuracy:
1MΩ-100MΩ: ±2%
100MΩ-1GΩ: ±5%
AC leakage current test: 1μA-10mA
Points: 128/256/512/1024...20248PIN
DC Resistance Test Accuracy:
<100K: ±1%
>100K: ±5%
Introducing the SAIMR Low Voltage Wire Tester – the ultimate solution for testing low voltage wire circuits. With our customized service, you can ensure that your specific testing needs are met with precision and accuracy. Our product boasts the following attributes:
- Brand Name: SAIMR, a trusted name in the industry
- Model Number: SAIMR5000, the latest model with advanced features
- Place of Origin: Made in CHINA, adhering to strict quality standards
- Certification: CE and ISO9001 certified, ensuring compliance with international regulations
- Minimum Order Quantity: Only 1 SET required, making it accessible for all
- Price: Negotiable, allowing you to get the best deal
- Packaging Details: Packed in sturdy wooden crates for safe transportation
- Delivery Time: Flexible, to be negotiated according to your schedule
- Payment Terms: Negotiable, making it easier for you to make the purchase
- Supply Ability: Negotiable, ensuring that we can meet your demand
- Test Mode: 4-wire/2-wire (mixed test), giving you the flexibility to test in different modes
- IR Test Accuracy: With an accuracy of ±2% for 1MΩ-100MΩ and ±5% for 100MΩ-1GΩ, you can trust the results
- AC leakage current test: Able to test in the range of 1μA-10mA
- Points: Can test up to 20248PIN, perfect for high pin count circuits
- DC Resistance Test Accuracy: Accurate within ±1% for <100K and ±5% for >100K
Choose SAIMR for a reliable low voltage wire current tester with top-notch customized service. Contact us now to discuss your specific requirements and get a quote.
FAQ:
What is the Project Management Function?
It manages and sets the capacity of project computer hard disks according to different client projects.
How to create a new project?
Click the "New Project" button.
How to load an existing project?
Click the "Load Project" button before testing.
What can be configured in Project Management?
Configure testing projects and testing parameters according to client requirements.
