SAIMR5000/5000S Low Voltage Wire Tester Wire Harness Tester

1024 PIN Low Voltage Wire Tester

512 PIN Low Voltage Wire Tester

256 PIN wire harness tester

Place of Origin:

CHINA

Brand Name:

SAIMR

Certification:

CE,ISO9001

Model Number:

SAIMR5000

Request A Quote

Product Details

OS Test:

2kΩ-200kΩ

Optional Configuration:

Port Adapter Board, Test Cable, Computer, Temperature Probe, Multi-channel Temperature Module.

AC Withstand Voltage Test:

30V-1000V/±3%

DC Leakage Current Test:

0.1μA-5mA

Standard Configuration:

Instruction U Disk, Power Cord, Network Cable, Patrol Pen.

4-wire NTC Testing:

Temperature Determination, Resistance Determination, Comparison Determination

Weight:

25kg/17kg

Other Function:

Ambient Temperature, Point Detection Test, Four-wire Resistance Point Measurement.

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

To be negotiated

Packaging Details

Packing in wooden crates

Delivery Time

To be negotiated

Payment Terms

To be negotiated , T/T

Supply Ability

To be negotiated

durable Wire Harness Tester DC 30v-1500v

Get Best Price

SAIMR5000/5000S Low Voltage Wire Tester Wire Harness Tester

Get Best Price

1uA-10mA AC Test Automatic Cable Harness Tester For Diode/Zener Diode

Get Best Price

USB Drive Automatic Cable Harness Tester Precise Measurement

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

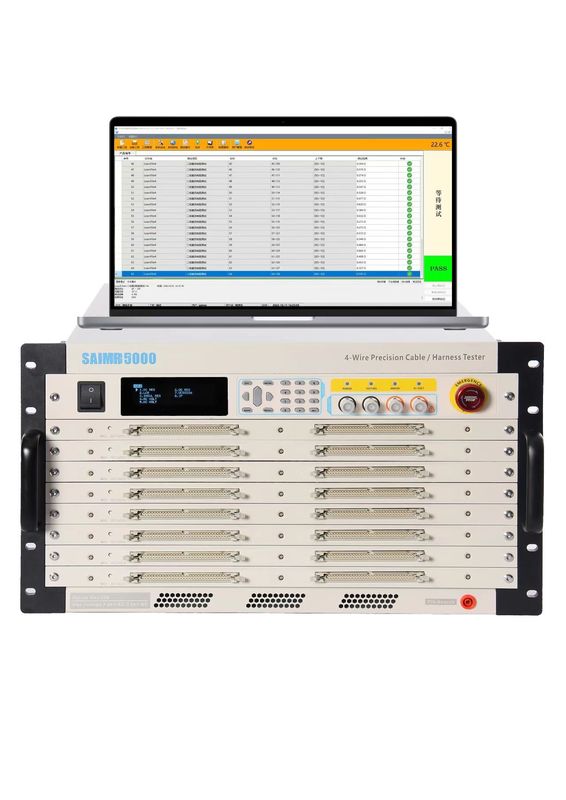

Low Voltage Wire Tester - SAIMR5000

Name: SAIMR5000/5000S Low Voltage Wire Tester Wire Harness Tester
Brand: Suzhou Saimr Electronics Technology Co., Ltd.
SKU: SAIMR5000
Price: Negotiable USD
Availability: InStock

Product Overview:

The SAIMR5000 is a state-of-the-art Multifunction Tester specially designed for testing low voltage wires in various applications. With its advanced features and customizable functions, this tester is an essential tool for any electrician or technician working with low voltage systems.

Technical Parameters:

Product Name	Low Voltage Wire Tester
Diode/Zener Diode	0-10V/0.1mA/1mA
IR Test	1MΩ-10GΩ(30V-1500V)
Test Mode	4-wire/2-wire(Mixed Test)
4-wire NTC Testing	Temperature Determination, Resistance Determination, Comparison Determination
Optional Configuration	Port Adapter Board, Test Cable, Computer, Temperature Probe, Multi-channel Temperature Module
Standard Configuration	Instruction U Disk, Power Cord, Network Cable, Patrol Pen
Points	128/256/512/1024...20248PIN
Customized Functions	Customized Functional Board
OS Test	2kΩ-200kΩ
Warranty	1 Year

SAIMR5000/5000S Low Voltage Wire Tester Wire Harness Tester 0
