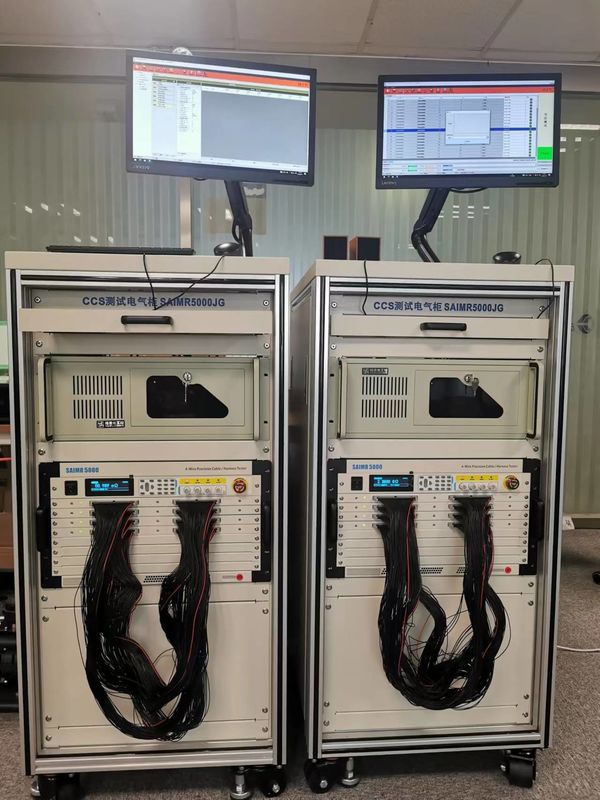

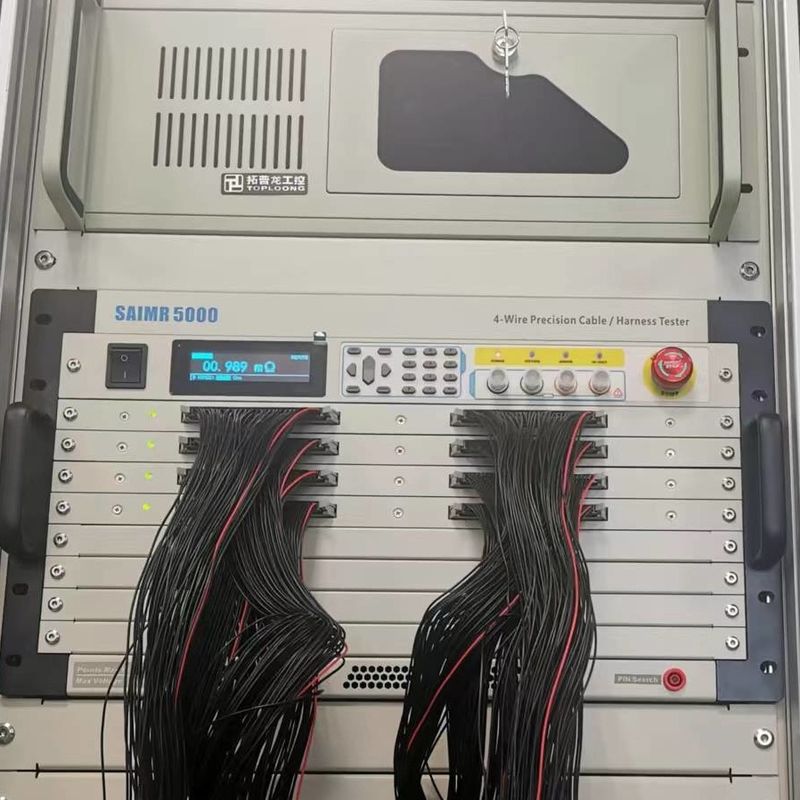

Automatic Cable Harness Tester-SAIMR5000S/SAIMR5000

Product Description:

The Automatic Cable Harness Tester is the latest product in the market for testing and verifying wire harnesses in various industries. This state-of-the-art robotic wire harness verification equipment is designed to perform accurate and efficient testing of cable assemblies, ensuring high-quality and reliable products for your customers.

• Display: PC
• Four-wire DC Resistance Test: 10μΩ-100Ω
• AC Leakage Test: 1μA-10mA
• Diode/Zener Diode: 0-10V/0.1mA/1mA
• LCR Test: 50Hz-10kHz

• Efficient and accurate testing: With its advanced technology, the Automatic Cable Harness Tester can perform a variety of tests quickly and accurately, saving time and labor costs for your business.
• Wide range of testing capabilities: This tester is capable of performing four-wire DC resistance test, AC leakage test, diode/zener diode test, and LCR test, making it a versatile and comprehensive tool for cable assembly testing.
• User-friendly interface: The tester features a PC display, making it easy to operate and monitor the testing process. It also provides detailed test results for analysis and troubleshooting.
• Highly reliable: This tester is designed with precision and durability in mind, ensuring consistent and dependable test results for every cable assembly.
• Cost-effective: By automating the testing process, the Automatic Cable Harness Tester can help reduce labor costs and minimize errors, ultimately saving your business money in the long run.

The Automatic Cable Harness Tester is suitable for a variety of industries, including automotive, aerospace, telecommunications, and more. It can be used for testing a wide range of cable assemblies, from simple wire harnesses to complex cable systems.

In summary, the Automatic Cable Harness Tester is an essential tool for any business that values quality and efficiency in their cable assembly production. With its advanced features and user-friendly interface, this automatic wiring assembly tester can help improve the overall performance and reliability of your products, giving you a competitive edge in the market.

Get your hands on the Cable Assembly Test System today and experience the benefits of automated testing for your business!

Features:

• Product Name: Automatic Cable Harness Tester
• DC Withstand Voltage Test: 30-1500V
• Dimensions: 483*265*510/483*183*510
• Operating Temperature: 0-40°C
• Standard configuration: USB Drive, Power Cord, Network Cable, Pointing Pen
• Four-wire DC Resistance Test: 10μΩ-100Ω
• Robotic Wire Harness Verification Equipment
• Automated Wire Harness Tester
• High Voltage Testing
• Compact Design

Technical Parameters:

Applications:

Brand Name: SAIMR

Model Number: SAIMR5000

Place of Origin: CHINA

Certification: CE,ISO9001

Minimum Order Quantity: 1 SET

Price: To be negotiated

Packaging Details: Packing in wooden crates

Delivery Time: To be negotiated

Payment Terms: To be negotiated

Supply Ability: To be negotiated

DC Resistance Test: 0.1Ω-1MΩ

Four-wire DC Resistance Test: 10μΩ-100Ω

Standard configuration: USB Drive, Power Cord, Network Cable, Pointing Pen

Power Source: Electric

Dimensions: 483*265*510/483*183*510

The Automatic Cable Harness Tester by SAIMR is a cutting-edge product designed specifically for testing and inspecting wiring assemblies in various industries. This automated wire harness tester is equipped with advanced technology and features to ensure accurate and efficient testing, making it an essential tool for any production line.

With its brand name SAIMR, this cable harness test system is trusted by many companies worldwide for its reliability and precision. Its model number SAIMR5000 indicates its superior quality and advanced capabilities.

Made in CHINA, this product meets international standards and has obtained CE and ISO9001 certification, ensuring its quality and safety. It is also available for purchase with a minimum order quantity of 1 SET, and the price can be negotiated according to the specific requirements of the buyer.

The Automatic Cable Harness Tester comes in a sturdy and secure packaging of wooden crates, ensuring that it reaches its destination in perfect condition. The delivery time can also be negotiated, making it convenient for the buyer to plan their production schedule.

One of the key features of this product is its ability to perform DC resistance tests ranging from 0.1Ω to 1MΩ and four-wire DC resistance tests from 10μΩ to 100Ω. This wide testing range makes it suitable for various types of wiring assemblies.

The standard configuration of the Automatic Cable Harness Tester includes a USB drive, power cord, network cable, and pointing pen. These accessories make it easy to operate and use the tester efficiently.

Powered by electricity, this tester has a compact design with dimensions of 483*265*510/483*183*510, making it easy to fit into any production line without taking up much space.

Overall, the Automatic Cable Harness Tester is an essential tool for any company involved in wiring assembly production. Its advanced technology, precision, and ease of use make it a valuable asset for ensuring the quality and reliability of wiring assemblies. Trust SAIMR and its SAIMR5000 model for efficient and accurate testing of your wiring assemblies.

Customization:

Brand Name: SAIMR

Model Number: SAIMR5000

Place of Origin: CHINA

Certification: CE,ISO9001

Minimum Order Quantity: 1 SET

Price: To be negotiated

Packaging Details: Packing in wooden crates

Delivery Time: To be negotiated

Payment Terms: To be negotiated

Supply Ability: To be negotiated

Dimensions: 483*265*510/483*183*510

Diode/Zener Diode: 0-10V/0.1mA/1mA

IR test: 1MΩ-10GΩ(30V-1500V)

OS test(5V): 2kΩ-200kΩ(optional 20kΩ-1000kΩ)/±5%

RH: 65%

SAIMR offers a customized service for our Automatic Cable Harness Tester SAIMR5000 to meet the specific needs of our customers. Our Smart Wiring Harness Testing Machine is designed to efficiently and accurately test wiring assemblies with ease.

With our Remote-Controlled Cable Harness Tester, users can easily operate the machine from a distance, making it convenient and safe to use. We understand the importance of tailored solutions, and our team will work closely with you to customize the features and specifications of the SAIMR5000 according to your requirements.

Our CE and ISO9001 certification guarantees that our product meets international quality standards, ensuring its reliability and durability. We have a minimum order quantity of 1 set, and our competitive pricing can be negotiated to suit your budget.

The SAIMR5000 comes in two size options, 483*265*510 and 483*183*510, allowing for flexibility in installation. It has a Diode/Zener Diode testing range of 0-10V/0.1mA/1mA and an IR testing range of 1MΩ-10GΩ (30V-1500V). The optional OS testing range for 5V is 2kΩ-200kΩ (or 20kΩ-1000kΩ) with an accuracy of ±5%. It also has a humidity range of 65%, making it suitable for various environments.

Contact us now to discuss your customized SAIMR Automatic Cable Harness Tester SAIMR5000 and experience efficient and reliable testing for your wiring assemblies.

FAQ:

1. What is the conduction test? What is its purpose?

The SAIMR5000 conduction test is used to detect whether the connections between the various wires in the wiring harness are normal, including checking for open circuits, shorts, and poor contacts. Its purpose is to ensure the conductivity and integrity of the wiring harness.

2. What is the function of the insulation resistance test?

The SAIMR5000 insulation resistance test is used to measure the insulation resistance of the wiring harness to assess the quality of the insulating material and prevent leakage. This test can detect problems such as aging, damage, or moisture in the insulating material, ensuring the safety of the wiring harness.

3. What is the purpose of the withstand voltage test?

The SAIMR5000 withstand voltage test is used to perform high-voltage tests on the wiring harness to check its withstand voltage capability at the rated voltage. This test can identify insulation defects, breakdowns, and flashovers in the wiring harness, ensuring normal operation in high-voltage environments.

4. What is the function of the current test?

The SAIMR5000 current test is used to measure the current passing through the wiring harness to verify its current-carrying capacity. This test can check aspects such as the conductivity of the wiring harness, overload protection, and current balance, ensuring the safe transmission of current.

5. What is the purpose of the resistance test?

The SAIMR5000 resistance test is used to measure the resistance values of the various wires in the wiring harness to check the conductivity of the wires. This test can identify problems such as open circuits, shorts, poor contacts, or abnormal resistance, ensuring the accuracy and stability of signal transmission.

These are just some common test items of the low-voltage wiring harness comprehensive test system. The specific test items may vary according to the application field, industry standards, and customer requirements of the wiring harness.

The SAIMR test system can be customized according to requirements to meet specific testing requirements.
