Wire Harness Testing Equipment for 30kg Load Capacity and DC Withstand Voltage Test 30V-4000V/±3%

Medium and High Voltage Wire Harness Testing Equipment

Product Description:

The Wire Harness Testing Equipment is a state-of-the-art product designed for electrical connector validation and cable assembly testing. It is equipped with advanced features that ensure accurate and reliable testing results, making it an essential tool for any electrical testing laboratory or manufacturing facility.

With a wide range of testing capabilities, this equipment is suitable for a variety of applications, including automotive, aerospace, and industrial electronics. It is designed to meet the highest industry standards and can be customized to meet specific testing requirements.

• AC withstand voltage test: With a voltage range of 30V-3000V and an accuracy of ±3%, this equipment is capable of conducting high voltage tests on electrical connectors and cable assemblies to ensure their safety and reliability.
• Color/Customizable: The Wire Harness Testing Equipment comes in a sleek black and white design, but can also be customized to match the branding of your company or laboratory.
• OS Test (5V): This feature allows for testing of electrical connectors and cable assemblies with resistances ranging from 2kΩ-200kΩ, with an accuracy of ±5%. This is crucial for detecting any potential faults or defects in the components.
• Four-wire DC resistance test: With a range of 10µΩ-100Ω and an accuracy of ±0.2%±5µΩ, this test measures the resistance of electrical connectors and cable assemblies, providing valuable information about their performance and quality.
• DC withstand voltage test: This feature allows for the testing of electrical connectors and cable assemblies with a voltage range of 30V-4000V and an accuracy of ±3%, ensuring their ability to withstand high voltage environments.

The Wire Harness Testing Equipment is a reliable and efficient tool for ensuring the quality and safety of electrical connectors and cable assemblies. Its advanced features and customizable design make it a valuable asset for any electrical testing facility. Trust in this equipment to deliver accurate and dependable results for all your testing needs.

Features:

• Product Name: Wire Harness Testing Equipment
• Points: 16/32/48/64...20480PIN
• Power: Depending On The Position
• Standard configuration: Instruction Manual, Power Cord, Network Cable, And Pointing Pen
• Power Supply: 220V AC
• Software: Compatible With Windows Operating System
• Wiring Harness Quality Control Machine
• Wire Bundle Verification System
• High Precision Testing
• Wide Compatibility

Technical Parameters:

Applications:

SAIMR7000 is a highly advanced wire harness testing equipment designed and manufactured by SAIMR, a leading company in the field of electrical testing and measurement. The SAIMR7000 is the perfect solution for testing wire harnesses for functionality and quality, ensuring that they meet the highest standards and specifications. This state-of-the-art equipment is equipped with advanced features and technology, making it a must-have for any company involved in the production and testing of wire harnesses.

• Brand Name: SAIMR
• Model Number: SAIMR7000
• Place of Origin: CHINA
• Certification: CE, ISO9001
• Minimum Order Quantity: 1 SET
• Price: To be negotiated
• Packaging Details: Packing in wooden crates
• Delivery Time: To be negotiated
• Payment Terms: To be negotiated
• Supply Ability: To be negotiated

The SAIMR7000 is a highly efficient and reliable wire harness testing equipment that is designed to perform various tests on wire harnesses in order to ensure their functionality and quality. This equipment is widely used in the automotive, aerospace, and electronics industries, as well as in other manufacturing industries that require the use of wire harnesses. With its advanced features and capabilities, the SAIMR7000 is the perfect solution for all your wire harness testing needs.

The SAIMR7000 offers a wide range of features that make it a highly advanced and efficient wire harness testing equipment. Some of its key features include:

• Switch Test: The SAIMR7000 is equipped with a switch test function that allows for the testing of individual switches in wire harnesses, ensuring their functionality.
• Wire Bundle Verification System: This equipment is equipped with a wire bundle verification system that can accurately detect any wiring errors in wire harnesses, ensuring their quality and functionality.
• Electrical Connector Validation Equipment: The SAIMR7000 is also equipped with advanced electrical connector validation equipment that can accurately detect any faulty electrical connections in wire harnesses.
• Cable Harness Tester: With its cable harness testing capabilities, the SAIMR7000 can accurately test the functionality and quality of cable harnesses, ensuring they meet the required standards and specifications.

The SAIMR7000 is widely used in various industries for testing wire harnesses, including:

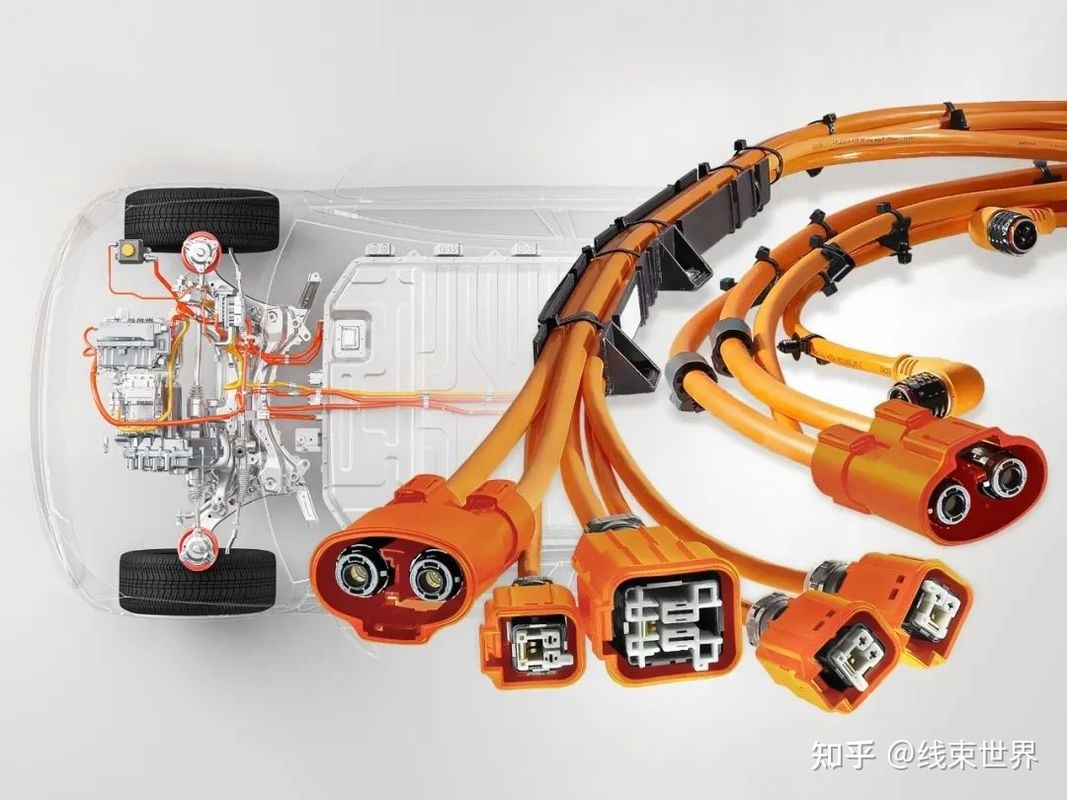

• Automotive industry: The SAIMR7000 is used for testing wire harnesses in vehicles, ensuring their functionality and safety.
• Aerospace industry: This equipment is used for testing wire harnesses in aircraft, ensuring their functionality and reliability.
• Electronics industry: The SAIMR7000 is used for testing wire harnesses in electronic devices, ensuring their quality and functionality.
• Manufacturing industry: This equipment is used for testing wire harnesses in various manufacturing processes, ensuring their functionality and quality.

The SAIMR7000 has the following dimensions:

• Length: 535mm
• Width: 482mm
• Height: 355mm

The SAIMR7000 is a highly advanced and efficient wire harness testing equipment that is widely used in various industries for testing wire harnesses. With its advanced features and capabilities, this equipment ensures the functionality and quality of wire harnesses, making it an essential tool for any company involved in the production and testing of wire harnesses. So, if you are looking for a reliable and accurate wire harness testing equipment, look no further than the SAIMR7000.

Customization:

Brand Name: SAIMR

Model Number: SAIMR7000

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1 SET

Price: To be negotiated

Packaging Details: Packing in wooden crates

Delivery Time: To be negotiated

Payment Terms: To be negotiated

Supply Ability: To be negotiated

Dimensions: 535*482*355mm

Certifications: CE, ISO9001

SAIMR offers customized services for our Wire Harness Testing Equipment, designed to meet the specific needs of our clients. Our Electrical Connector Validation Equipment, also known as the SAIMR7000, is built and tested in our factory in CHINA to ensure the highest quality standards. It is also certified with CE, ensuring its compliance with European safety standards.

Our Wire Bundle Verification System is equipped with advanced features such as AC and DC withstand voltage tests, with a range of 30V-3000V and 30V-4000V respectively, with an accuracy of ±3%. This ensures the reliable and accurate testing of wire harnesses and cable assemblies.

In addition, our software is compatible with Windows operating system, making it user-friendly and easy to operate. This software allows for efficient and precise testing of wire harnesses, ensuring their quality and functionality.

SAIMR also offers flexible pricing and packaging options, with a minimum order quantity of 1 set. Our products are packed in wooden crates for safe transportation and can be delivered within a negotiated time frame.

Trust SAIMR for all your Wire Harness Testing needs. Contact us today to learn more about our customized services and how we can assist you with your cable assembly test equipment requirements.

Packing and Shipping:

Our Wire Harness Testing Equipment is carefully packaged and shipped to ensure its safe arrival at your destination. Here is a breakdown of our packaging and shipping process:

• Packaging: Each Wire Harness Testing Equipment is securely wrapped in bubble wrap and placed in a sturdy cardboard box to protect it from any damage during transit.
• Shipping: We offer a variety of shipping options to accommodate your needs. Our standard shipping method is through reliable couriers such as UPS, FedEx, and DHL. We also offer expedited shipping for urgent orders.
• Tracking: Once your order has been shipped, we will provide you with a tracking number so you can easily monitor the status and location of your package.
• Customs: For international orders, please note that customs fees and taxes may apply, and the customer is responsible for any additional charges.

Rest assured that we take great care in packaging and shipping our Wire Harness Testing Equipment to ensure it arrives at your doorstep in perfect condition. If you have any questions or concerns about our packaging and shipping process, please don't hesitate to contact us. Thank you for choosing our product!

FAQ:

• Q: What is the brand name of this product?
  A: The brand name of this product is SAIMR.
• Q: What is the model number of this product?
  A: The model number of this product is SAIMR7000.
• Q: Where is this product manufactured?
  A: This product is manufactured in China.
• Q: Does this product have any certifications?
  A: Yes, this product is CE certified.
• Q: What is the minimum order quantity for this product?
  A: The minimum order quantity for this product is 1 set.
• Q: Is the price negotiable for this product?
  A: Yes, the price for this product can be negotiated.
• Q: How is this product packaged?
  A: This product is packed in wooden crates.
• Q: What is the estimated delivery time for this product?
  A: The delivery time for this product can be negotiated.
• Q: What are the available payment terms for this product?
  A: The payment terms for this product can be negotiated.
• Q: Is this product always available in stock?
  A: The supply of this product can be negotiated.
