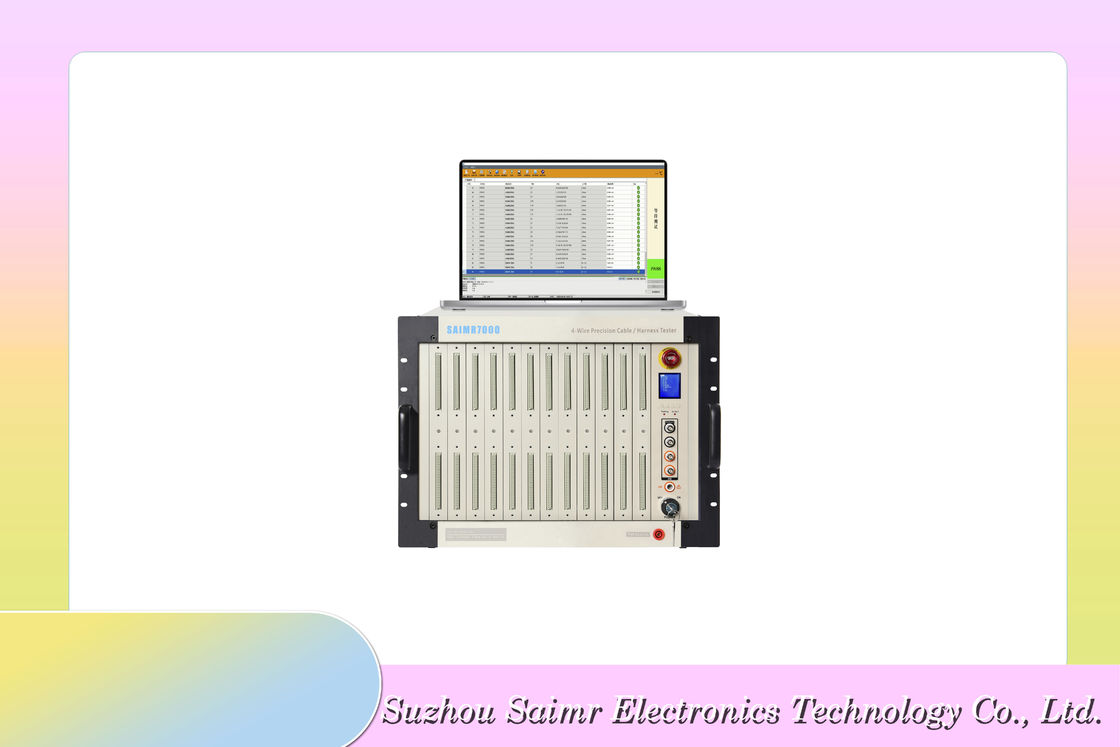

4 Wire Or 2 Wire Test Mode Cable Assembly Test Equipment OEM ODM

4 Wire Or 2 Wire Test Mode Cable Assembly Test Equipment OEM ODM

2 Wire Test Mode Cable Assembly Test Equipment

Cable Assembly Test Equipment OEM ODM

4 Wire Test Mode Cable Assembly Test Equipment

Place of Origin:

CHINA

Brand Name:

SAIMR

Certification:

CE

Model Number:

SAIMR7000

Contact Us

Request A Quote
Product Details
Software:
Compatible With Windows Operating System
Weight:
30kg
Testing Modes:
Manual, Semi-automatic, Fully Automatic
Product Name:
SAIMR7000
Power:
Depending On The Position
DC Leakage Current Test:
0.1µA-5mA/±3%
Standard Configuration:
Instruction Manual, Power Cord, Network Cable, And Pointing Pen.
OS Test(5V):
2kΩ-200kΩ/±5%
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
To be negotiated
Packaging Details
Packing in wooden crates
Delivery Time
To be negotiated
Payment Terms
To be negotiated
Supply Ability
To be negotiated
Product Description

4-Wire or 2-Wire Test Mode Cable Assembly Test Equipment 2kΩ-200kΩ/±5% OS Test 5V

Product Description:

Wire Harness Testing Equipment

The Wire Harness Testing Equipment is an essential tool for any manufacturing company that produces wire harnesses and cables. This product is designed to ensure the quality and safety of wire harnesses, which are crucial components in various electronic devices and systems. With its advanced features and high precision testing, this machine is an indispensable part of any production process.

The Wiring Harness Quality Control Machine is a state-of-the-art wire bundle verification system that guarantees the accuracy and reliability of wire harnesses. It is equipped with automatic testing capabilities, making it easy to use and highly efficient. This machine is designed to meet the demanding standards of the modern manufacturing industry and provides accurate and consistent results every time.

The Wire Bundle Verification System is designed to perform four-wire DC resistance tests with a range of 10µΩ to 100Ω, with an exceptional accuracy of ±0.2%±5µΩ. This feature ensures that even the smallest discrepancies in wire resistance are detected, resulting in a high-quality end product. Additionally, the machine can perform AC withstand voltage tests with a range of 30V to 3000V, with an accuracy of ±3%. This test ensures that the wire harness can withstand high voltages without any risk of malfunction or failure.

Product Specifications
Power Supply 220V AC
Four-wire DC Resistance Test 10µΩ-100Ω/±0.2%±5µΩ
Weight 30kg
Dimensions 535*482*355mm
AC Withstand Voltage Test 30V-3000V/±3%

The Wire Harness Testing Equipment is designed to be user-friendly, with an intuitive interface and easy operation. It is compact and lightweight, with a weight of only 30kg, making it easy to move and store. The dimensions of 535*482*355mm also make it suitable for use in small workspaces. The stable performance and high precision of this machine ensure that it can be used for long hours without any compromise in the accuracy of its results.

In conclusion, the Wire Harness Testing Equipment is a must-have for any manufacturing company that wants to deliver high-quality wire harnesses with unmatched precision and reliability. Its advanced features and easy operation make it a valuable asset in any production process, ensuring the safety and efficiency of electronic devices and systems. With its compact design and exceptional performance, this product is a game-changer in the world of wire harness testing.



Features:

  • Product Name: SAIMR7000
  • Software: Compatible With Windows Operating System
  • Optional feature: Air Tightness Test (-80Pa-100KPa, Resolution 1Pa)
  • AC Leakage Current Test: 1µA-10mA/±3%
  • Standard feature: Switch Test
  • Electrical Connector Validation Equipment
  • Wire Bundle Verification System
  • Cable Assembly Test Equipment


Technical Parameters:



Applications:

Wire Harness Testing Equipment - SAIMR7000

Brand Name: SAIMR

Model Number: SAIMR7000

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1 SET

Price: To be negotiated

Packaging Details: Packing in wooden crates

Delivery Time: To be negotiated

Payment Terms: To be negotiated

Supply Ability: To be negotiated

Optional Configuration: Port Adapter Board, Test Line, Computer, Temperature Probe, Multi-channel Temperature Module

Power: Depending On The Position

Test Mode: 4-Wire or 2-Wire (Mixed Test)

Solenoid Valve: 50mA-2A 02-40V (Continuous/Pulse)

Four-Wire DC Resistance Test: 10µΩ-100Ω/±0.2%±5µΩ

Introducing the SAIMR7000 Wire Harness Testing Equipment - your go-to solution for reliable and efficient wire testing. Designed and manufactured in China, this product is certified with CE, ensuring its quality and safety for use.

The SAIMR7000 is a state-of-the-art Wire Bundle Verification System, equipped with advanced features to meet the demands of modern electrical wire testing. It is an essential tool for various industries, including automotive, aerospace, and electronics, where the quality of wire harnesses is crucial for ensuring the safety and functionality of their products.

The SAIMR7000 is a versatile and user-friendly Electrical Wire Testing Device that can handle a wide range of testing requirements. With its optional configuration, you can customize your testing equipment according to your specific needs. The Port Adapter Board allows you to connect different types of wire connectors, while the Test Line enables easy and efficient testing of multiple wires simultaneously. The Computer interface provides a convenient way to control and monitor the testing process, while the Temperature Probe and Multi-channel Temperature Module allow for precise temperature measurements during testing.

The SAIMR7000 offers two test modes - 4-Wire and 2-Wire, which can be used separately or combined for mixed testing. This feature allows for more flexibility in testing various types of wire harnesses. Moreover, the Solenoid Valve with a range of 50mA-2A and 02-40V (continuous/pulse) provides accurate and reliable results, making it suitable for testing a variety of wire sizes and types.

The Four-Wire DC Resistance Test is another essential feature of the SAIMR7000. With a range of 10µΩ-100Ω and an accuracy of ±0.2%±5µΩ, it ensures precise and reliable measurements of the resistance of your wire harnesses. This test is crucial for detecting any faults or defects in the wire harness, ensuring the safety and quality of your products.

Invest in the SAIMR7000 Wire Harness Testing Equipment and experience the ease and efficiency of wire testing. With its advanced features, optional configuration, and precise testing capabilities, it is the perfect solution for your wire testing needs. Contact us now for more information and to negotiate the price and delivery time. Trust SAIMR - your reliable partner for electrical wiring testing.



Customization:

SAIMR - Your Partner in Quality Wire Harness Testing Equipment
Brand Name: SAIMR
Model Number: SAIMR7000
Place of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1 SET
Price: To be negotiated
Packaging Details: Packing in wooden crates
Delivery Time: To be negotiated
Payment Terms: To be negotiated
Supply Ability: To be negotiated

At SAIMR, we understand the importance of quality control in the production of wire harnesses. That's why we offer a range of customized services for our Wire Harness Testing Equipment, the SAIMR7000. Our services are designed to meet the specific needs of our clients, ensuring the highest level of accuracy and efficiency in their electrical connector validation process.

Our Wire Harness Testing Equipment, the SAIMR7000, is compatible with Windows operating system and is equipped with advanced software, making it easy to use and highly efficient. With our equipment, you can be assured of accurate results and improved productivity in your wiring harness quality control process.

Our customized services include:

  • Electrical Connector Validation Equipment
  • Electrical Wire Testing Device
  • Wiring Harness Quality Control Machine

In addition, we also offer an optional feature for Air Tightness Test, with a range of -80Pa to 100KPa and a resolution of 1Pa. Our equipment is also equipped with a solenoid valve with a range of 50mA-2A and 02-40V for continuous or pulse testing. With our AC Leakage Current Test, you can test for currents between 1µA to 10mA with an accuracy of ±3%.

The power of our Wire Harness Testing Equipment varies depending on the position, ensuring flexibility and convenience in your testing process. We also offer a range of supply options, allowing you to choose the best option for your business needs.

Partner with SAIMR for reliable, accurate, and efficient Wire Harness Testing Equipment and experience the benefits of our customized services. Contact us today to discuss your specific requirements and get a quote.



FAQ:

1. What resistance testing method does it use?

- It uses a four-wire measurement method for resistance testing.



2. Is it a combined test for conduction and high voltage? -

Yes, it is a combined test for conduction and high voltage.



3. How to operate it?

- Pure computer-side operation is used.



4. Can test data be stored on a computer? What format is the stored data?

- Yes, test data can be stored on a computer, and the stored data format is PDF.



5. Can the stored test data be exported by batch number or time?

- Yes, the stored test data can be exported by batch number or time.



6. Does it have the function of printing test reports?

- Yes, it has the function of printing test reports.



7. Does it have the function of automatically printing barcodes (barcode or QR code) after testing?

- Yes, it has the function of automatically printing barcodes (barcode or QR code) after testing.

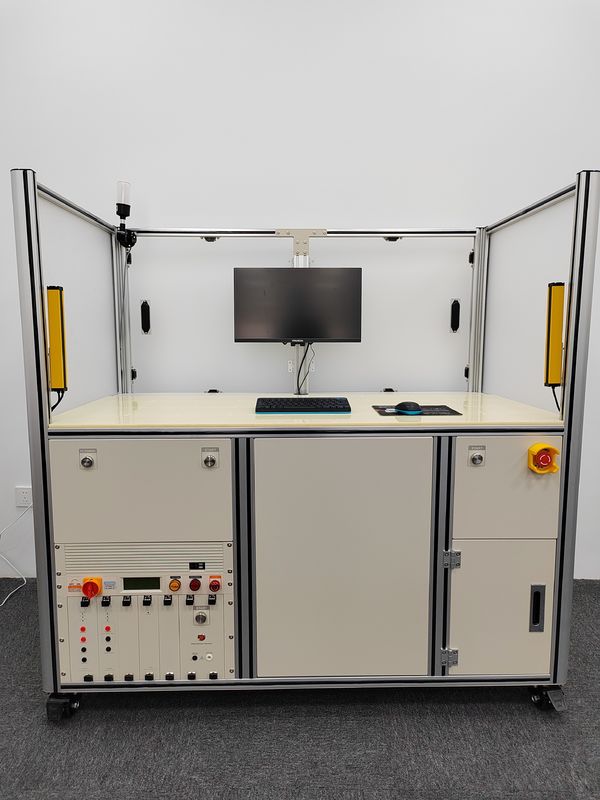

8. What is the structure of the cabinet with wheels? Is it convenient to move?

- The cabinet with wheels has a movable structure, which is convenient to move. It can be freely combined with multiple units according to the output of the production line.



9. How to replace the fixture? - Quick connectors are used to connect the fixture and the machine, making it easy to replace the fixture.
