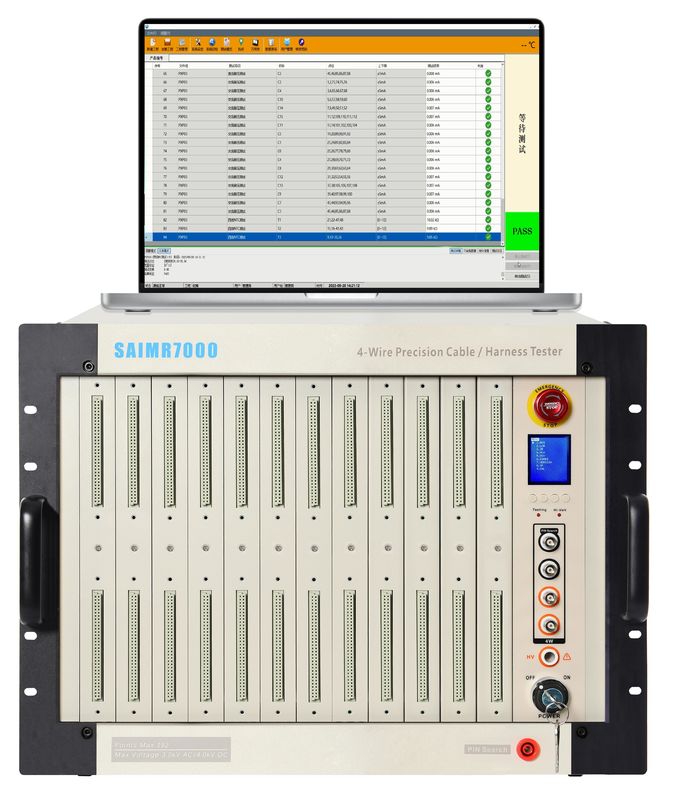

Wire Harness Testing Equipment

Product Description:

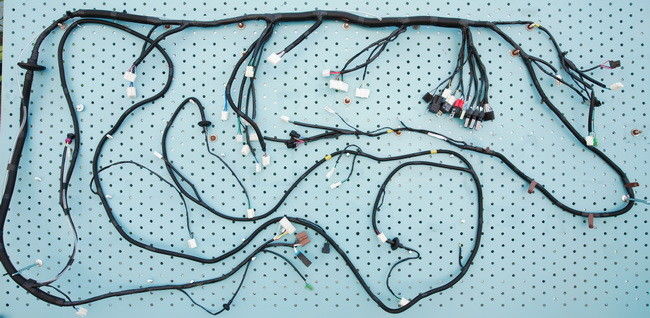

The  Wire Harness Testing Equipment is a state-of-the-art device designed for testing and validating cable assemblies and electrical connectors. This highly efficient and accurate equipment is essential for ensuring the quality and reliability of wire harnesses used in various industries such as automotive, aerospace, and electronics.

The Wire Harness Testing Equipment operates on a 220V AC power supply, making it suitable for use in different countries and regions.

The Wire Harness Testing Equipment is certified by CE and ISO9001, ensuring that it meets the highest international standards of quality and safety. This makes it a trusted and reliable choice for businesses and manufacturers.

The Wire Harness Testing Equipment is equipped with a four-wire DC resistance test function, with a range of 10µΩ-100Ω and an accuracy of ±0.2%±5µΩ. This allows for precise and efficient testing of wire harnesses, ensuring that they meet the required specifications and standards.

The Wire Harness Testing Equipment offers both 4-wire and 2-wire test modes, allowing for a mixed test and providing flexibility in testing different types of wire harnesses and connectors. This makes it a versatile and adaptable device for various testing needs.

The Wire Harness Testing Equipment Wire Harness Testing Equipment is the ultimate solution for cable assembly test equipment, electrical connector validation equipment, and electrical wire testing devices. Its advanced features and reliable performance make it an essential tool for any business involved in wire harness production and testing.

Technical Parameters:

Key Features:

• Wiring Harness Quality Control Machine
• Electrical Connector Validation Equipment
• Wire Bundle Verification System

Customization:

Brand Name: SAIMR

Model Number: SAIMR7000

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1 SET

Price: To be negotiated

Packaging Details: Packing in wooden crates

Delivery Time: To be negotiated

Payment Terms: To be negotiated

Supply Ability: To be negotiated

Test Mode: 4- Wire Or 2-wire (mixed Test)

Four-wire DC resistance test: 10µΩ-100Ω/±0.2%±5µΩ

Testing Modes: Manual, Semi-automatic, Fully Automatic

Certifications: CE, ISO9001

Usage: Testing Wire Harnesses For Functionality And Quality

Customization Options:

• Wire Bundle Verification System
• Electrical Wire Testing Device
• High Precision Testing
• Fully Customizable

FAQ:

.Q: What is the specific procedure for 4-wire NTC testing?

A: The specific procedure for 4-wire NTC testing is as follows:

1. Connect the test equipment: Connect the 4-wire NTC sensor to the four terminals of the test equipment to ensure a secure connection.

2. Set test parameters: Set the test parameters according to the sensor model and application environment, such as test temperature, test time, test voltage, etc.

3. Start the test: Start the test equipment and perform the test according to the set test parameters.

4. Record test data: During the test process, record the resistance value and temperature value of the sensor for data analysis.

5. Analyze test data: Calculate the sensitivity, linearity, hysteresis and other parameters of the sensor based on the recorded test data to evaluate the performance of the sensor.

6. Determine test results: Determine the test results of the sensor according to the test data and standards to determine if the sensor meets the requirements.

7. Generate test reports: Generate test reports to record test data, test results and determination results for archiving and future reference. Please note that the specific test steps and parameter settings may vary due to different test equipment and sensors.

When performing 4-wire NTC testing, it is recommended to refer to relevant test standards and manuals to ensure the accuracy and reliability of the test results.
