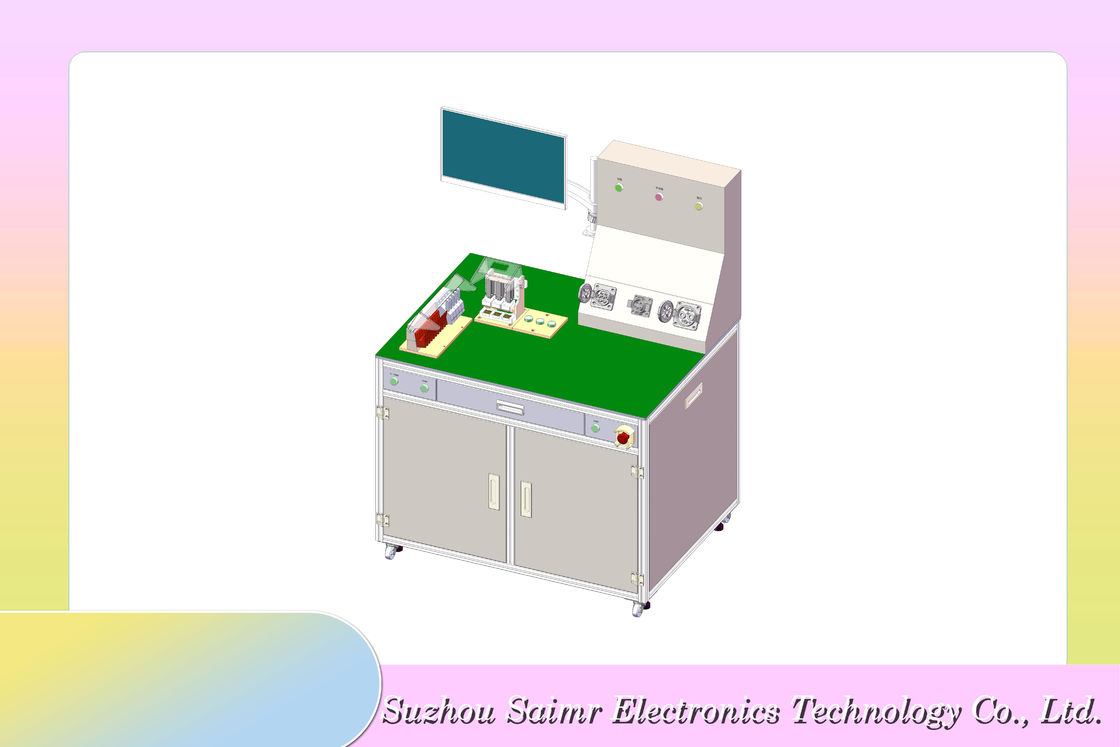

SAIMR7000 Wire Harness Testing System

Product Description:

This Electrical Wire Testing Device is a crucial tool for any manufacturer or supplier of electrical connectors and wire harnesses. It is designed to accurately and efficiently test the safety and functionality of wire bundles and connectors, ensuring they meet industry standards and specifications.

• Color/Customizable: Available in black and white, the colors can be customized to suit your company's branding or personal preference.
• Weight: The Wire Harness Testing Equipment weighs only 30kg, making it portable and easy to move around your testing facility.
• Certifications: This product is certified by CE and ISO9001, ensuring its quality and reliability.
• AC withstand voltage test: With a voltage range of 30V-3000V and an accuracy of ±3%, this device can effectively test the insulation strength and integrity of wire harnesses and connectors.
• AC Leakage Current Test: The device can also perform an AC leakage current test with a range of 1µA-10mA and an accuracy of ±3%, detecting any potential leakage and ensuring the safety of the wire harnesses.

Our Electrical Connector Validation Equipment is equipped with advanced technology and features, making it a top-of-the-line wire bundle verification system. Some of its key features include:

• Intuitive interface: The device has a user-friendly interface, allowing for easy operation and navigation.
• High precision: With a high precision measurement system, this equipment can accurately detect any defects or abnormalities in wire harnesses and connectors.
• Durable construction: Made with high-quality materials, this product is built to last and can withstand daily use in a testing environment.
• Efficient testing: The Wire Harness Testing Equipment is designed for efficient testing, reducing the time and effort required for inspections and validations.
• Versatility: This product is suitable for testing a wide range of wire harnesses and connectors, making it a versatile tool for any electrical industry.

In summary, the Wire Harness Testing Equipment is a reliable and essential tool for any company involved in the production or supply of electrical connectors and wire harnesses. With its customizable colors, lightweight design, and advanced testing capabilities, it is a must-have for efficient and accurate electrical connector validation.

Features:

• Product Name: Wire Harness Testing Equipment
• Testing Modes:
  • Manual
  • Semi-automatic
  • Fully Automatic
• Solenoid valve: 50mA-2A 02-40V (continuous/pulse)
• DC Leakage Current Test: 0.1µA-5mA/±3%
• Display: PC
• DC withstand voltage test: 30V-4000V/±3%
• Product Features:
  • Electrical Connector Validation Equipment
  • Electrical Wire Testing Device
  • Connector Cable Test Analyzer

Technical Parameters:

Applications:

SAIMR7000 is a high-quality Wire Harness Testing Equipment designed and produced by SAIMR, a leading brand in China. This product is essential for testing the functionality and quality of wire harnesses in various industries.

The SAIMR7000 is a powerful Connector Cable Test Analyzer that can accurately test wire harnesses with up to 20480 pins. It is designed to provide precise results and can be used in a variety of industries such as automotive, aerospace, and electronics.

• Four-wire DC resistance test: 10µΩ-100Ω/±0.2%±5µΩ
• Points: 16/32/48/64...20480PIN
• DC withstand voltage test: 30V-4000V/±3%
• High-quality and durable construction
• Easy to use with a user-friendly interface
• Accurate and reliable results
• Can test multiple wire harnesses simultaneously

The SAIMR7000 Wire Harness Testing Equipment is ideal for testing wire harnesses for functionality and quality. It is an essential tool for manufacturers to ensure that their products meet the required standards and specifications. This equipment can also be used for quality control and troubleshooting purposes.

• Improves productivity and efficiency
• Reduces the chances of product failure and recalls
• Ensures compliance with industry standards and regulations
• Saves time and labor costs
• Provides accurate and reliable results
• Easy to operate and maintain

The SAIMR7000 Wire Harness Testing Equipment is a reliable and efficient tool that helps manufacturers ensure the quality and functionality of their wire harnesses. It is a must-have for any company that deals with wire harnesses and wants to maintain high standards of production. With its advanced features and user-friendly interface, the SAIMR7000 is the best choice for all your wire harness testing needs.

Customization:

• Brand Name: SAIMR
• Model Number: SAIMR7000
• Place of Origin: CHINA
• Certification: CE
• Minimum Order Quantity: 1 SET
• Price: To be negotiated
• Packaging Details: Packing in wooden crates
• Delivery Time: To be negotiated
• Payment Terms: To be negotiated
• Supply Ability: To be negotiated
• DC Withstand Voltage Test: 30V-4000V/±3%
• Display: PC
• Dimensions: 535*482*355mm
• Standard Configuration: Instruction Manual, Power Cord, Network Cable, And Pointing Pen.
• Weight: 30kg

This Wire Harness Testing Equipment is designed and manufactured by SAIMR, a leading company in the field of Electrical Wire Testing Devices. With the model number SAIMR7000, this equipment is made in CHINA and has been certified by CE, ensuring its high quality and safety standards.

Our minimum order quantity is 1 SET and the price can be negotiated according to your requirements. The packaging will be done in wooden crates for safe transportation and the delivery time will also be negotiated based on your needs.

We offer flexible payment terms and have the ability to supply the equipment as per your demand. The DC withstand voltage test range is 30V-4000V/±3% and the equipment comes with a PC display for easy operation. Its compact dimensions of 535*482*355mm make it suitable for various testing environments.

The standard configuration of this Wire Harness Testing Equipment includes an instruction manual, power cord, network cable, and pointing pen. With a weight of 30kg, it is easy to handle and transport.

Our customized services ensure that the Wire Harness Testing Equipment meets all your specific requirements. We understand the importance of accurate and reliable testing for Connector Cable Test Analysis, and our equipment is designed to provide precise results. Contact us now to discuss your customized needs and get a quote for our high-quality Wire Harness Testing Equipment.

Packing and Shipping:

Thank you for purchasing the Wire Harness Testing Equipment. We strive to provide the best quality products and services to our customers.

The Wire Harness Testing Equipment will be carefully packaged to ensure safe delivery. The packaging materials used will be durable and protective, providing ample cushioning to prevent any damage during transportation.

The equipment will be securely placed in a sturdy cardboard box with foam inserts to prevent movement during transit. The box will be labeled with the product name and a fragile sticker to ensure proper handling.

We offer various shipping options to meet your needs. Our standard shipping method is through reputable carriers such as UPS, FedEx, or DHL.

For domestic orders, the estimated delivery time is 3-5 business days. International orders may take 7-14 business days to arrive, depending on the destination.

Once your order has been shipped, you will receive a tracking number via email to track your package's progress. Please note that any additional customs or duties fees for international orders are the responsibility of the customer.

If you have any questions or concerns regarding your order's packaging or shipping, please don't hesitate to contact us. Thank you again for choosing our Wire Harness Testing Equipment.

FAQ:

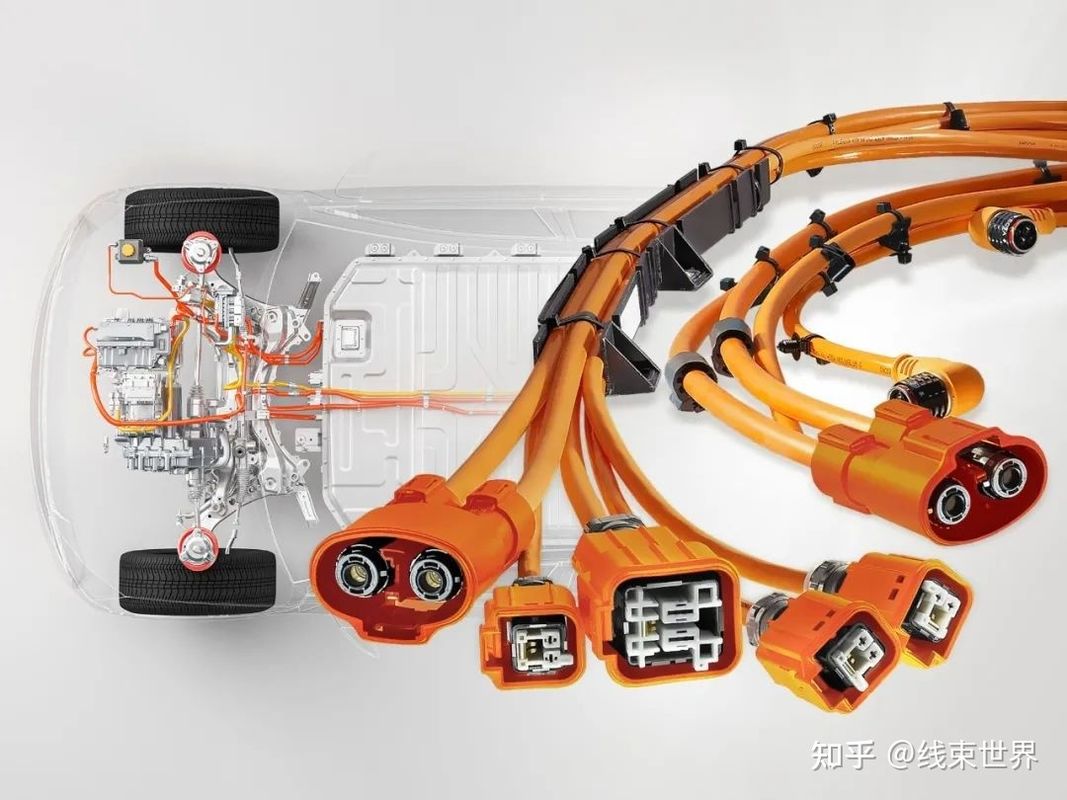

Q: Why is the medium and high voltage harness test system suitable for charging gun testing?

A: The medium and high voltage harness test system can perform comprehensive electrical performance tests on the charging gun, including the measurement of voltage, current, resistance, and insulation resistance and other parameters.

Q: How does the medium and high voltage harness test system ensure the safety of the charging gun?

A: The system can detect the insulation performance of the charging gun and identify potential leakage hazards, thereby ensuring the safety of the charging process.

Q: What is the help of the medium and high voltage harness test system for the compatibility of the charging gun?

A: It can test the compatibility of the charging gun with different types of vehicles to ensure the normal use of the charging gun on various vehicles.

Q: How does the medium and high voltage harness test system improve the charging efficiency of the charging gun?

A: By precisely measuring and analyzing the electrical parameters of the charging gun, the system can help optimize the design of the charging gun and improve the charging efficiency.

Q: What faults can the medium and high voltage harness test system detect in the charging gun?

A: It can detect circuit breaks, shorts, poor contacts and other faults in the charging gun, helping to detect and solve problems in a timely manner. In conclusion, the medium and high voltage harness test system can comprehensively test the various performances of the charging gun, ensuring its safety, compatibility, and charging efficiency, so it is suitable for charging gun testing.
