DC Leakage Current Test 0.1µA-5mA/±3% Wire Harness Testing Equipment with Switch Test
Wire/Cable Harness Testing Equipment
Product Description:
Product Overview - Wire Harness Testing Equipment
The Wire Harness Testing Equipment is a state-of-the-art product designed to test wire harnesses for functionality and quality. This equipment is an essential tool for manufacturers, as it ensures that their wire harnesses meet the highest standards of performance and safety.
Power Supply
The Wire Harness Testing Equipment operates on a 220V AC power supply, making it compatible with most standard power outlets.
Optional Feature - Air Tightness Test
The Wire Harness Testing Equipment also comes with an optional air tightness test feature, which allows for testing in a range of -80Pa to 100KPa with a resolution of 1Pa. This feature is especially useful for testing wire harnesses that are used in critical applications where air tightness is crucial.
Software Compatibility
Our Wire Harness Testing Equipment is compatible with Windows operating system, making it easy to use for operators who are familiar with this system. The software is user-friendly and allows for efficient testing, analysis, and reporting of results.
DC Leakage Current Test
The Wire Harness Testing Equipment is equipped with a DC leakage current test function, which can detect current in the range of 0.1µA-5mA with an accuracy of ±3%. This feature ensures that the wire harnesses are free from any leakage that can lead to malfunction or safety hazards.
Usage
The Wire Harness Testing Equipment is designed for testing wire harnesses used in various industries such as automotive, aerospace, and electronics. It is an essential tool for manufacturers to ensure the functionality and quality of their wire harnesses before they are installed in their products.
Wire Harness Tester - The Ultimate Solution
The Wire Harness Testing Equipment is the ultimate solution for wire harness testing. It is equipped with the latest technology and features to provide accurate results and ensure the reliability of wire harnesses. With its advanced capabilities, this tester is a must-have for any manufacturer looking to produce high-quality wire harnesses.
Features:
- Product Name: Wire Harness Testing Equipment
- Usage: Testing Wire Harnesses For Functionality And Quality
- AC Leakage Current Test: 1µA-10mA/±3%
- Certifications: CE, ISO9001
- DC Leakage Current Test: 0.1µA-5mA/±3%
- Dimensions: 535*482*355mm
- Connector Cable Test Analyzer
- Wiring Harness Quality Control Machine
- Electrical Wire Testing Device
Technical Parameters:
| Product Name |
Wire Harness Testing Equipment |
| Product Type |
Electrical Connector Validation Equipment |
| Application |
Wiring Harness Quality Control Machine, Wire Bundle Verification System |
| AC Leakage Current Test |
1µA-10mA/±3% |
| Standard Configuration |
Instruction Manual, Power Cord, Network Cable, And Pointing Pen |
| Display |
PC |
| AC Withstand Voltage Test |
30V-3000V/±3% |
| DC Leakage Current Test |
0.1µA-5mA/±3% |
| Certifications |
CE, ISO9001 |
| Weight |
30kg |
| Testing Modes |
Manual, Semi-automatic, Fully Automatic |
| Power Supply |
220V AC |
| Dimensions |
535*482*355mm |
Applications:

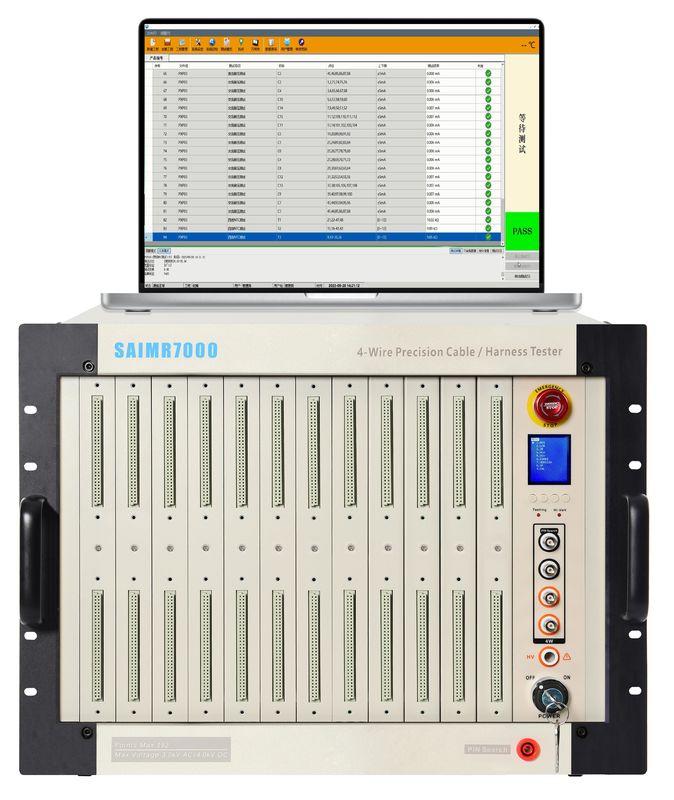

Wire Harness Testing Equipment - SAIMR7000
SAIMR7000 is a high-quality Wire Harness Testing Equipment designed and manufactured by SAIMR in China. It is a user-friendly and efficient machine that helps in testing the quality of wiring harnesses, cable assemblies, and electrical connectors. With its precise testing capabilities and advanced features, it is widely used in various industries for production line testing and fault detection.
Application and Usage
The SAIMR7000 is an essential tool for ensuring the quality and safety of wiring harnesses and cable assemblies. It is commonly used in industries such as automotive, aerospace, electronics, and telecommunications for testing and validating the electrical connections in their products. This equipment is also suitable for use in research and development laboratories for conducting high-precision tests on new wiring harness designs.
Product Features
- Brand Name: SAIMR
- Model Number: SAIMR7000
- Place of Origin: China
- Certification: CE, ISO9001
- Minimum Order Quantity: 1 SET
- Price: To be negotiated
- Packaging Details: Packing in wooden crates
- Delivery Time: To be negotiated
- Payment Terms: To be negotiated
- Supply Ability: To be negotiated
- DC Leakage Current Test: 0.1µA-5mA/±3%
- AC Withstand Voltage Test: 30V-3000V/±3%
- Display: PC
- Dimensions: 535*482*355mm
Product Benefits
The SAIMR7000 offers a range of benefits to its users, making it a valuable addition to any production line or testing facility. These benefits include:
- High-precision testing for accurate results
- User-friendly interface for easy operation
- Efficient fault detection for improved product quality
- Reliable performance for consistent testing
- Compact design for space-saving installation
- CE and ISO9001 certifications for quality assurance
Conclusion
In conclusion, the SAIMR7000 is a top-of-the-line Wire Harness Testing Equipment that offers high precision testing, efficient fault detection, and user-friendly operation. It is an essential tool for industries and laboratories that require reliable and accurate testing of wiring harnesses, cable assemblies, and electrical connectors. With its advanced features and certifications, it is a trusted choice for ensuring the quality and safety of electrical connections in various products. Contact SAIMR now to learn more about this product and to place your order.
Customization:
SAIMR7000 Wire Harness Testing Equipment - Customized Services
Brand Name: SAIMR
Model Number: SAIMR7000
Place of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1 SET
Price: To be negotiated
Packaging Details: Packing in wooden crates
Delivery Time: To be negotiated
Payment Terms: To be negotiated
Supply Ability: To be negotiated
Solenoid valve: 50mA-2A 02-40V (continuous/pulse)
OS Test(5V): 2kΩ-200kΩ/±5%
Power Supply: 220V AC
Points: 16/32/48/64...20480PIN
Display: PC
This Wire Harness Testing Equipment, also known as the SAIMR7000, is a top-of-the-line quality control machine for testing the functionality and reliability of wiring harnesses. With our customized services, we ensure that your specific needs and requirements are met, making this the perfect solution for cable assembly testing and connector cable analysis.
Packing and Shipping:
Packaging and Shipping for Wire Harness Testing Equipment
Our Wire Harness Testing Equipment is carefully packaged and shipped to ensure safe arrival and proper functioning upon delivery.
Packaging:
- Each unit is individually packaged in a sturdy, protective box.
- The box is sealed with high-quality tape to prevent any damage during transit.
- Inside the box, the equipment is securely wrapped in bubble wrap to provide additional cushioning.
- Any delicate components are further protected with foam inserts.
- The box is labeled with the product name, model number, and handling instructions.
Shipping:
- We offer both domestic and international shipping options.
- All shipments are made through reputable and reliable couriers.
- For international orders, we ensure that all necessary customs documentation is properly completed.
- Customers can choose their preferred shipping method at checkout.
- Once the order has been processed and shipped, a tracking number will be provided to the customer for monitoring the delivery status.
With our careful packaging and reliable shipping methods, customers can have peace of mind knowing that their Wire Harness Testing Equipment will arrive safely and in excellent condition.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is SAIMR.
- Q: What is the model number of this product?
A: The model number of this product is SAIMR7000.
- Q: Where is this product manufactured?
A: This product is manufactured in China.
- Q: Does this product have CE certification?
A: Yes, this product is CE certified.
- Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
