 Rapid and Accurate Multi-Channel DC Resistance Tester

1.DESCRIPTION

     The primary distinction between a multi-channel DC resistance tester and a single-channel DC resistance tester resides in the quantity of channels. A multi-channel DC resistance tester typically encompasses multiple measurement channels, enabling the simultaneous measurement of the DC resistance of multiple circuits. Conversely, a single-channel DC resistance tester possesses only one measurement channel, permitting the measurement of the DC resistance of a sole circuit. The advantage of a multi-channel DC resistance tester lies in its capacity to measure the resistance of multiple circuits concurrently, thereby enhancing the testing efficiency. It is well-suited for applications that demand rapid and precise measurement of multi-channel DC resistance, such as in the manufacturing, repair, and quality control processes of electronic products. The single-channel DC resistance tester is more appropriately utilized in applications that entail precise measurement of the resistance of a single circuit, such as in laboratory research and troubleshooting scenarios.

2.TIPS

1. Select the Appropriate Measurement Range: In accordance with the magnitude of the resistance to be measured, it is essential to select the suitable measurement range of the DC Resistance Tester. It is advisable to refrain from choosing either an overly small or an excessively large range to guarantee measurement accuracy.
2. Correct Connection of Test Leads: The test leads should be appropriately connected to both extremities of the resistance to be measured, ensuring a satisfactory contact and circumventing measurement errors.
3. Avoidance of Interference: During the measurement procedure, every effort should be made to evade external interferences, such as electromagnetic fields and static electricity, in order to ensure the accuracy of the measurement outcomes.
4. Attention to Temperature Effects: The DC resistance value might be influenced by temperature variations. In case precise measurement is requisite, the temperature coefficient of the resistance to be measured ought to be taken into account and the measurement should be conducted at an appropriate temperature.
5. Regular Calibration: In line with the manufacturer's recommendations, the DC Resistance Tester should be calibrated at regular intervals to ensure its measurement accuracy.
6. Adherence to Safety Operating Procedures: When utilizing a DC Resistance Tester, it is imperative to follow the relevant safety operating procedures, such as evading electric shock and ensuring proper grounding.
7. Reading the User Manual: The user manual of the DC Resistance Tester should be perused meticulously to comprehend its functions, operating methods, and precautions, thereby enabling the full exploitation of the instrument's performance.

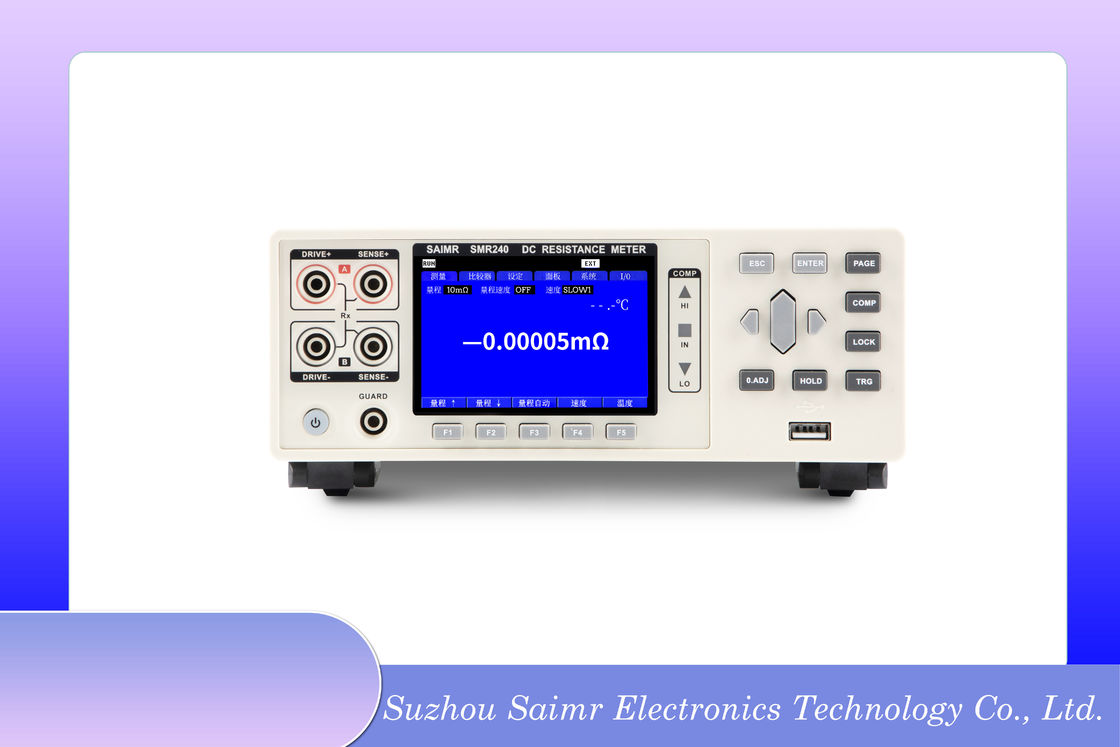

3.Photo display
