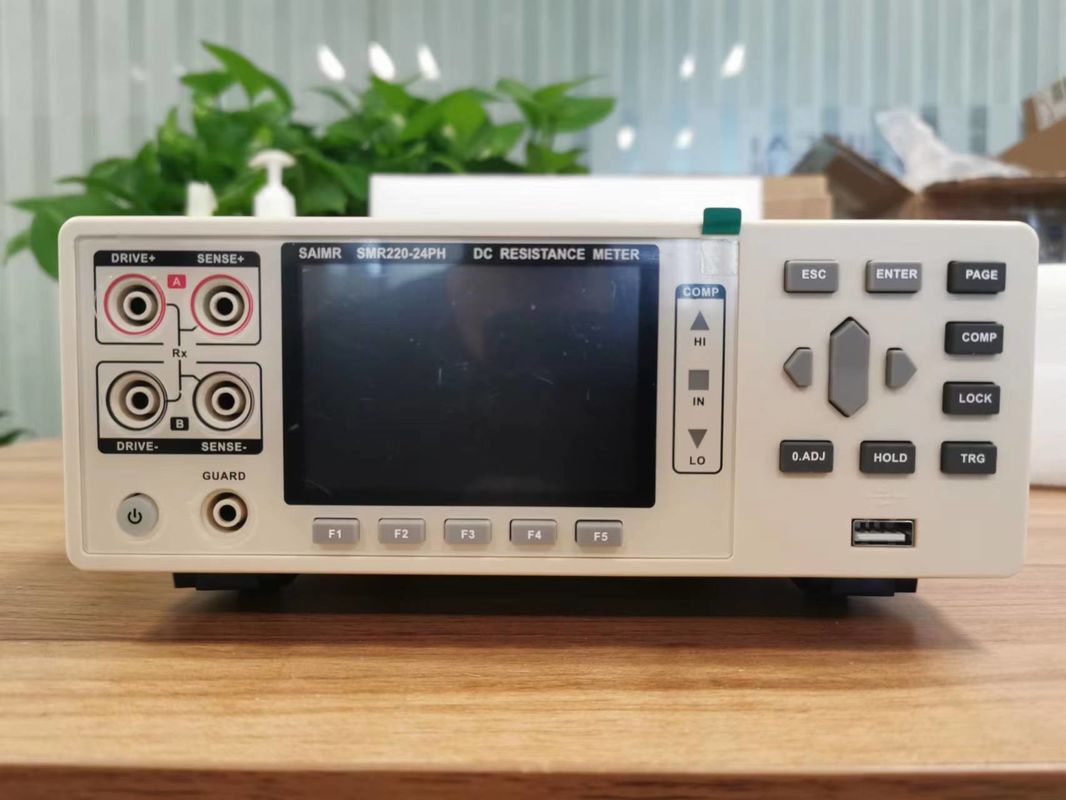

DC Resistance Tester
Product Description:
The DC Resistance Tester is a versatile and reliable product designed for testing and measuring the resistance of various electronic components. It is equipped with advanced features and multiple test modes to cater to different testing needs. This product is an essential tool for technicians, engineers, and hobbyists in the electronic industry.
Comparator
The DC Resistance Tester is equipped with a 10-bit sorting comparator, which provides high accuracy and precision in sorting components based on their resistance values. It offers three sorting options: high, low, and low sorting, making it convenient for users to identify and categorize components based on their resistance values.
Test Mode
This product offers two test modes: 4-wire and 2-wire, which can be easily switched according to the user's preference. The 4-wire mode is suitable for accurate and precise measurements, while the 2-wire mode is more suitable for quick and simple measurements.
Measurement Range
The DC Resistance Tester has a wide measurement range of 0.01μΩ to 3.3MΩ, making it suitable for testing a variety of components, such as resistors, capacitors, and inductors. It can accurately measure both low and high resistance values, providing users with reliable and precise results.
Attachments
This product comes with essential attachments such as a power cord, test clamp, and temperature probe, making it ready for immediate use. For multi-channel models with multi-channel test leads, an optional probe pen is also available for more convenient testing.
Interface
The DC Resistance Tester is designed with multiple interface options, including LAN, RS232, and IO, allowing users to easily connect and transfer data to other devices. This feature makes it suitable for use in various testing environments.
Technical Parameters:
| Product Name |
DC Resistance Tester |
| Weight |
2kg |
| Dimensions |
325*215*96.5mm |
| Measurement Range |
0.01μΩ ~ 3.3MΩ |
| Accuracy |
0.02% |
| Interface |
LAN, RS232, IO |
| Attachments |
Power Cord, Test Clamp, Temperature Probe, Optional Probe Pen (multi-channel Models With Multi-channel Test Leads) |
| Test Mode |
4-wire Or 2-wire (switchable) |
| Resolution |
0.1μΩ |
| Number Of Channels |
One/24PH/48PH |
| Comparator |
10-bit Sorting, High/low/low Sorting |
| High Voltage Tester |
Yes |
| Battery Voltage Tester |
Yes |
Applications:
Product Overview
The DC Resistance Tester, also known as a High Voltage Tester, is an essential tool for testing electrical resistance in various components of electrical power systems. Developed and manufactured by SIAMR, a leading High Voltage Tester Supplier from China, the SMR220 model is a versatile and high-quality product that offers accurate and reliable electrical resistance measurement for a wide range of applications.
Application Scenarios
The DC Resistance Tester can be used in a variety of scenarios, including:
- High Voltage Testing: The DC Resistance Tester is an important tool for testing high voltage equipment, such as power transformers, power cables, and power capacitors. It can accurately measure the resistance of these components and ensure their proper functioning.
- Electrical Power Systems: In the field of electrical power systems, the DC Resistance Tester is used to test the resistance of various components to ensure the safety and reliability of the system.
- High Voltage Switchgear: High voltage switchgear is a crucial part of electrical power systems, and the DC Resistance Tester is used to test the resistance of its components, such as circuit breakers and isolators, to ensure efficient and safe operations.
Customization:
DC Resistance Tester - Customized Service
Model Number: SMR220
Place of Origin: CHINA
Minimum Order Quantity: 1 SET
Price: To be negotiated
Packaging Details: Packing in wooden crates
Delivery Time: 30 WORK DAYS
Payment Terms: To be negotiated
Supply Ability: To be negotiated
Resolution: 0.1μΩ
Test Mode: 4-wire Or 2-wire (switchable)
Test Project: DC Resistance/NTC
Weight: 2kg
Attachments: Power Cord, Test Clamp, Temperature Probe, Optional Probe Pen (multi-channel Models With Multi-channel Test Leads)
Our DC Resistance Tester, model SMR220, is designed and manufactured by SIAMR in China. With a resolution of 0.1μΩ, it is perfect for testing the DC resistance and NTC of various electronic components.
As part of our customized service, we offer the option to choose between 4-wire or 2-wire test modes, depending on your specific needs. Additionally, we provide a wide range of attachments including a power cord, test clamp, and temperature probe. For our multi-channel models, a probe pen with multi-channel test leads is also available as an optional attachment.
At SIAMR, we understand the importance of quality and reliability. That's why our DC Resistance Tester is built with high-quality materials and undergoes rigorous testing to ensure accurate and precise results every time. Our product is also lightweight, weighing only 2kg, making it easy to transport and use in different settings.
To ensure the safety of our customers, our DC Resistance Tester is equipped with a battery voltage tester and a high voltage tester. We also offer a customized packaging option of wooden crates to protect the product during transportation.
With our customized service, you can negotiate the price, payment terms, and delivery time that best suits your business needs. Our supply ability is also negotiable, ensuring that we can meet your demand for our high-quality DC Resistance Tester.
Choose SIAMR for your DC Resistance testing needs and experience our excellent customized service. Contact us today to learn more and request a quote.
