48PH AC And DC Resistance Bridge Calibration System Tester With Low Sorting

Product Description:

The DC Resistance Tester is a high-performance electrical testing equipment designed for accurate measurement of DC resistance in various industries such as battery manufacturing, power supply, and electronics. With advanced features and user-friendly interface, this tester is the perfect tool for quality control and troubleshooting in production lines.

The DC Resistance Tester is available in three models: One, 24PH, and 48PH. The One model is a single-channel tester, while the 24PH and 48PH models have 24 and 48 channels respectively. This allows for simultaneous testing of multiple samples, increasing efficiency and productivity.

The tester offers both 4-wire and 2-wire test modes, which can be easily switched between depending on the specific testing requirements. The 4-wire mode is ideal for measuring low resistance values with high accuracy, while the 2-wire mode is suitable for testing higher resistance values.

The DC Resistance Tester comes equipped with a 10-bit sorting comparator, which allows for precise sorting of components based on their resistance values. It offers three sorting options: high, low, and low sorting, making it easier to identify and classify components based on their resistance levels.

The tester has multiple interface options, including LAN, RS232, and IO, providing flexibility and convenience for data transfer and communication. This allows for seamless integration with other testing systems and devices, making it an ideal choice for automated testing processes.

The DC Resistance Tester offers a high resolution of 0.1μΩ, ensuring accurate and precise measurement of resistance values. This makes it suitable for testing a wide range of components and materials, from small electronic components to large batteries.

• Battery Voltage Tester: The DC Resistance Tester can accurately measure the resistance of batteries, making it an essential tool for battery manufacturing and maintenance.
• High Voltage Tester: With its high resolution and advanced features, the tester can handle high voltage applications, making it suitable for use in power supply and other industries.
• Electrical Testing Equipment: The tester is designed to meet the highest standards of quality and accuracy, making it a reliable choice for all electrical testing needs.
• DC Resistance Measurement: The primary function of the tester is to measure DC resistance, providing precise and consistent results for various components and materials.

Features:

• Product Name: DC Resistance Tester
• Test Project: DC Resistance/NTC
• Resolution: 0.1μΩ
• Interface: LAN, RS232, IO
• Test Mode: 4-wire Or 2-wire (switchable)
• Measurement Range: 0.1μΩ ~ 10MΩ
• Key Features:
  1. High precision measurement of DC resistance and NTC components
  2. Multiple interfaces for easy data transfer and analysis
  3. Switchable test mode for versatile use
  4. Wide measurement range, from 0.1μΩ to 10MΩ

Technical Parameters:

Applications:

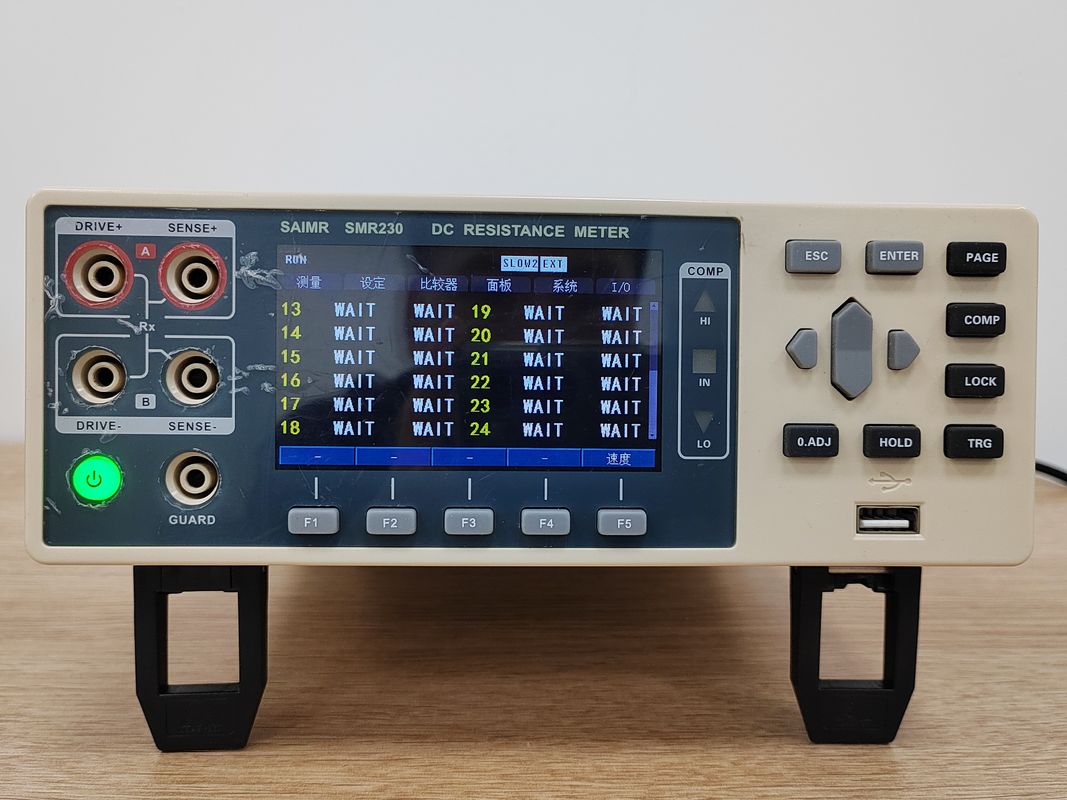

The DC Resistance Tester, also known as SAIMR SMR230, is a high-precision testing equipment designed and manufactured by SAIMR in China. With a minimum order quantity of just one set, this product is available for purchase by both small and large businesses.

• Battery manufacturers and suppliers can use the DC Resistance Tester to test the resistance of their batteries. This can help them ensure the quality of their products and identify any faulty batteries.
• Electronics manufacturers can use this product to test the resistance of their electronic components, such as resistors and capacitors. This can help them ensure the accuracy and reliability of their products.
• Power plants and electrical maintenance companies can use the DC Resistance Tester to test the resistance of power cables and wires. This can help them identify any potential issues and ensure the safety of their electrical systems.

• Brand Name: SAIMR
• Model Number: SMR230
• Place of Origin: China
• Minimum Order Quantity: 1 set
• Price: To be negotiated
• Packaging Details: Packing in wooden crates
• Delivery Time: 30 work days
• Payment Terms: To be negotiated
• Supply Ability: To be negotiated
• Accuracy: 0.01%
• Comparator: 10-bit Sorting, High/Low/Low Sorting
• Number of Channels: One/24PH/48PH
• Test Mode: 4-wire or 2-wire (switchable)
• Dimensions: 325*215*96.5mm

With an accuracy of 0.01%, the DC Resistance Tester can provide highly precise measurements for various types of resistances. Its 10-bit sorting comparator allows for efficient sorting of components, with options for high, low, and low sorting. It also has the capability to test one, 24PH, or 48PH channels, making it suitable for a wide range of testing needs.

The test mode can be easily switched between 4-wire and 2-wire, providing flexibility for different testing requirements. The compact dimensions of 325*215*96.5mm make it easy to transport and store, while still providing a large enough testing area for accurate measurements.

Overall, the SAIMR SMR230 DC Resistance Tester is a versatile and reliable testing equipment that can be used in various industries. With its high accuracy, efficient sorting, and flexible testing options, it is a valuable tool for ensuring the quality and safety of various products and systems.

The difference between four-wire resistance measurement and two-wire resistance measurement is mainly in the connection method of the measurement circuit and the measurement accuracy. Two-wire resistance measurement is to measure by connecting the power supply and the measuring instrument to both ends of the resistance to be measured. This method is simple and quick, but there will be certain measurement errors due to the presence of wire resistance and contact resistance in the measurement circuit, especially in high-precision measurements or measurements of large resistance values. Four-wire resistance measurement uses an additional two wires, one for supplying current and the other for measuring voltage. By connecting separately to both ends of the resistance to be measured, the influence of wire resistance and contact resistance on the measurement results can be eliminated, and the measurement accuracy can be improved. Four-wire resistance measurement is usually used in occasions where high-precision measurement is required, such as laboratory tests, parameter measurements of electronic components, etc. In general, four-wire resistance measurement has higher measurement accuracy than two-wire resistance measurement, but more wires need to be connected and more operation steps are required in the measurement process. The choice of which measurement method depends on the specific application requirements and measurement requirements.

Packing and Shipping:

Our DC Resistance Tester is carefully packaged to ensure safe delivery to our customers. The packaging includes:

• Sturdy cardboard box with foam inserts to protect the product during shipping
• Plastic wrapping to prevent any scratches or damage to the product
• User manual and warranty information included in the package

For shipping, we offer the following options:

• Standard shipping: 3-5 business days delivery time
• Expedited shipping: 1-2 business days delivery time
• International shipping available upon request

Once your order is processed, you will receive a confirmation email with a tracking number for your shipment.

Please note that any additional customs or import taxes may apply for international orders and are the responsibility of the customer.

If you have any special packaging or shipping requests, please contact our customer service team for assistance.

Thank you for choosing our DC Resistance Tester. We hope it meets your expectations and provides reliable results for all your testing needs.

FAQ:

• Q: What is the brand name of this product?
  A: The brand name of this product is SAIMR.
• Q: What is the model number of this product?
  A: The model number of this product is SMR230.
• Q: Where is this product made?
  A: This product is made in China.
• Q: What is the minimum order quantity for this product?
  A: The minimum order quantity for this product is 1 set.
• Q: What is the price for this product?
  A: The price for this product is negotiable.
• Q: How is this product packaged?
  A: This product is packaged in wooden crates.
• Q: How long is the delivery time for this product?
  A: The delivery time for this product is 30 work days.
• Q: What are the payment terms for this product?
  A: The payment terms for this product are negotiable.
• Q: What is the supply ability for this product?
  A: The supply ability for this product is negotiable.
