High-Performance Resistance Measurement Device with LCD Display and Included Software
Battery Internal Resistance Tester
Product Description:
Battery Internal Resistance Tester
This Battery Internal Resistance Tester is a high-precision measuring device designed for testing the internal resistance of batteries. It is an essential tool for battery manufacturers, maintenance technicians, and end-users to ensure the quality and performance of batteries.
Product Overview
The Battery Internal Resistance Tester is designed with advanced technology to provide accurate and reliable results. Its compact and portable design makes it easy to carry around and use in various locations.
Calibration
The Battery Internal Resistance Tester is equipped with a short-circuit zeroing function that allows for calibration within the full range. This feature ensures precise and stable measurements, making it a highly efficient and dependable testing device.
Test Rate
The tester offers four different test rates: 100, 50, 20, and 3 times per second, giving users the flexibility to choose the appropriate rate for their specific testing needs. This feature also allows for faster testing and increased productivity.
Voltage Range
The Battery Internal Resistance Tester has a wide voltage range, from 10µV to 1000V, making it suitable for testing various types of batteries. This feature makes it a versatile testing device for different industries, such as automotive, aerospace, and renewable energy.

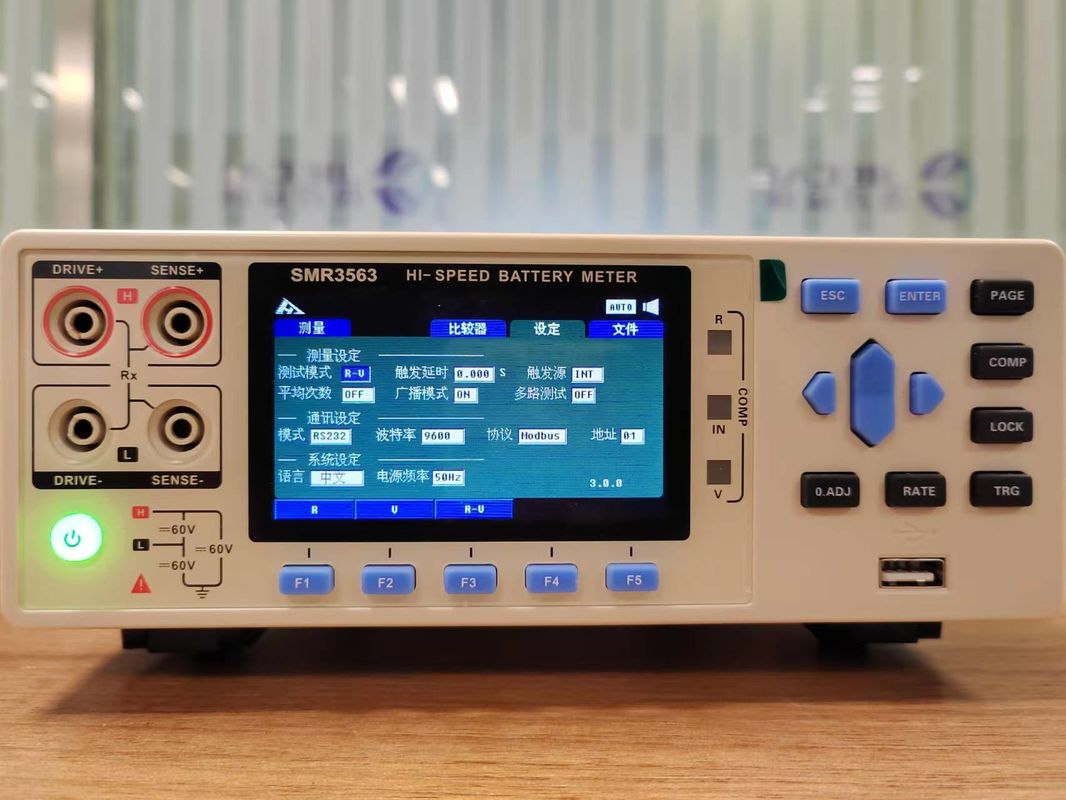

Display
The tester is equipped with a high-resolution LCD display that provides clear and easy-to-read results. The display also shows the battery's voltage and the internal resistance simultaneously, allowing for a quick and comprehensive analysis of the battery's condition.
Range
The Battery Internal Resistance Tester offers a seven-gear full range automatic or manual test mode, providing users with more flexibility and control over their testing process. This feature makes it suitable for various applications, from basic battery testing to more advanced and precise measurements.
Key Features
- High-precision and reliable measurements
- Compact and portable design
- Short-circuit zeroing calibration
- Four different test rates
- Wide voltage range
- High-resolution LCD display
- Seven-gear full range automatic or manual test mode
In conclusion, the Battery Internal Resistance Tester is a top-of-the-line battery resistance meter and internal resistance testing device. Its advanced features and capabilities make it a must-have tool for any industry that relies on batteries, providing a comprehensive and efficient battery resistance checking system.
Features:
- Product Name: Battery Internal Resistance Tester
- Test Rate: 100, 50, 20, 3 times Per Second
- Accessories:
- Test Clips
- Power Cords
- Optional Test Pens
- Multiple Wires For Multi-channel Models
- Power Supply: 100V AC-256V AC 50HZ/60HZ
- Operating Temperature: 0-40°C
- Voltage Accuracy: 0.01%
- Internal Resistance Testing Device
- Battery Resistance Sensing Tool
- Resistance Measurement Device
Technical Parameters:
| Technical Parameters |
Values |
| Product Name |
Battery Internal Resistance Tester |
| Calibration |
Short-circuit Zeroing Within The Full Range |
| Comparator |
30 Sets Of Records, 4 Levels Of Sorting, Level Counting |
| Voltage Range |
10µV-1000V |
| Interface |
Handler Interface, RS-232/485, Ethernet Interface, USB Flash Drive Interface |
| Range |
Seven-gear Full Range Automatic Or Manual Test Mode |
| Display |
LCD |
| Power Supply |
100V AC-256V AC 50HZ/60HZ |
| Software |
Included |
| Resistance |
0.1µΩ-3KΩ |
| Operating Temperature |
0-40°C |
| Key Features |
| Battery Resistance Sensing Tool |
| Battery Resistance Measure |
| Battery Resistance Measure Device |
Applications:
Brand Name: SAIMR
Model Number: SMR363/A/B/D
Place of Origin: CHINA
Minimum Order Quantity: 1 SET
Price: To be negotiated
Packaging Details: Packing in wooden crates
Delivery Time: To be negotiated
Payment Terms: To be negotiated
Supply Ability: To be negotiated
Test Rate: 100, 50, 20, 3 times Per Second
Product Name: SMR363/A/B/D
The Battery Internal Resistance Tester, also known as Battery Resistance Meter, Battery Resistance Checking System, Battery Resistance Measure Device, is a professional testing instrument designed and produced by SAIMR in China. It is used for measuring the internal resistance of various types of batteries, including lead-acid, nickel-cadmium, nickel-metal hydride, and lithium-ion batteries.
The SMR363/A/B/D is suitable for use in a variety of applications, including battery production, research and development, and quality control. It is an essential tool for ensuring the performance and reliability of batteries in various industries such as automotive, telecommunications, aerospace, and renewable energy.
The Battery Internal Resistance Tester has a wide operating temperature range of 0-40°C, making it suitable for use in different environments. It also features short-circuit zeroing within the full range for accurate and precise measurements. The device is equipped with a high-speed comparator that can store up to 30 sets of records and has 4 levels of sorting and level counting capabilities.
The SMR363/A/B/D offers a variety of test rates, including 100, 50, 20, and 3 times per second, to meet the specific needs of different users. The product is easy to use and has a user-friendly interface, making it suitable for both professionals and beginners.
With its high accuracy, fast testing speed, and reliable performance, the Battery Internal Resistance Tester from SAIMR is a must-have tool for anyone working with batteries. It is designed to provide accurate and efficient testing results, helping users to save time and improve productivity. Don't hesitate to choose the SMR363/A/B/D for all your battery resistance testing needs.
Customization:
Battery Internal Resistance Tester Customization Service
Brand Name: SAIMR
Model Number: SMR363/A/B/D
Place of Origin: CHINA
Minimum Order Quantity: 1 SET
Price: To be negotiated
Packaging Details: Packing in wooden crates
Delivery Time: To be negotiated
Payment Terms: To be negotiated
Supply Ability: To be negotiated
Trigger mode: Internal Trigger, Manual Trigger, External Trigger, Bus Trigger
Voltage Range: 10µV-1000V
Range: Seven-gear Full Range Automatic Or Manual Test Mode
Comparator: 30 Sets Of Records, 4 Levels Of Sorting, Level Counting
Accessories: Test Clips, Power Cords, Optional Test Pens, Multiple Wires For Multi-channel Models
Key Features:
- Battery Resistance Measure
- Battery Resistance Sensing Tool
- Battery Resistance Detection
- Multiple Trigger Modes for Versatile Testing
- Wide Voltage Range for Accurate Measurements
- Automatic or Manual Test Modes for Flexible Testing Options
- Efficient Comparator Function for Convenient Data Analysis
- Comes with Necessary Accessories for Easy Setup and Use
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is SAIMR.
- Q: What is the model number of this product?
- A: The model number of this product is SMR363/A/B/D.
- Q: Where is this product manufactured?
- A: This product is manufactured in China.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 1 set.
- Q: Is the price negotiable for this product?
- A: Yes, the price for this product is negotiable.
- Q: How is this product packaged?
- A: This product is packaged in wooden crates.
- Q: How long is the delivery time for this product?
- A: The delivery time for this product is negotiable.
- Q: What are the accepted payment terms for this product?
- A: The payment terms for this product are negotiable.
- Q: What is the supply ability for this product?
- A: The supply ability for this product is negotiable.
