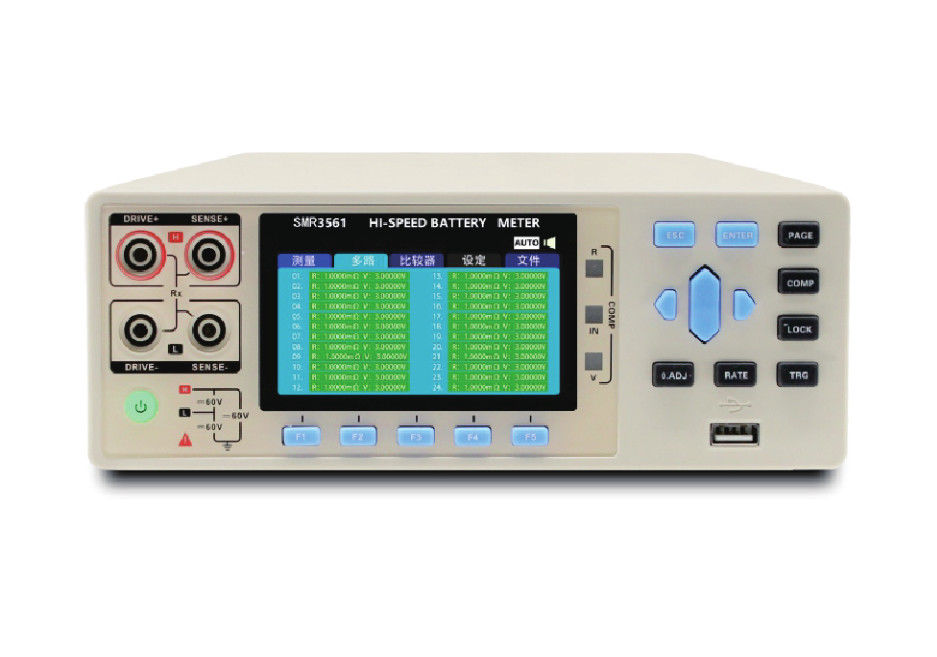

SMR361 High Precision Desktop Battery Internal Resistance Tester

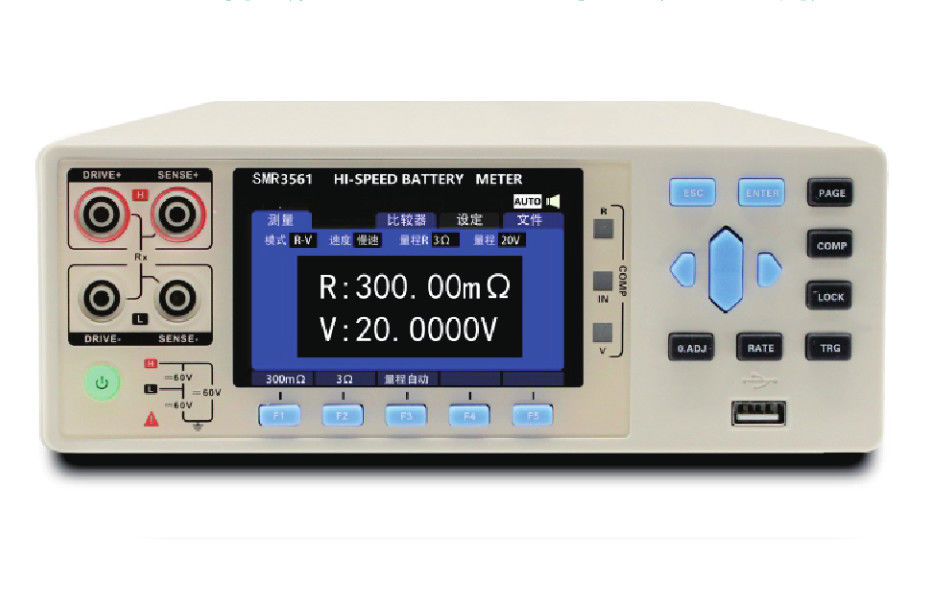

SMR361 High Precision Desktop Battery Internal Resistance Tester

1.DESCRIPTION

The SMR361 high precision battery internal resistance tester is designed for new measurement requirements in the battery industry. It is suitable for low resistance batteries, high capacity lithium battery packs and fast product sorting on the production line. With the technical advantages of SAIMR Electronic Technology in battery internal resistance testing for many years, the SMR361 is capable of providing a high resolution of 0.01 mΩ with a maximum test voltage of 20V and a minimum feedback time of 15mS.Equipped with standard features RS232 interface and HANDLER interface, SMR361 offers the automatic battery measurement function.

2.FEATURE

High-speed sampling test with a minimum feedback time of 15ms for fast sorting on the production line
The highest test voltage reaches 20V, which is used for performance test of battery pack
High resolution resistance and voltage
Strong anti-interference ability
Support U disk to export data
Maximum test speed 66 times / sec

3.APPLICATION

High precision lithium battery internal resistance, voltage detection
Support automatic test equipment to complete automatic detection of battery internal resistance and voltage
Battery degradation status and life assessment
Super capacitor ESR test

4.SPECIFICATION

Model	SMR361
Display	3.5 inch TFT-LCD display
Measurementparameters	ESR,DCV
Resistanceaccuracy	0.50%
Resistance range	0.01mΩ~3.1Ω
Voltage accuracy	0.01%
Voltagerange	0.1mV~20.0000V
Signal Source	Measurement current frequency:1kHz;Open circuit voltage:7V;Test current:<10mA
Measurementrange	2 different ranges-300mQ,32;Automatic and manual test mode in full range
Measuring speed	66 meas/sec.,30 meas/sec.,10 meas/sec.,3 meas/sec.
Calibration	Short-circuit reset for all ranges;REL function
Comparator	30 sets ofrecords,4 grades of sorting,count number of sorting in each grade
Trigger mode	Internal/manual(optional external trigger)
Interface	RS-232C,Handler(PLC interface),LAN(optional)
Power supply	Voltage:90VAC~250VA;Frequency:47Hz 400Hz;Power:max 10VA
Dimension &weight	325mm(L)x215mm(W)x96.5mm(D);Weight:3kg
Accessories	PB36 connector,9363A test clip,9800
