Name: 15VA 3.5 Inch TFT LCD Display Internal Resistance Tester For Batteries
Brand: Suzhou Saimr Electronics Technology Co., Ltd.
SKU: SMR363/A/B/D
Price: Negotiable USD
Availability: InStock

Home > products > Battery Internal Resistance Tester >

15VA 3.5 Inch TFT LCD Display Internal Resistance Tester For Batteries

15VA internal resistance tester for batteries

3.5 inch TFT LCD battery ir tester

15VA battery ir tester

Place of Origin:

CHINA

Brand Name:

SAIMR

Model Number:

SMR363/A/B/D

Request A Quote

15VA 3.5 Inch TFT LCD Display Internal Resistance Tester For Batteries

Product Details

Accuracy:

±(0.5%+5d)

Dimensions:

160mm X 105mm X 55mm

Display:

LCD

Guarantee:

1 Year For Free

Guide:

Taiwan Hiwin

Input Power:

AC220V/50HZ 1KW

Model:

20V20Ω-CR-20V2000mΩ

Plc:

Panasonic FP-X Series

Power Supply:

4 X AA Batteries

Range:

20V / 2000mΩ

Relative Humidity:

≤80%

Resistance:

200 MΩ~1999 MΩ± 0.2%FS Resolution: 1mΩ

Series:

BVIR

Voltage:

5~49.99V ±0.1%FS Resolution:10 MV

Weight:

Approx. 300g

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

1000-3000$ per set

Delivery Time

30 work days

Payment Terms

T/T

Supply Ability

200set/year

UPS Specialized Handheld Battery Internal Resistance Tester

Get Best Price

Bus Trigger Battery Internal Resistance Tester 100V AC-256V AC 50HZ/60HZ

Get Best Price

Ethernet Interface Battery Internal Resistance Tester With LCD Display

Get Best Price

Seven Gear Full Range Automatic Internal Battery Resistance Tester 100V AC-256V AC 50HZ/60HZ

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

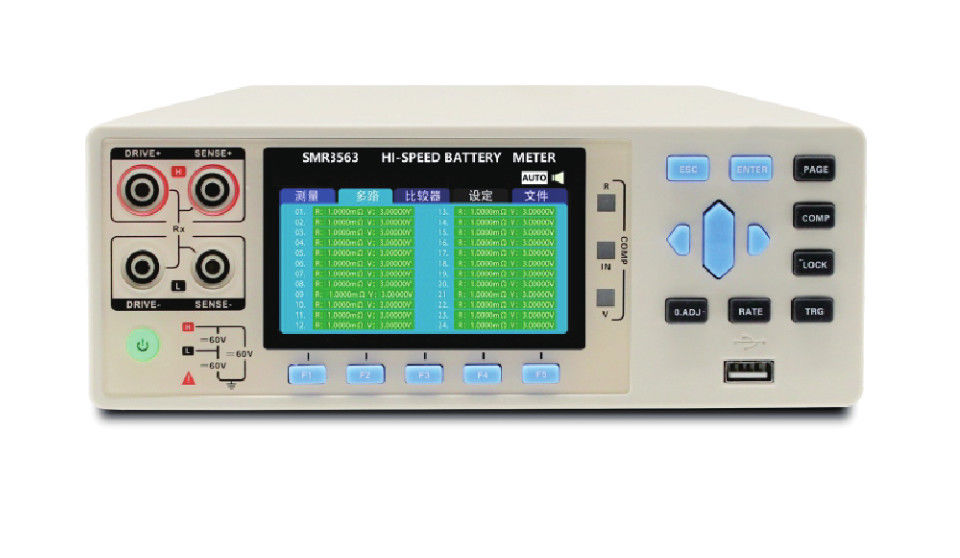

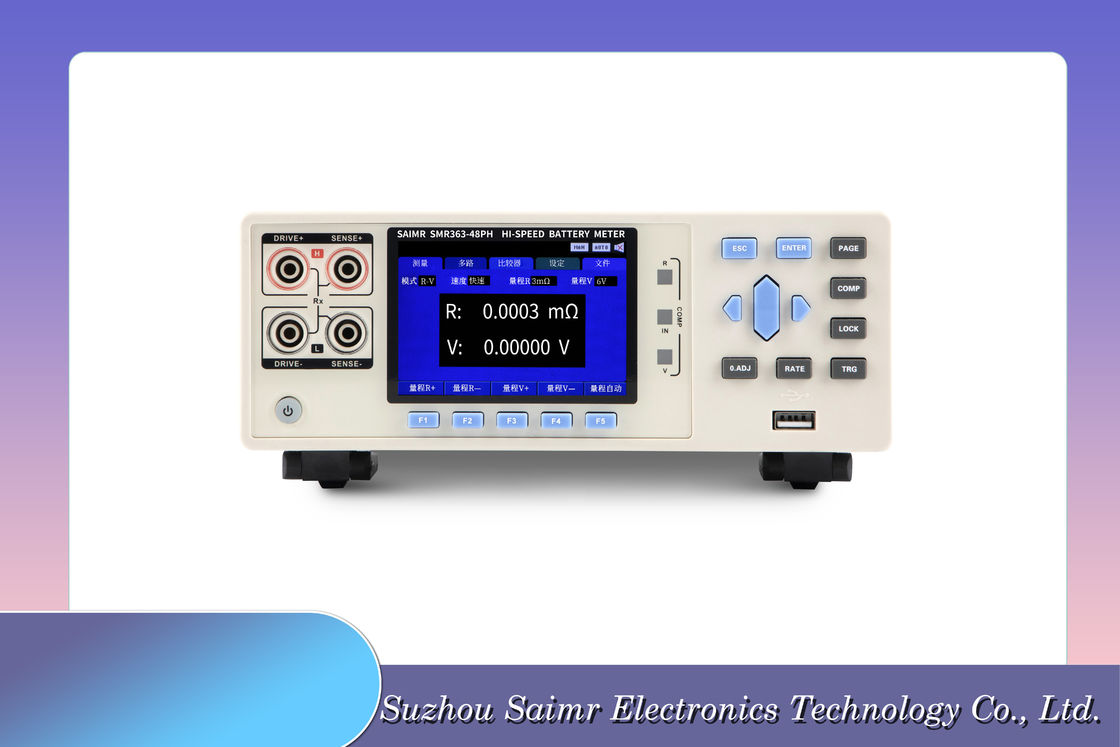

SMR363 High-speed measurement for low-resistance batteries

SMR363 series battery tester

1.OVERVIEW

The SMR363 battery tester series is designed to meet the new measurement requirements of the battery industry, specializing in low-resistance batteries, large-scale lithium battery packs, and fast product sorting on production lines. This series can simultaneously measure internal resistance (IR) and battery voltage (OCV) at high speed. It boasts high resolution, good stability, short test cycles, exquisite appearance, powerful functions, and various types of interfaces, making it suitable for product development and automation production lines. Thanks to SAIMRtech's many years of technological advantage in battery internal resistance testing, the SMR363 series offers a high resolution of 0.1 µΩ and a minimum resolution of 10V. and minimum resolution of 10V.

2.FEATURES

● The 363 series and 364 have the same appearance and size, only their test voltage is diﬀerent

● Resistance minimum resolution 0 . 1uΩ, minimum voltage resolution 10uV

● Minimum test cycle only 10mS

● The maximum test voltage up to 1000V (SMR364 only)

● Standard various interfaces for automatic test equipment

● Strong anƟ -interference ability

● AC four-terminal method, measure low- resistance in high-precision

● Available automatic test function

3.Data Testing

Model		SMR363	SMR363A	SMR363B	SMR363D
Display		3 . 5 inch TFT- LCD display
Measurement parameters		ACR, DCV
Resistance	Accuracy	0 . 30%
	Range	0 . 1μΩ ~3kΩ
Voltage	Accuracy	0 .01%
	Range	10μV ~60V	10μV- 300V	10μV-800V	10μV- 1000V
Signal Source		Measurement current frequency:1kHz; Open circuit voltage:<5V;Test current:<100mA
Range		diﬀerent ranges-3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ;Auto and manual modes are available in each range
Measuring speed		100 meas/sec ., 50 meas/sec ., 20 meas/sec ., 3 meas/sec .
CalibraƟon		Short-circuit reset for all ranges;
Comparator		30 sets of data records, 4 bins sorƟng, bin count
Others		data/ report save, USB disk export,
Trigger mode		Internal/ manual/external/ bus trigger

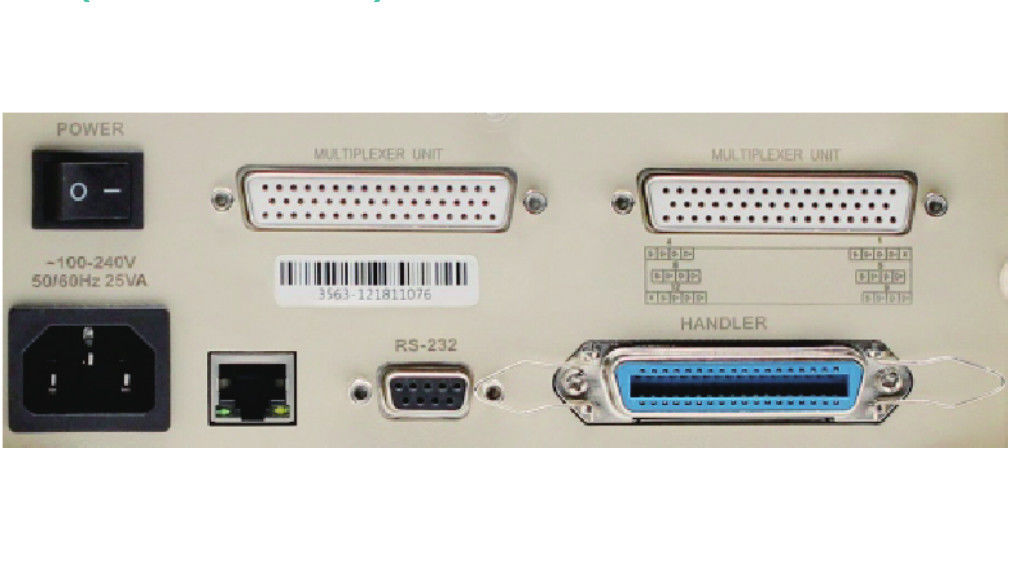

Interface		RS- 232/485, Handle (PLC interface), USB, Ethernet
Power supply		Voltage: 100VAC ～256VAC; Frequency: 50Hz ～60Hz;
Power( max)		15VA
Dimension(L W D)		325 mm215 mm96 . 5 mm
Weight		3 kg
Standard accessories		SMR9363A test clip,SMR9800 communication cable, PB36 connector, power cord

4.PRODUCTS
