Name: RS232C Insulation Resistance Tester 440mm X 88mm X 400mm
Brand: Suzhou Saimr Electronics Technology Co., Ltd.
SKU: SMR260
Price: Negotiable USD
Availability: InStock

Home > products > DC Resistance Tester >

RS232C Insulation Resistance Tester 440mm X 88mm X 400mm

RS232C resistance tester

RS232C insulation resistance tester

insulation resistance tester 440mm x 88mm x 400mm

Place of Origin:

CHINA

Brand Name:

SAIMR

Model Number:

SMR260

Request A Quote

RS232C Insulation Resistance Tester 440mm X 88mm X 400mm

Product Details

Dimensions:

440mm X 88mm X 400mm

Interface:

RS232C

Measurement Range:

0.01 MΩ To 300 KΩ

Number Of Channels:

8-48PH

Weight:

2.5kg

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

1000-3000$ per set

Delivery Time

30 work days

Payment Terms

T/T

Supply Ability

200set/year

DC Resistance Tester

Get Best Price

NTC DC Resistance Tester -10C -60C Attachments Test Clamp

Get Best Price

IO Interface High Voltage Tester for -10C -60C Temperature Range

Get Best Price

4-Wire DC Resistance Tester for High Accuracy Testing

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

The SMR260 multi-channel resistance tester is a high-precision, wide-range, multi-channel resistance

1.DESCRIPTION

The SMR260 multi-channel resistance tester is a high-precision, wide-range, multi-channel resistance tester with a compact plug-in card design. It can be equipped with up to 6 channel test cards, and each test card can perform scanning tests on 8 resistors, for a total of 48 channel resistance tests. This tester is controlled by a high-performance ARM microprocessor, and a large true-color 4.3-inch LCD can display the resistance values of 48 channels simultaneously. Each channel can be independently set with a comparator to test resistors from 10 μΩ to 300 KΩ, displaying 30,000 digits. At the same time, it also has an optional temperature compensation function to adapt to different test requirements. When applied to automated equipment, the SMR260 multi-channel resistance tester can use the RS232C and HANDLER interfaces to output GD/NG signals to improve the production automation test capability.

2.PARAMETERS

Model	SMR260
Test parameter	DC resistance
Test Mode	Four-wire
Test Range	0.01MΩ-300.00KΩ
Test Accuracy	0.05%rdg.±5dgt.
Channel Number	8-channel measurement card, with serial scanning within and parallel between.
Scale	Full-scale automatic or manual test mode
Testing speed	30 times/sec, 10 times/sec, 3 times/sec
Display result	Up to 48-channel overview display
Temperature compensation	Accuracy: 1°C, Measurement range: 0-80°C
Calibration	Short-circuit zeroing within the full range
Comparator	Can be matched with alarm cards, and each channel can be sorted independently.
Interface	RS-232C interface (SCPI protocol)
Power Supply:	Voltage: 90VAC-250VAC; Frequency: 47Hz-400Hz; Rated Power: 10VA (Host) 2VA (Measurement Card)
Dimensions:	Dimensions: 263mm (L) * 249mm (W) * 102mm (H); 2.5kg
Accessories	Power cord, multi-channel test cable

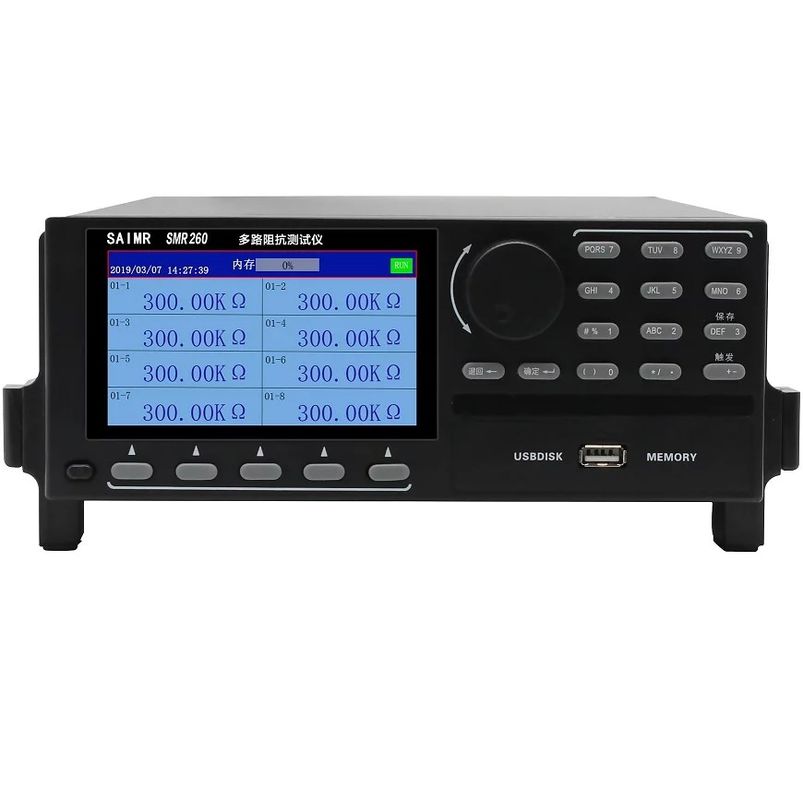

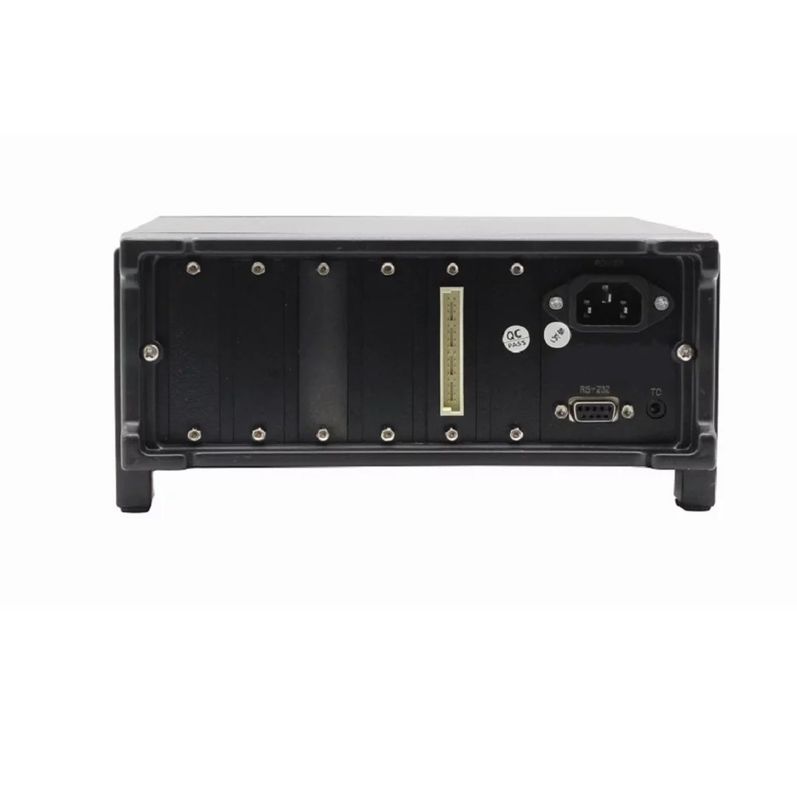

3.Products Pictures

RS232C Insulation Resistance Tester 440mm X 88mm X 400mm 0
