Product Description

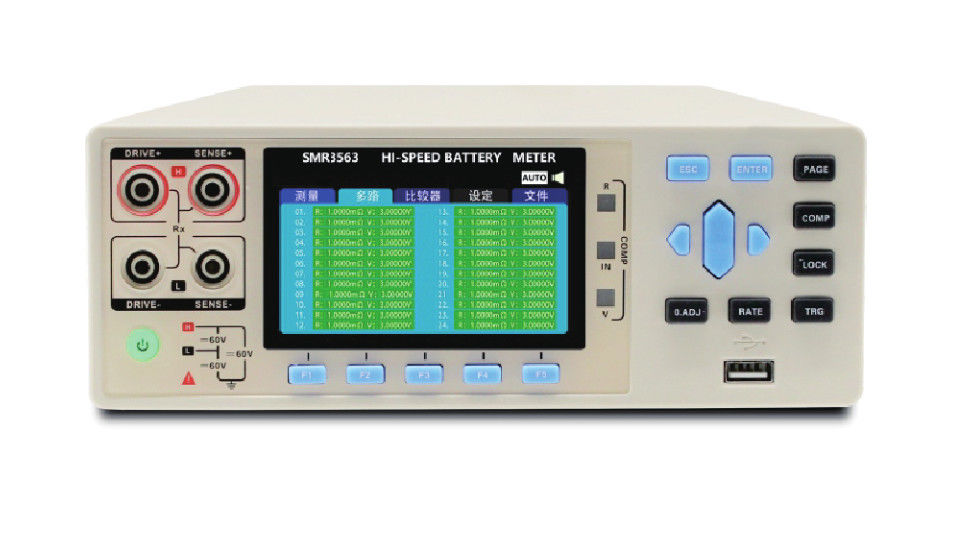

SMR363 AC Four-Terminal Battery Internal Resistance Tester 0.1μΩ~3kΩ 0.30% Accuracy

Advantages

The SMR363 series is a high-precision, wide-range, battery internal resistance tester controlled by a high-performance microprocessor.

- It has high resolution, good stability, fast testing speed, and rich interfaces, and is suitable for high-speed mass production inspection of various batteries and research and development testing of batteries.

- The minimum internal resistance resolution is 0.1 μΩ, the minimum voltage resolution is 10 μV, and the minimum test cycle only requires 10 mS.

- The SMR363 series only tests different voltages, and the maximum test voltage can reach 1000V.

- The SMR363-A (24PH/48H) multi-channel battery tester can quickly complete the internal resistance and voltage sorting tests of up to 24 channels of batteries.

- It has an automatic test function and comes with various interfaces for automated testing.

- The equipment has strong anti-interference ability, uses the AC four-terminal method, and can measure low resistance with high precision.

Specification

Model	SMR363	SMR363-A	SMR363-B	SMR363-D
Voltage Range	10μV~60V	10μV-300V	10μV-800V	10μV-1000V
Voltage Accuracy	0.01%
Resistance	0.1μΩ~3kΩ
Resistance Accuracy	0.30%
Range	3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3kΩ,7 ranges of full-scale automatic or manual test mode
Test Speed	100 times/sec,50 times/sec,20 times/sec,3 times/sec
Calibration	Full-scale short circuit reset within the range
Comparator	30 sets of records,4 levels of sorting,counting Trigger
Trigger Mode	Internal trigger,manual trigger,external trigger,bus trigger Interface

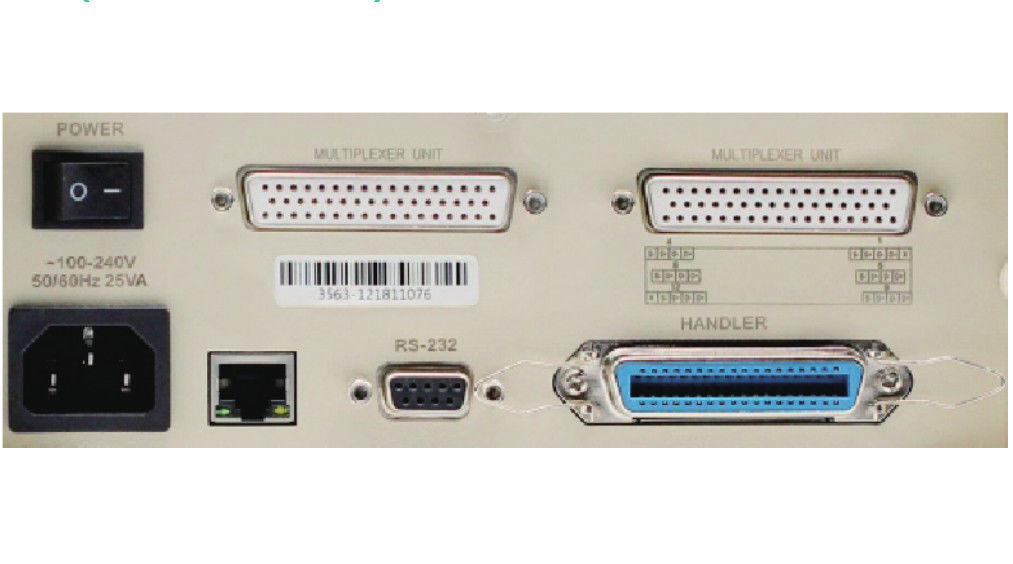

Interfaces	Handler,RS-232/485,Ethernet, U disk
Power Supply	Voltage:100V AC~256V AC,Frequency:50Hz/60Hz
Dimensions	325 mm215 mm96.5 mm
Weight	3kg
Accessories	Testing clips, power cord, optional testing pen, multi-channel models with multiple lines
