Name: Single Channel / 48PH / 96PH Insulation Resistance Meter 10 Levels Of Sorting
Brand: Suzhou Saimr Electronics Technology Co., Ltd.
SKU: SMR220
Price: Negotiable USD
Availability: InStock

Home > products > DC Resistance Tester >

Single Channel / 48PH / 96PH Insulation Resistance Meter 10 Levels Of Sorting

Single Channel insulation resistance meter

48PH nsulation resistance meter

96PH insulation resistance meter

Place of Origin:

CHINA

Brand Name:

SAIMR

Model Number:

SMR220

Request A Quote

Single Channel / 48PH / 96PH Insulation Resistance Meter 10 Levels Of Sorting

Product Details

Name:

One-channel Resistance Tester

Dimension:

155mm*70mm*30mm

Operating Temperature:

-10~60℃

Test Accuracy:

0.0002

Payment & Shipping Terms

Minimum Order Quantity

1 set

DC Resistance Tester

Get Best Price

NTC DC Resistance Tester -10C -60C Attachments Test Clamp

Get Best Price

IO Interface High Voltage Tester for -10C -60C Temperature Range

Get Best Price

4-Wire DC Resistance Tester for High Accuracy Testing

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

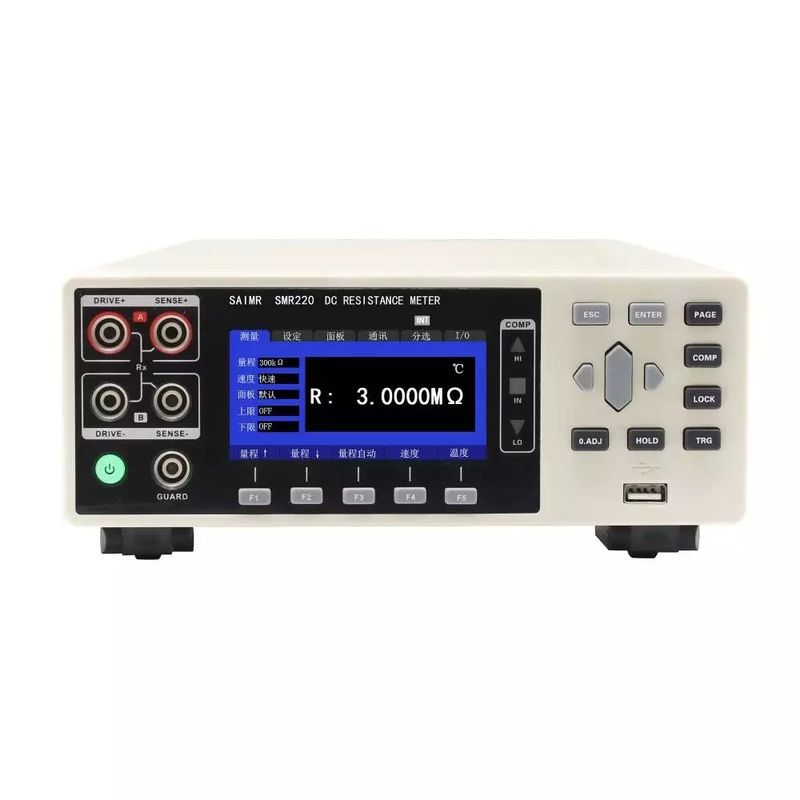

SMR220 Single Channel DC Resistance Tester ,0.1uΩ~3.3MΩ 0.0002 Accuracy

Single channel DC resistance tester is used in:

Various medium, high, and low value resistors
Switch contact resistance
Connector contact resistance
Relay wire packs and electric shock resistors
Transformers, inductors, motors, deflection coils

Features

1uΩ~3.3MΩ test range
0.02% basic accuracy
Fully meet most resistance test applications
Anti-interference design, can complete accurate testing in various complex electromagnetic environments, fast and high-precision testing
Rich interfaces: RS232/RS485/LAN and I/O interface, suitable for automation equipment with computer software
Multi-channel 48PH/96PH channel resistance test, support two-wire four-wire switching

Resistance tester	SMR220
Number of channels	Single channel	48PH	96PH
Test mode	4/2-wire (switchable)
Test item	DC resistance, temperature
Test range	0.1uΩ~3.3MΩ (10 ranges)
Resolution	0.1μΩ
Test accuracy	0.0002
Test speed	Fast (50HZ: 21ms; 60HZ: 18ms), slow (200ms)
Temperature	Range: -10°C~60°C Accuracy: ±1°C
Correct	Zero short-circuit clearance in full scale
Comparator	10 levels of sorting; Support HIGH/IN/LOW sorting
Other functions	Temperature compensation function; Power frequency setting

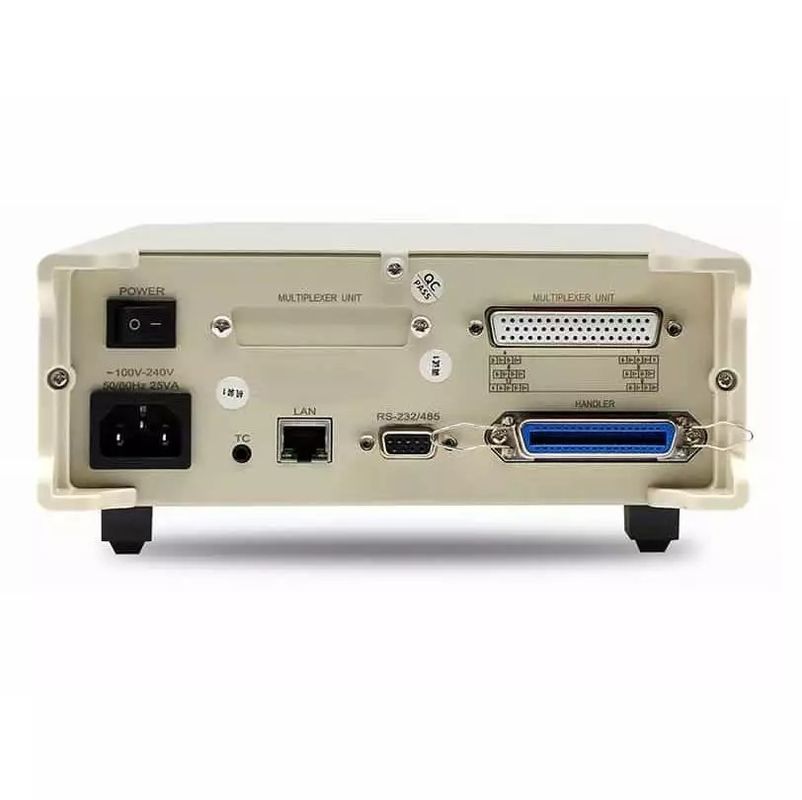

Connectors	External I/O, LAN , RS232
Size	325mm215mm96.5mm(LWH)
Weight	2kg
Annex	SMR220-1, SMR220-3, power cord
