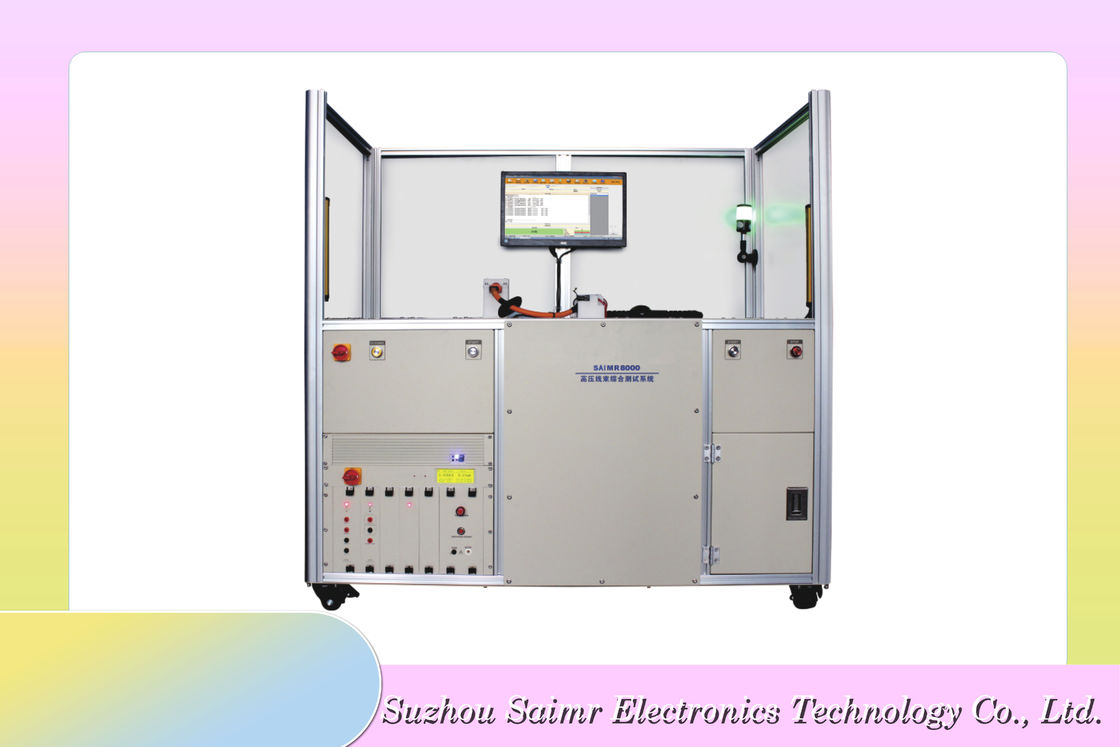

Wire/Cable Harness Testing Equipment
Product Description:
The Wire Harness Testing Equipment is a state-of-the-art product designed to test wire harnesses for functionality and quality. This equipment is an essential tool for manufacturers, as it ensures that their wire harnesses meet the highest standards of performance and safety.
The Wire Harness Testing Equipment is designed for testing wire harnesses used in various industries such as automotive, aerospace, and electronics. It is an essential tool for manufacturers to ensure the functionality and quality of their wire harnesses before they are installed in their products.
Wire Harness Tester - The Ultimate Solution
The Wire Harness Testing Equipment is the ultimate solution for wire harness testing. It is equipped with the latest technology and features to provide accurate results and ensure the reliability of wire harnesses. With its advanced capabilities, this tester is a must-have for any manufacturer looking to produce high-quality wire harnesses.
Features:
- Product Name: Wire Harness Testing Equipment
- Usage: Testing Wire Harnesses For Functionality And Quality
- AC Leakage Current Test: 1µA-10mA/±3%
- Certifications: CE, ISO9001
- DC Leakage Current Test: 0.1µA-5mA/±3%
- Dimensions: 535*482*355mm
- Connector Cable Test Analyzer
- Wiring Harness Quality Control Machine
- Electrical Wire Testing Device
Technical Parameters:
| Product Name |
Wire Harness Testing Equipment |
| Product Type |
Electrical Connector Validation Equipment |
| Application |
Wiring Harness Quality Control Machine, Wire Bundle Verification System |
| AC Leakage Current Test |
1µA-10mA/±3% |
| Standard Configuration |
Instruction Manual, Power Cord, Network Cable, And Pointing Pen |
| Display |
PC |
| AC Withstand Voltage Test |
30V-3000V/±3% |
| DC Leakage Current Test |
0.1µA-5mA/±3% |
| Certifications |
CE, ISO9001 |
| Weight |
30kg |
| Testing Modes |
Manual, Semi-automatic, Fully Automatic |
| Power Supply |
220V AC |
| Dimensions |
535*482*355mm |
Customization:
SAIMR7000 Wire Harness Testing Equipment - Customized Services
Brand Name: SAIMR
Model Number: SAIMR7000
Place of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1 SET
Price: To be negotiated
Packaging Details: Packing in wooden crates
Delivery Time: To be negotiated
Payment Terms: To be negotiated
Supply Ability: To be negotiated
Solenoid valve: 50mA-2A 02-40V (continuous/pulse)
OS Test(5V): 2kΩ-200kΩ/±5%
Power Supply: 220V AC
Points: 16/32/48/64...20480PIN
Display: PC
This Wire Harness Testing Equipment, also known as the SAIMR7000, is a top-of-the-line quality control machine for testing the functionality and reliability of wiring harnesses. With our customized services, we ensure that your specific needs and requirements are met, making this the perfect solution for cable assembly testing and connector cable analysis.
Packing and Shipping:
Packaging and Shipping for Wire Harness Testing Equipment
Our Wire Harness Testing Equipment is carefully packaged and shipped to ensure safe arrival and proper functioning upon delivery.
Packaging:
- Each unit is individually packaged in a sturdy, protective box.
- The box is sealed with high-quality tape to prevent any damage during transit.
- Inside the box, the equipment is securely wrapped in bubble wrap to provide additional cushioning.
- Any delicate components are further protected with foam inserts.
- The box is labeled with the product name, model number, and handling instructions.
Shipping:
- We offer both domestic and international shipping options.
- All shipments are made through reputable and reliable couriers.
- For international orders, we ensure that all necessary customs documentation is properly completed.
- Customers can choose their preferred shipping method at checkout.
- Once the order has been processed and shipped, a tracking number will be provided to the customer for monitoring the delivery status.
With our careful packaging and reliable shipping methods, customers can have peace of mind knowing that their Wire Harness Testing Equipment will arrive safely and in excellent condition.
