Name: PWM Amplifier PCB Vehicle Withstanding Voltage Tester High Efficiency
Brand: Suzhou Saimr Electronics Technology Co., Ltd.
SKU: 7751
Price: Negotiable USD
Availability: InStock

Home > products > Insulation Hipot Withstand Voltage Tester >

PWM Amplifier PCB Vehicle Withstanding Voltage Tester High Efficiency

PCB Vehicle Withstanding Voltage Tester

PWM Amplifier Withstanding Voltage Tester

High Efficiency Withstanding Voltage Tester

Place of Origin:

china

Brand Name:

Microtest

Certification:

Model Number:

7751

Request A Quote

PWM Amplifier PCB Vehicle Withstanding Voltage Tester High Efficiency

Product Details

Name:

PCB Vehicle Withstanding Voltage Tester

Channel:

AC Output Voltage:

10v-5000v

AC Voltage Resolution:

AC Voltage Accuracy:

±3% Of Setting ＋5v

Output Frequency:

50/60Hz

DC Output Voltage:

10v-6000v

DC Voltage Resolution:

DC Voltage Accuracy:

±3% Of Setting ＋5v

Insulation Resistance Output Voltage:

10-1000vdc

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

To be negotiated

Packaging Details

Packing in wooden crates

Delivery Time

To be negotiated

Payment Terms

To be negotiated, T/T

Supply Ability

To be negotiated

Automated Test System Programmable Voltage and Insulation Tester

Get Best Price

Hipot And Insulation Resistance Tester

Get Best Price

37428099mm Hipot And Insulation Resistance Testers DC Leakage 6mA

Get Best Price

LCD Display Hipot Equipment Insulation Hipot Withstand Voltage Tester With I/O Interface

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

PCB Vehicle Withstanding Voltage Tester

Overview:

The PCB Vehicle Withstand Voltage Tester has a high efficiency PWM amplifier to isolate the influence of external voltage fluctuations and output a stable high voltage, which enables "safe" and "reliable" measurements even in areas with large voltage fluctuations. The Withstanding Voltage Tester 7631 is a more advanced ADC (Analog to Digital Converter Integrator) than those used for general measurements. In addition to the 32-bit data to improve accuracy, the AC signal processing speed can be increased by tens of times, not only accurate and stable, for AC high voltage and leakage current test time is greatly improved.

Features:

9 Channel Scan Test
Graphic LCD window
Built-in PLC Remote programmable remote control interface
Built-in discharge circuit for safety
AC High Voltage, DC High Voltage, and Insulation Tests available.
Programmable ramp-up time
Built-in RS-232 and USB Device for connecting to a computer.
USB file access, user-friendly interface
True RMS measurement line

Accessory Fixtures:

Standard Accessories
- Power Cord
-High Voltage Test Leads Red and Black(7630)
- High Voltage Test Lead Red (7631)
-D-Sub Foot Switch (F760001)

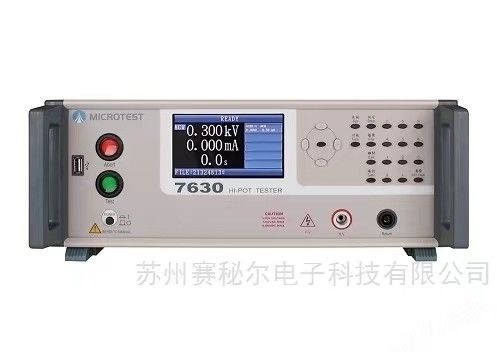

PWM Amplifier PCB Vehicle Withstanding Voltage Tester High Efficiency 0
