Name: Aluminum Electrolytic Capacitors Precision LCR Tester
Brand: Suzhou Saimr Electronics Technology Co., Ltd.
SKU: 6363
Price: Negotiable USD
Availability: InStock

Home > products > LCR Tester >

Aluminum Electrolytic Capacitors Precision LCR Tester

Aluminum Electrolytic Capacitors LCR Tester

Electrolytic Capacitors LCR Tester

Precision LCR Tester

Place of Origin:

China

Brand Name:

Microtest

Certification:

Model Number:

6363

Request A Quote

Aluminum Electrolytic Capacitors Precision LCR Tester

Product Details

Name:

Aluminum Electrolytic Capacitors Precision LCR Tester

Test Frequancy:

10Hz-20kHz

Measurement Frequtsency Point:

Programmable

Minimum Frequency Resolution:

Five-digit

Output Impedance:

100Ω

Basic Accurancy:

±0.05%

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

To be negotiated

Packaging Details

Packing in wooden crates

Delivery Time

30 days

Payment Terms

To be negotiated, T/T

Supply Ability

To be negotiated

Aluminum Electrolytic Capacitors Precision LCR Tester

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

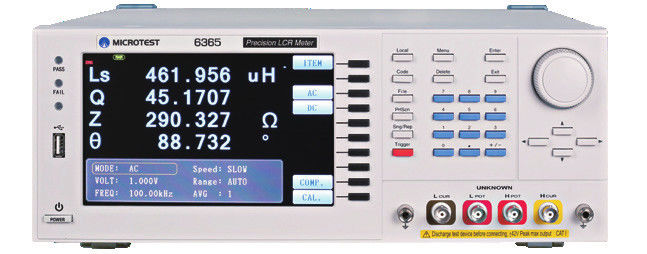

Aluminum Electrolytic Capacitors Precision LCR Tester

Introduction:

 Multi-step measurement with up to 8 steps.
 Measurement in absolute (ΔAbs) or percentage difference (Δ%) from nominal value.
 High-precision measuring fixture with four-wire connection and grounding.
 Fixture zeroing (open/short circuit).
 Bar display for easy determination of variable parts.
 7” LCD color display with 800x480 screen resolution.
 Intuitive user interface with complete measurement functions.

Test frequency:

10Hz~20kHz (6365) ／ 10Hz~100kHz (6364)
10Hz~200kHz (6365) ／ 0.1Hz~200kHz (6365A)
10Hz~500kHz (6366) ／ 0.1Hz~500kHz (6366A)
10Hz~1MHz (6367) ／ 0.1Hz~1MHz (6367A)
 Measurement Voltage: 10mV~2V.
 Basic Measurement Accuracy: 0.1%.

Measurement Category

 Series Inductance (Ls) Parallel Inductance (Lp)
 Series capacitance (Cs) and parallel capacitance (Cp)
 Series Resistance (Rs) Parallel Resistance (Rp)
 Reactance(X) Nano(B)(=1/X)
 Impedance(Z) Conductance(Y)(=1/Z)
 Loss Factor(D) Quality Factor(Q)(=1/D)
 Phase angle (θ)
 Conductance (G)
 DC Resistance (Rdc)

Aluminum Electrolytic Capacitors Precision LCR Tester 0
