200kPa Air Tightness Tester Differential Pressure Test Direct Pressure Test Leakage Test

Air Tightness Tester

Instrument Description.

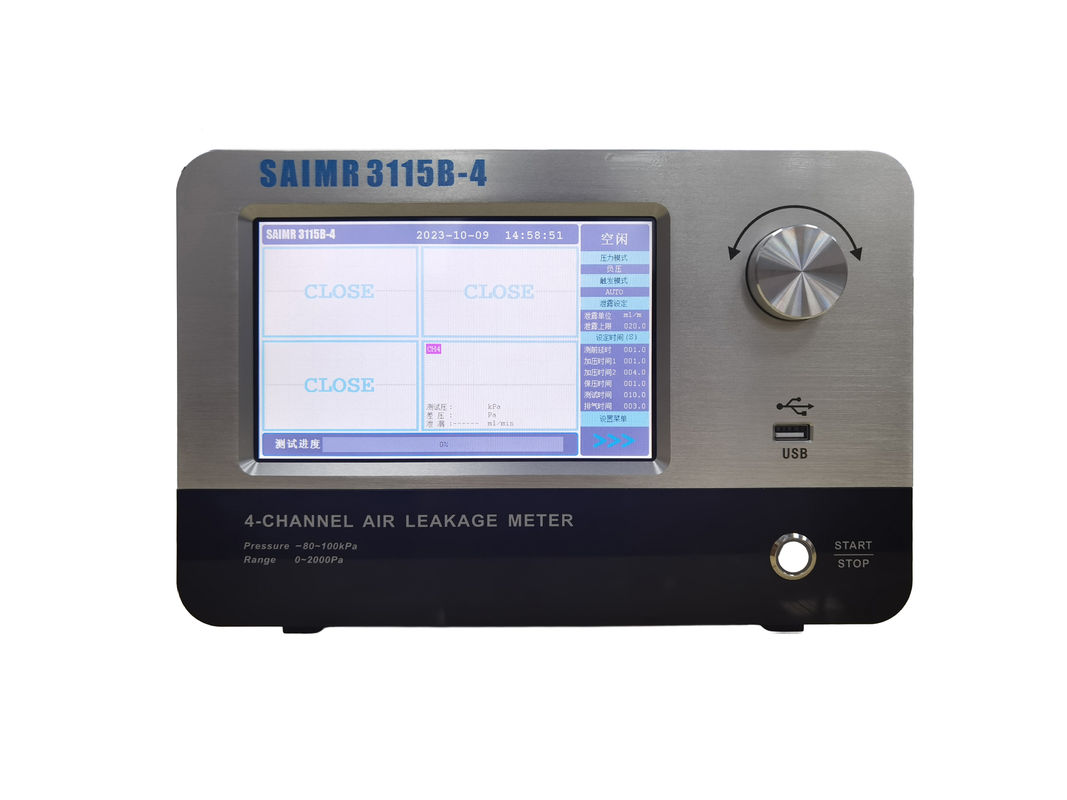

     SAIMR3115B is a differential pressure type airtightness tester for checking the airtightness of various components and finished products.
The SAIMR3115B is a differential-pressure airtightness tester for checking the airtightness of various components and finished products.
  The instrument is equipped with a high sensitivity differential pressure sensor and a pneumatic valve that is not affected by heat, and automatically checks the airtightness of the pneumatic valve during each test.
  This instrument is equipped with a highly sensitive differential pressure sensor and a heat-insensitive pneumatic valve, and automatically checks the operation of the pneumatic valve and the sensitivity of the sensor during each test. The basic circuit consists of a self-test function with excellent functionality and safety.
  The basic circuit consists of a self-check function with excellent functionality and safety.
  This function improves test capability and shortens test time by using the standard error correction preset value function or the error reduction function. It has the ability to adapt to a wide range of test items and to accurately measure
  It can accurately display the test pressure, differential pressure, and leakage amount for a wide range of test items.


Functional Features.

High-performance differential pressure transducer and intelligent Type I air circuit.
Built-in high sensitivity, small volume differential pressure transducer and air circuit are simple and fully functional.
  -Uses a special pneumatic valve that does not generate heat and has a large air flow rate.
  -A cleaning function prevents water, oil, metal chips, etc. from entering the test piece and causing malfunction.
  -Displays the test pressure value and sets the upper and lower limits of the test pressure.
  -Leakage unit (Pa/min or Pa/s), alarm upper and lower limits, unit Pa/min can be set.
During the measurement process, the different curves of measuring pressure and differential pressure are displayed in real time.
Automatically calculates the leakage amount after the measurement is completed and judges whether it meets the standard, displaying 0K/NG.
Detect abnormal leakage in real time during measurement.
When the test pressure value exceeds the set upper and lower limits, the test will be stopped and NG will be displayed on the screen.
Real-time detection of large leakage, when the differential pressure exceeds 2200Pa, the test stops and the screen displays NG.
  -RS232 communication, external expansion I/0 port.
Test data can be stored automatically and exported by USB. Measurement data of different dates can be queried.
