Continuously Adjustable Insulation Resistance Tester Controlled By High Performance Microprocessor

Product Details

Product Name:

Insulation Resistance Tester

Test Program:

Rv/Rs/I/R

500Ω-1000TΩ

Output Voltage:

0-1000v

Test Specification:

500Ω ~9.9X1015Ω , 2mA ~ 0.01pA

Test Speed (MAX):

Fast 5 Times / S, Slow 1 Time / S

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

To be negotiated

Packaging Details

Packing in wooden crates

Delivery Time

30 days

Payment Terms

To be negotiated, T/T

Supply Ability

To be negotiated

Multi Range Insulation Resistance Tester High Performance Processor Controlled

Get Best Price

Display SHORT Wire Digital Insulation Resistance Tester 2Kg

Get Best Price

12MA Constant Current Discharge Insulation Resistance Tester 325x215x96mm Display ContHi ContLo ContHL

Get Best Price

Electrical Insulation Resistance Tester Test Voltage 25V-1000V

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

Insulation Resistance Tester

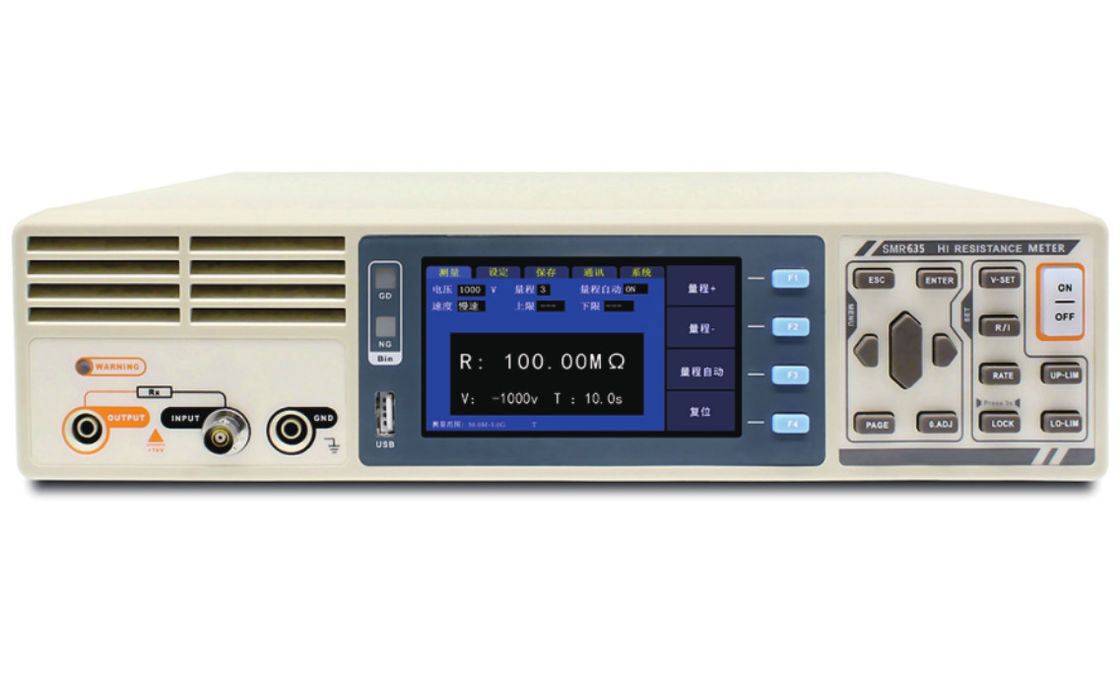

SMR635 is an insulation resistance tester controlled by a high performance microprocessor. It features seven-range testing.

The output voltage is continuously adjustable, enabling the testing of resistances ranging from 500Ω to 9.9*PΩ. The maximum display is 99999, and the test speed can reach up to 5 times per second.

This instrument incorporates a professional sorting function, with 10 sets of settings for data storage and a variety of sorting alarm settings. It is equipped with a Handler interface and is applicable to the automatic sorting system to accomplish the fully automatic pipeline test. Additionally, it has a built-in RS232 interface and a LAN interface for remote control, as well as data acquisition and analysis.

The computer remote control commands are compatible with SCPI (Standard Command for Programmable Instrument), facilitating efficient completion of remote control and data acquisition functions.

SMR635 is capable of measuring the insulation resistance and leakage current of various electronic components, equipment, dielectric materials, wires, cables, and more. The matching electrode box can test the surface resistance and volume resistivity of materials.

Appearance

• The display adopts a 4.3-inch high-resolution TFT screen for display, with simple operation.
• The body is compact yet powerful.

Outstanding test performance
• The accuracy of the read-back voltage is 0.5% ± 1V.
• The maximum accuracy of insulation resistance is 1%.

Fast testing
• The minimum test cycle only requires 200ms.

Constant voltage testing
• Adopts the constant voltage testing method for rapid measurement of insulation resistance.

Rich interface configuration
• HANDLER port
• RS-232 interface
• Ethernet interface
• USB flash drive interface

Power supply
• 198 ~ 240 V power supply
• Power frequency 47Hz ~ 63Hz
• Maximum power consumption 50W

Measuring parameters	Insulation resistance R, leakage current I, surface resistance Rs, volume resistance Rv
test specification	500Ω ~9.9X1015Ω , 2mA ~ 0.01pA
Test Speed (MAX)	Fast 5 times / s, slow 1 time / s,
Reread voltage accuracy	0.5% ±1V
Scale over-limit display	The scale on the super
input terminal	Banana plug, and BNC plug
operational key	Rubber key
show	A 4.3-inch TFT
Accuracy guarantee period	In 1 year
Operating temperature and humidity	0℃ to 40℃ Below 80% RH (no condensation)
Storage temperature and humidity	-10℃ to 60℃ Below 80% RH (no condensation)
operational environment	Indoor, with the highest elevation of 2,000 m
source	Voltage: 198V ~ 240V AC Frequency: 47Hz / 63Hz
power dissipation	50 W
size	About 331 mm x 329 mm x 80 mm
weight	About 4.1kg
