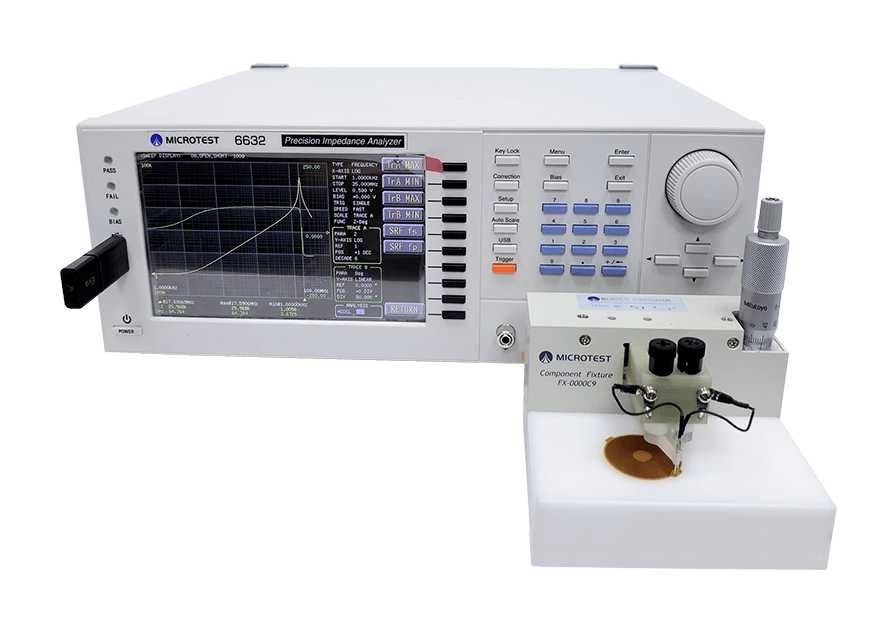

Precision Impedance Analyzer
Precision Impedance Analyzer is a powerful measurement tool that specializes in AC impedance analysis. It covers a wide frequency range from 10Hz to 30MHz and offers a measurement level range of 10mV to 2Vrms, with a minimum resolution of 1mV. This allows for accurate and detailed LCR (inductance, capacitance, and resistance) measurements of AC signals.
In addition to AC signal LCR testing, the analyzer also supports DC impedance (DCR) testing. It allows for successive stages of change in test frequency and test level, enabling high-speed continuous testing under different test and mode conditions. The device is equipped with various interfaces, including RS232, LAN, USB, and GPIB, allowing for easy connection to a PC. This connectivity enhances the efficiency of testing and data analysis processes.
The Precision Impedance Analyzer is praised for its outstanding performance, simplicity, and flexibility. These qualities have made it an essential tool for professionals in the field of measurement. Yiho, the manufacturer of this device, aims to provide customers with comprehensive measurement solutions, and the addition of the 6632 further contributes to their lineup of high-quality equipment.
The Precision Impedance Analyzer stands out in terms of its price, speed, capacity, accuracy, and flexibility. It offers a perfect combination of these features, ensuring that it meets the specific needs of customers. The device is versatile and can be applied to a wide range of components, including resistors, capacitors, inductors, oscillators, sensors, delay lines, filters, and resonators. It enables precise and reliable measurements for various measurement tasks.
Overall, the Precision Impedance Analyzer is a state-of-the-art instrument that provides professionals with advanced capabilities for AC impedance analysis. Its wide frequency range, adjustable measurement levels, and support for different test conditions make it a versatile and efficient tool. With its high performance, simplicity, and flexibility, it is an indispensable asset for measurement professionals.
Product Characteristics
⚫ Signal Source Frequency Range: DC, 10Hz ~ 3 / 5 / 10 / 20 / 30MHz
⚫ Signal Source Level: 10mV ~ 2V / 200μA ~ 20mA
⚫ Basic Impedance Measurement Accuracy ±0.08% (Typical ±0.05%)
⚫ Automatic Level Control (ALC) function
⚫ Output impedance 25Ω/100Ω switchable
⚫ Best price/performance ratio, except for basic measurement and sweep analysis functions and equivalent circuit function
⚫ Ultra-fast measurement speed < 3ms (fastest)
⚫ Open/short/load correction function
⚫ Up to four component parameters can be selected in meter mode, inductance and DCR values can be measured and displayed at the same time
⚫ Automatic component classification: Comparator function and Handler interface BIN classification function
⚫ Built-in DC bias voltage -12 to +12V
⚫ USB/ GPIB/ LAN/RS232 interfaces for quick automation and data acces s
⚫ Optional PC-linked data analysis software
⚫ Ultra-low power consumption < 30W, fanless design, zero noise
