Multiple USB Wire Harness Tester Four Wire Measurement Design

Four Wire Measurement Wire Harness Tester

Multiple USB Wire Harness Tester

Place of Origin:

China

Brand Name:

Microtest

Certification:

Model Number:

Microtest8761

Request A Quote

Multiple USB Wire Harness Tester Four Wire Measurement Design

Product Details

Name:

Wire Harness Tester Design

AC High Voltage:

100-1000v

DChigh Voltage:

50-1500v

Test Points:

64/128/256

High Voltage Output/neasurement Accuracy:

±5%

High Voltage Measure Time:

0.01s-60s

Conductance Impedance:

1mΩ-52Ω

AC Withstand Voltage Leakage Current:

0.01mA-5mA

DC Withstand Voltage Leakage Current:

0.1μA-1000μA

DC Withstanding Voltage Insulation Resistance:

1MΩ-1.2GΩ

Short Circuit Breaker/Instantaneous Short Circuit Breaker/Fast Instantaneous Breaker:

1kΩ-100kΩ

Resistances:

50mΩ-20MΩ

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

To be negotiated

Packaging Details

Packing in wooden crates

Delivery Time

30 days

Payment Terms

To be negotiated, T/T

Supply Ability

To be negotiated

Precise Accurate Testing Wire Harness Tester Low Voltage

Get Best Price

Cable And Wire Harness Tester Low Voltage DC 1500V

Get Best Price

220V 4 Wire Wire Harness Tester Professional Testing Instrument

Get Best Price

Bilingual 30-1500V Wire Harness Tester User Friendly

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

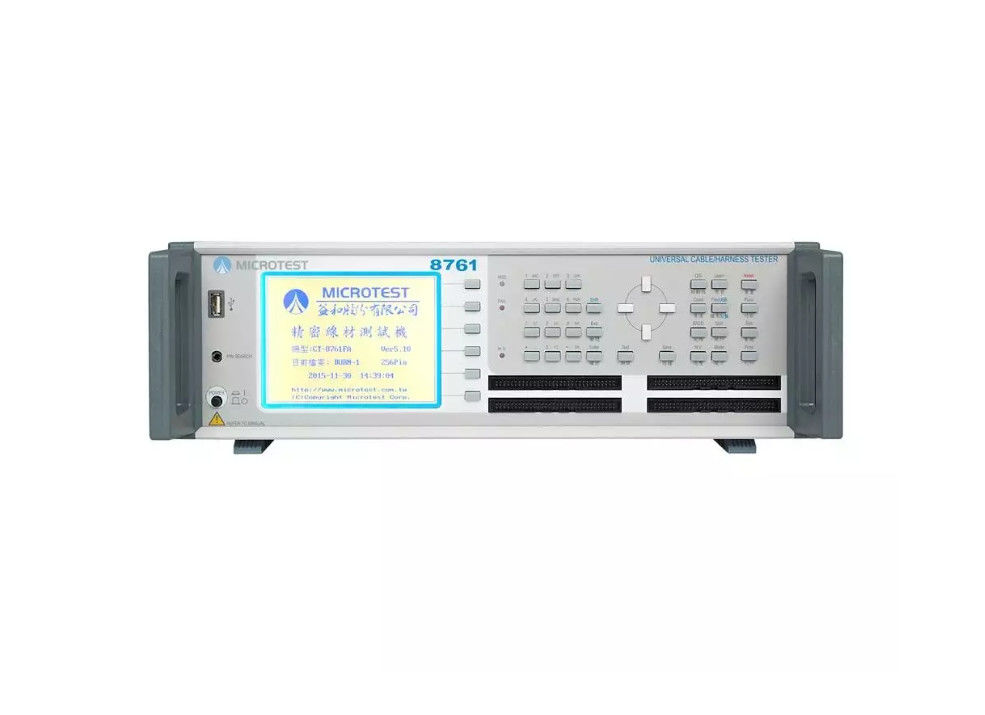

Wire harness tester design

Characteristic:

Four wire measurement of conduction impedance 1m Ω -52 Ω
The test points are provided in 64 / 128 / 256 groups
The number of test setting files is more than 500 groups
Support multiple product testing (standard provides 4 groups / expansion up to 14 groups)
USB Host Provide access to test files, test data, and update the software
Support BAR Code scanning and printing test data

Application area:

Consumer electronics application wire material, automotive flower line / car gauge wiring harness, connector, soft board

Product Parameter:

	Microtest8761FA	Microtest8761NA	Microtest8761N
AC high-handed	100~1000V	100~700V
DC high-handed	50~1500V	50~1000V	50~1000V
Number of test points	64/128/256	64/128/256	64/128/256
High-pressure output accuracy	±5%
High-pressure measurement accuracy	±5%
rated output	5VDC
High voltage measurement time	From 0.01 seconds to 60 seconds
measuring method	four-wire type
Requirements for wire specifications	Maximum allowable electrical capacity is 5 µ F
Guide impedance	Measuring range: 1m Ω ~52 Ω
	Current signal: 10 mA
Instant guide	1mΩ~52Ω
AC shall withstand pressure leakage current	0.01mA~5mA
AC arc detection	0~9
DC withstand voltage leakage current	0.1µ A~1mA
DC arc detection	0~9
DC withstand voltage insulation impedance	1MΩ~1.2GΩ
Short / instantaneous short / fast instantaneous break	1KΩ~100KΩ
Support the short-break road endpoint judgment	●
Support unilateral testing	●
Resistor value test	Measuring range: 50m Ω ~ 20 MΩ
	Level signal: 0.5~3V
Capacitive value test	Measuring range: 10 pF to 12 µ F
	Frequency signal: AUTO gear (optional) 48HZ/480HZ/4.8KHZ/48KHZ
	Level signal: 0.3V~1.2V
Diode test	Measuring range: 0~6.8V
Advanced function project	Programmable continuous test / automatic spot finding / automatic diagnosis
Test scan mode	Automatic / manual / external
Measuring the signal	Low-voltage measurement signals
Store memory	Up to 500 sets of test setting files stored
control panel	The System / Quick / Edit / Function key group
indicator	The Pass / Pail (LED) / red and green indicator light / screen display / sound
Power demand	Fixed voltage: 115 / 230 vac ± 10%, frequency: 60 / 50Hz
consumed power	8761(64):70VA,8761(128):70VA,8761(256):100VA
interface	RS-232,USB Host,Print,Remote
starting mode	Manual, automatic, and Remote Control
LCD screen	320 * 240 resolution graphic LCD display
operational environment	Temperature: 15C-35℃ Humidity: RH 70%
Visual dimensions (W * H * D)	8761(64):435×145×406mm 8761(128):435×145X406mm, 8761(256):435×190×406mm.
weight	8761(64):8.44kg,8761(128):9.3kg,8761(256):14kg
