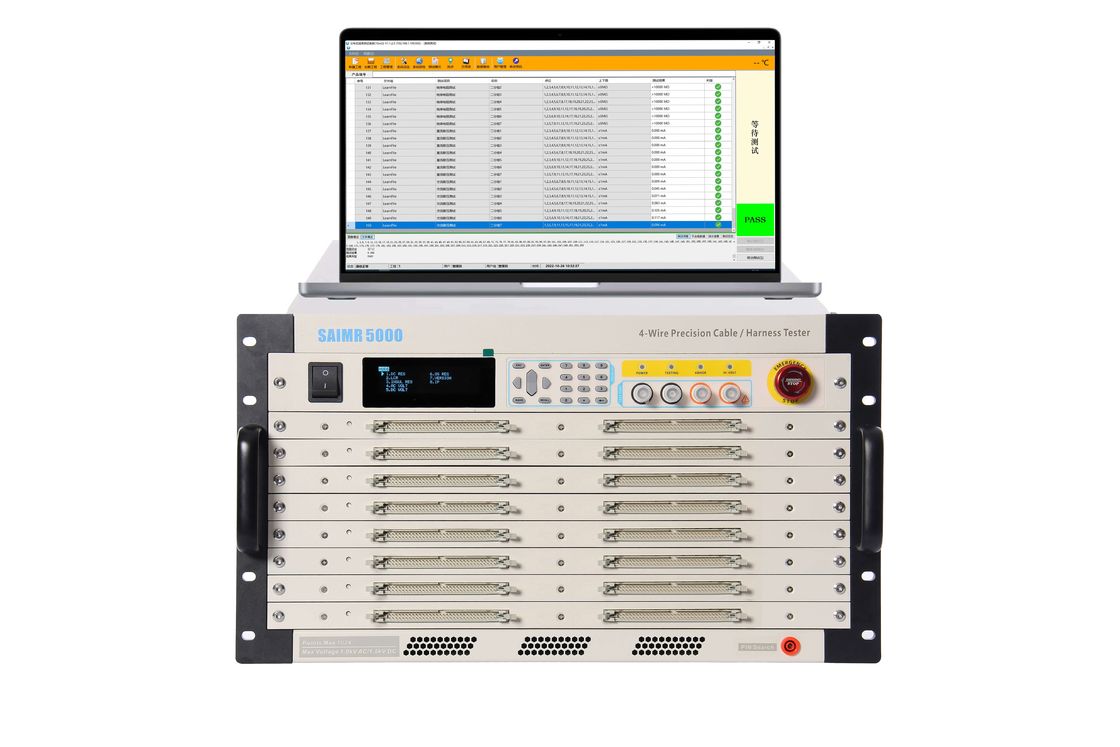

Name: 50Hz Medium Voltage Wire Harness Testing Equipment CE
Brand: Suzhou Saimr Electronics Technology Co., Ltd.
SKU: SAIMR5000
Price: Negotiable USD
Availability: InStock

Home > products > Wire Harness Tester >

50Hz Medium Voltage Wire Harness Testing Equipment CE

CE Wire Harness Testing Equipment

50Hz Wire Harness Testing Equipment

Medium Voltage Wire Harness Testing Equipment

Place of Origin:

China

Brand Name:

SAIMR

Certification:

Model Number:

SAIMR5000

Request A Quote

50Hz Medium Voltage Wire Harness Testing Equipment CE

Product Details

Test Frequency:

50Hz

Tolerance:

±0.5%

Os Accuracy:

±5%

Test Resistance:

10Ω

Imaging System:

Industrial HD Video System 5 Million

Points:

128/ 256/ 512/ 1024.......20480

Software:

MES

Cutting Speed:

2mm/s

Voltage Range:

Medium Voltage

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

To be negotiated

Packaging Details

Packing in wooden crates

Delivery Time

30 days

Payment Terms

To be negotiated, T/T

Supply Ability

To be negotiated

Precise Accurate Testing Wire Harness Tester Low Voltage

Get Best Price

Cable And Wire Harness Tester Low Voltage DC 1500V

Get Best Price

220V 4 Wire Wire Harness Tester Professional Testing Instrument

Get Best Price

Bilingual 30-1500V Wire Harness Tester User Friendly

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

Measurement Item	Accuracy
OS Test	±5%
Two-wire On-resistance Measurement	0.1Ω - 1MΩ: ±0.5% + 0.05Ω
Four-wire On-resistance Measurement	10μΩ - 1MΩ: ±0.2% + 5μΩ
DC Resistance Test	0.1Ω - 1MΩ: <100k: ±1% >100k: 5%
LCR Test	Capacitance Measurement Range: 10pF - 100μF: ±2% Resistance Measurement Range: 100mΩ - 20MΩ: ±2% Inductance Measurement Range: 10nH - 100H: ±2%
Diode Test	0 - 10V: ±2% ±0.2V
Insulation Test	1MΩ - 10GΩ: 1M - 100M: ±2% 100M - 1G: ±5% 1G - 5G: ±10%
AC Leakage Current Test	10μA - 10mA: ±3%
DC Leakage Current Test	1μA - 5mA: ±3%
AC Withstand Voltage Source	30 - 1000V AC (50/60Hz): ±3%
Insulation/Withstand Voltage Source	30V - 1500V DC: ±3%
Low Voltage Signal Source	5V/10mA: ±3%
Low Voltage Test Timing Time	10ms - 200s: ±1%
Voltage/Insulation Test Timing Time	0.1s - 500s: ±1%
