Place of Origin:
CHINA
Brand Name:
SAIMR
Certification:
CE
Model Number:
SAIMR6000
Contact Us

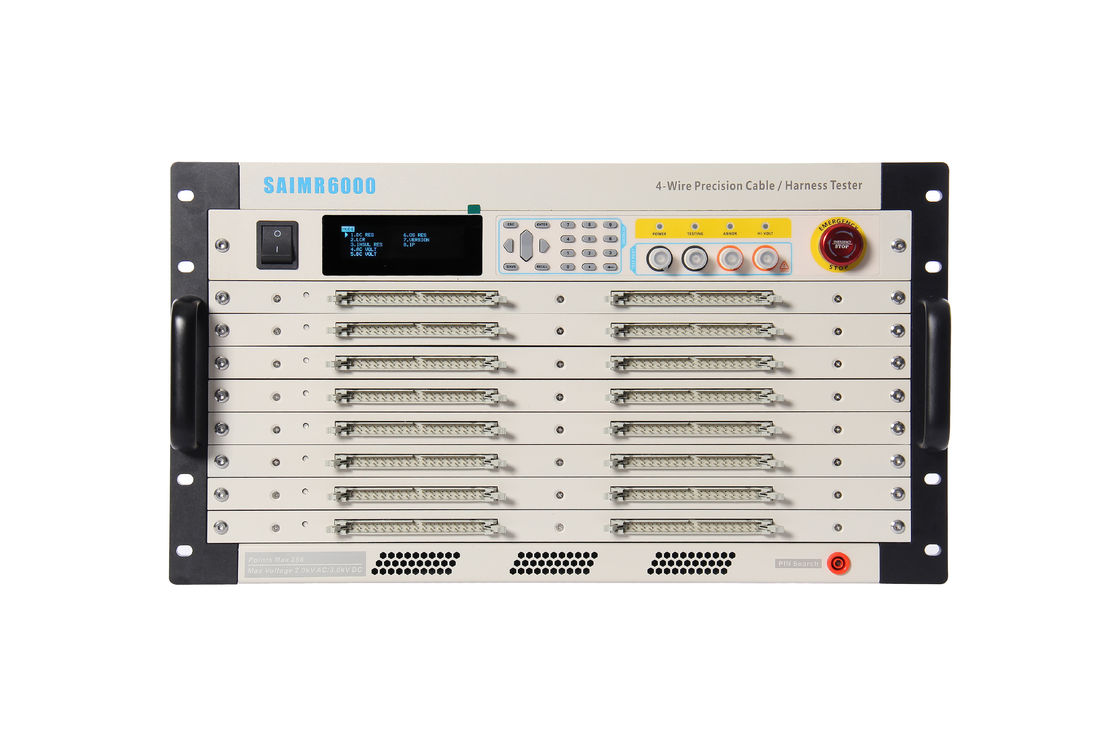

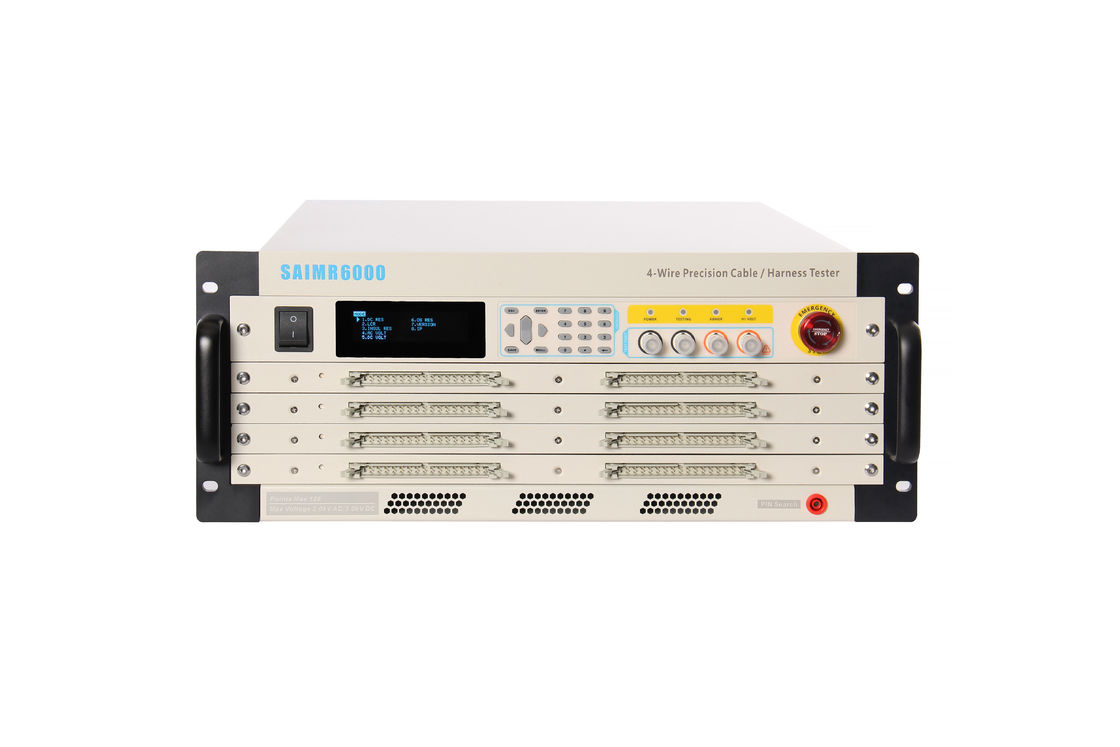

Cable Harness Testing Equipment Fiber Optic Cable Test Equipment
The Cable Harness Testing Equipment is a specialized tool designed to test the quality and functionality of cable wire harnesses. This equipment is essential for ensuring the safety and reliability of electrical systems in various industries such as automotive, aerospace, and telecommunications.
The Cable Harness Testing Equipment is a compact and user-friendly device that can efficiently test different types of cable harnesses with a DC resistance range of 0.1Ω to 1MΩ. This versatile equipment can handle a wide range of cables, from small gauge wires to heavy-duty cables used in industrial applications.
The humidity level of the Cable Harness Testing Equipment is kept at a maximum of 65%, which ensures accurate test results and prevents any damage to the cables. The operating temperature range of this device is 0-40 Degrees Celsius, making it suitable for use in various environments.
The Cable Harness Testing Equipment is equipped with an AC Withstand Voltage Test function that ensures the safety and durability of cable wire harnesses. The accuracy of this test is ±3%, which guarantees precise and reliable results. This function is crucial in identifying any potential faults or weaknesses in the cable harness, ensuring its quality and longevity.
One of the key features of the Cable Harness Testing Equipment is its power supply of AC 220V/50Hz. This power supply is suitable for most industrial and commercial settings, making it convenient for use in different locations.
The Cable Harness Testing Equipment is designed with efficiency and safety in mind. It is equipped with advanced technology, including microprocessor-based control and digital display, to ensure accurate and fast testing. The equipment also has built-in safety features such as overload protection and short-circuit protection, ensuring the safety of the user.
In conclusion, the Cable Harness Testing Equipment is an essential tool for anyone involved in cable harness manufacturing or installation. Its compact design, versatile testing capabilities, and advanced features make it a valuable asset for ensuring the quality and safety of electrical systems. With its DC resistance range, humidity and temperature control, AC Withstand Voltage Test accuracy, and convenient power supply, this equipment is a must-have for any electrical testing needs.
Product Name | SAIMR6000S/6000 Cable Harness Test System |
---|---|
DC resistance range | 0.1Ω-1MΩ |
DC withstand Voltage Test Accuracy | ±3% |
Weight | 26/18kg |
AC leakage current test range and accuracy | 30V-2000V/±3% |
Type | Automatic |
Test Mode | 4- Wire Or 2-wire (mixed Test) |
AC Withstand Voltage Test Accuracy | ±3% |
Display | PC |
Operating Temperature | 0-40 Degrees Celsius |
SAIMR6000 is a versatile and efficient testing machine designed for industrial cable harness and cable assembly testing. It is the perfect solution for quality control and assurance in the production of fiber optic cable and other industrial cables. This product is proudly made in China and is certified with CE standards.
Test Mode | 4-Wire Test | 2-Wire Test | Mixed Test |
---|---|---|---|
DC withstand Voltage Test Accuracy | ±3% | ±3% | ±3% |
DC Leakage Current Test Range and Accuracy | 30V-3000V/±3% | - | 30V-3000V/±3% |
AC Leakage Current Test Range and Accuracy | - | 30V-2000V/±3% | 30V-2000V/±3% |
Brand Name: SAIMR
Model Number: SAIMR6000
Place of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1 SET
Price: To be negotiated
Packaging Details: Packing in wooden crates
Delivery Time: To be negotiated
Payment Terms: To be negotiated
Supply Ability: To be negotiated
Dimensions: 483*265*510mm/ 483*183*510mm
Power Supply: AC 220V/50Hz
Test Mode: 4- Wire Or 2-wire (mixed Test)
Type: Automatic
Operating Temperature: 0-40 Degrees Celsius
SAIMR Cable Harness Testing Equipment offers customized services for industrial cable harness, automotive diagnostic cables, and electrical test equipment. Our SAIMR6000 model is designed and manufactured in China and has received CE certification. With a minimum order quantity of 1 set, the price can be negotiated to fit your budget. The equipment will be packaged in wooden crates for safe delivery and the delivery time can also be discussed. We offer flexible payment terms and have a strong supply ability. The dimensions of the equipment are 483*265*510mm/ 483*183*510mm and it operates on AC 220V/50Hz power supply. The test mode can be set to 4-wire or 2-wire, depending on your needs. This automatic equipment can operate in temperatures ranging from 0 to 40 degrees Celsius, making it suitable for various testing environments.
1. What are the advantages of the medium-voltage wiring harness tester compared to other testing equipment?
The medium-voltage wiring harness tester has a wider test voltage range, which can comprehensively test medium-voltage wiring harnesses. It can detect key parameters such as conductivity, insulation, and voltage resistance of the wiring harness to ensure the quality and reliability of the wiring harness.
2. How does the medium-voltage wiring harness tester perform in terms of testing efficiency?
The medium-voltage wiring harness tester uses advanced testing technologies and fast testing algorithms, which can quickly and accurately complete wiring harness testing. It can simultaneously test multiple wiring harnesses, greatly improving testing efficiency and reducing testing time and labor costs.
3. How about the testing ability of the medium-voltage wiring harness tester for complex wiring harnesses?
The medium-voltage wiring harness tester has flexible test interfaces and adaptability, and can handle various complex wiring harness structures. It can test wiring harnesses of different specifications and types, including multi-core wiring harnesses and mixed wiring harnesses, to meet the needs of different application scenarios.
4. What are the characteristics of the medium-voltage wiring harness tester in data analysis and reporting?
The medium-voltage wiring harness tester can generate detailed test reports, including test results and pass/fail status information. It also has data analysis capabilities that can help users quickly identify and locate problems in the wiring harness, improving the efficiency of fault troubleshooting.
5. How about the reliability and stability of the medium-voltage wiring harness tester?
The medium-voltage wiring harness tester adopts high-quality materials and advanced design, and has good reliability and stability. It has undergone strict testing and verification and can work normally under harsh environmental conditions, ensuring the accuracy and consistency of test results.
