Low Voltage Wire Harness Tester Conector

Product Description

High reliability requirements: The military industry has very high reliability requirements for products, as these products work under harsh environmental conditions, such as high temperature, low temperature, humidity, and vibration. The low-voltage wiring harness tester can perform comprehensive tests on the wiring harness, including insulation resistance, conductivity, and voltage resistance, to ensure the reliability of the wiring harness.

Features:

• Product Name: Wire Harness Tester
• OS test range: 2kΩ-200kΩ
• Display: PC
• Standard configuration:
  • Port Adapter Board
  • Test Line
  • Computer
  • Temperature Probe
  • Multi-channel Temperature Module
• Power supply: 220V
• Points: 128/ 256/ 512/ 1024.......20480

Key Features:

• Designed for testing Industrial Wire Harness, Automotive Wire Harness Assembly, Cable Wire Harness and Electrical Wire Harness
• Wide OS test range of 2kΩ-200kΩ
• Displays test results on a PC
• Standard configuration includes essential components such as Port Adapter Board, Test Line, Computer, Temperature Probe, and Multi-channel Temperature Module
• Compatible with 220V power supply
• Provides a range of points from 128 to 20480 for more precise and comprehensive testing

Technical Parameters:

Applications:

Brand Name: SAIMR

Model Number: SAIMR5000

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1 SET

Price: To be negotiated

Packaging Details: Packing in wooden crates

Delivery Time: To be negotiated

Payment Terms: To be negotiated

Supply Ability: To be negotiated

Weight: 25/17kg

AC/DC Accuracy: ±3%

Customized Support: Software Reengineering

Test Mode: Four- Wire Or 2-wire (mixed Test)

OS test range: 2kΩ-200kΩ

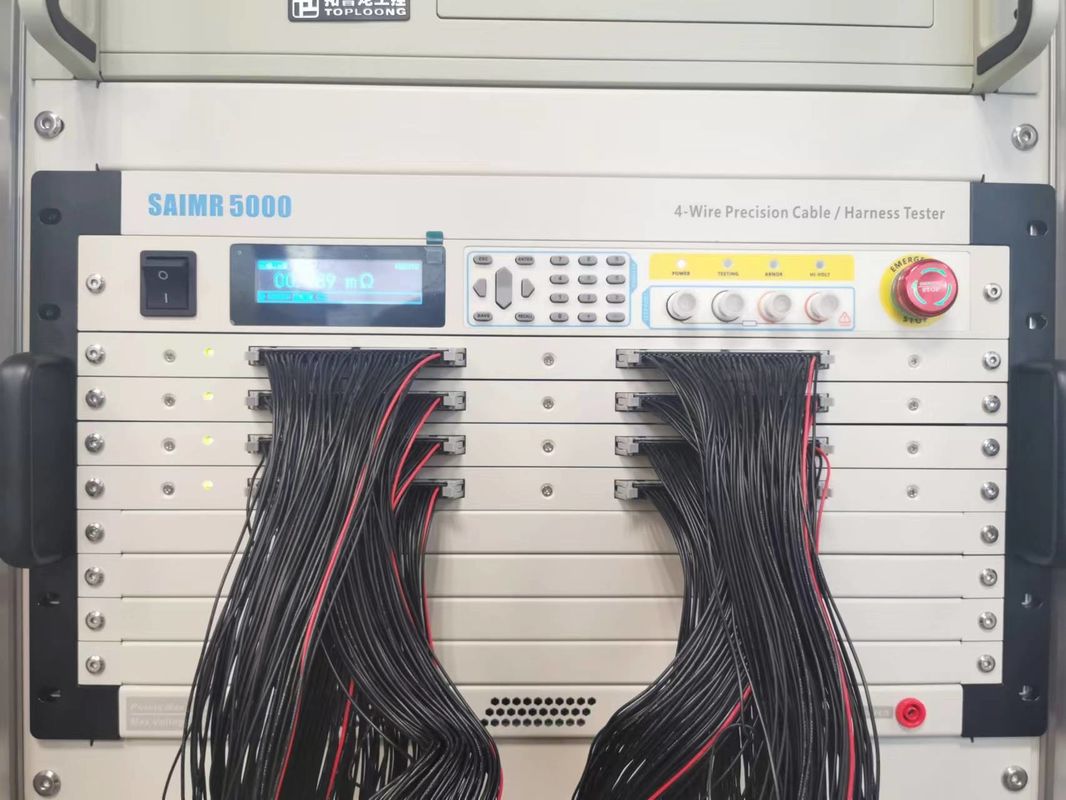

The SAIMR5000 Wire Harness Tester is a highly advanced and accurate testing equipment designed for testing Cable Wire Harnesses, Automobile Wire Harness, Industrial Wire Harness, and Aerospace Wire Harness. It is specifically designed and manufactured in China by SAIMR, a trusted brand known for its high-quality testing equipment.

The SAIMR5000 Wire Harness Tester is suitable for various industries that use wire harnesses in their products, such as the automotive, industrial, and aerospace industries. It is widely used for testing the quality and functionality of wire harnesses, ensuring they meet the necessary standards and specifications.

• High accuracy: The AC/DC accuracy of the SAIMR5000 Wire Harness Tester is ±3%, ensuring precise and reliable test results.
• Customized support: The tester comes with software reengineering support, allowing for customization according to specific testing requirements.
• Versatile test mode: The tester can perform both four-wire and two-wire (mixed test) modes, providing flexibility in testing different types of wire harnesses.
• Wide test range: The SAIMR5000 can test wire harnesses with resistance values ranging from 2kΩ to 200kΩ, making it suitable for a wide range of applications.
• Lightweight and portable: Weighing only 25/17kg, the tester is easy to transport and can be used in different locations.
• CE certified: The SAIMR5000 Wire Harness Tester is certified by CE, ensuring its compliance with international safety and quality standards.

The SAIMR5000 Wire Harness Tester is packed in sturdy wooden crates to ensure safe transportation. The delivery time can be negotiated according to the customer's requirements.

To place an order for the SAIMR5000 Wire Harness Tester, please contact us for pricing and availability. We offer customized support for software reengineering to meet your specific testing needs.

The SAIMR5000 Wire Harness Tester is a highly reliable and efficient testing equipment for various industries that use wire harnesses in their products. With its advanced features, customized support, and wide test range, it is the ideal choice for ensuring the quality and functionality of wire harnesses. Contact us today to learn more about the SAIMR5000 and how it can benefit your business.
