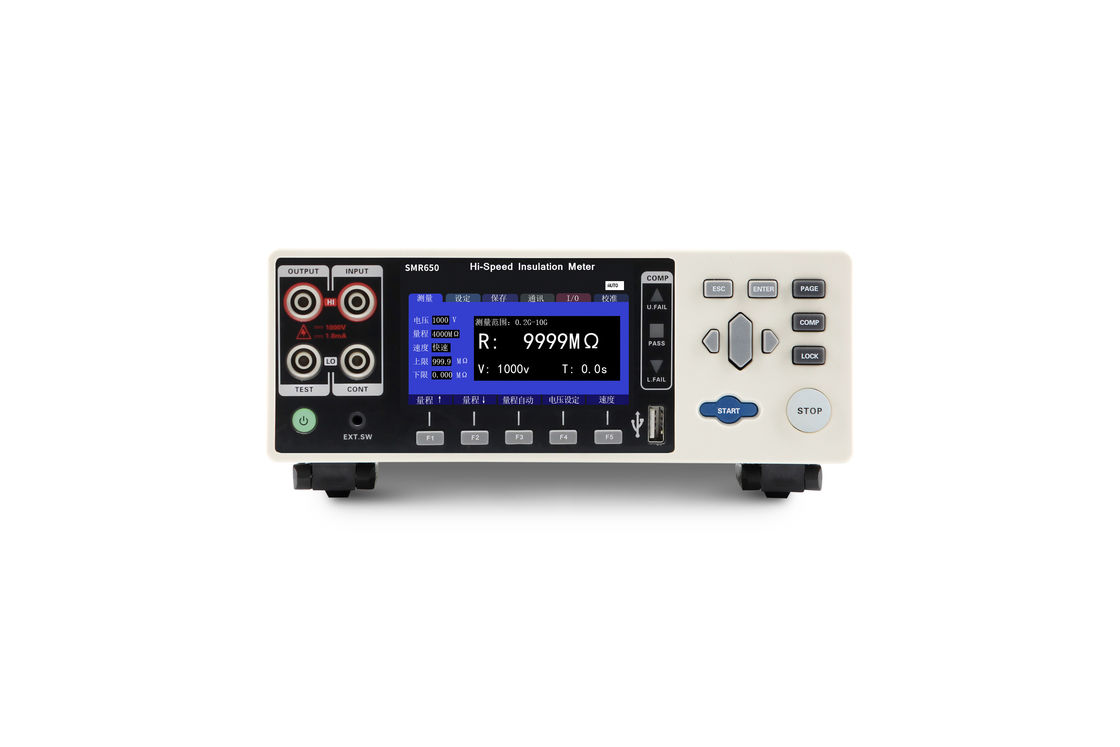

Name: 3.5 Inch TFT LCD Display Digital High Voltage Insulation Tester OEM ODM
Brand: Suzhou Saimr Electronics Technology Co., Ltd.
SKU: SMR650
Price: Negotiable USD
Availability: InStock

Home > products > Insulation Resistance Tester >

3.5 Inch TFT LCD Display Digital High Voltage Insulation Tester OEM ODM

digital high voltage insulation tester OEM ODM

3.5 inch TFT LCD high voltage resistance tester

high voltage resistance tester OEM ODM

Place of Origin:

CHINA

Brand Name:

SAIMR

Model Number:

SMR650

Request A Quote

3.5 Inch TFT LCD Display Digital High Voltage Insulation Tester OEM ODM

Product Details

Model:

SMR650

Accuracy:

±2%rdg.±5 Dgt.

Dimensions:

325mmx215mmx96 Mm

Display:

3.5 Inch TFT-LCD Display

Warranty:

1 Year

Weight:

2KG

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

1000-3000$ per set

Delivery Time

30 work days

Payment Terms

T/T

Supply Ability

200set/year

Multi Range Insulation Resistance Tester High Performance Processor Controlled

Get Best Price

Display SHORT Wire Digital Insulation Resistance Tester 2Kg

Get Best Price

12MA Constant Current Discharge Insulation Resistance Tester 325x215x96mm Display ContHi ContLo ContHL

Get Best Price

Electrical Insulation Resistance Tester Test Voltage 25V-1000V

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

High-Speed SMR650 Insulation Resistance Tester 25~1000V 1.8mA Non-Contact Discharge

1.DESCRIPTION

SMR650 Insulation Resistance Tester is designed to insulation resistance of components and equipment.
Using the constant voltage test method, its voltage output range is 25~1000V and the maximum output current is 1.8mA.
SMR650 has contact abnormality detection and short circuit abnormality test function, the minimum test period is only 50mS.

2.FEATURES

Adopting switching power supply principle, max constant current output 1.8mA and voltage output range 25~1000V,with step 1V
High test speed, minimum test cycle only 50mS
Unique anomaly detection function, the instrument can detect the test leads abnormality and the abnormal contact of the measured object, avoiding the open circuit misjudgment
Short-circuit detection function effectively detect short-circuit conditions and avoid
Direct application of high-voltage breakdown of defective products and to misjudgment
Automatic discharge, the instrument will automatic discharge after the test completed. SMR650 adopts non-contact constant current discharge, fast, efficient and reliable
Various interfaces are equipped, external I/O, analog, LAN ,RS232 interface
Double-click trigger to prevent high-voltage electronic shock accidents caused by false triggers. Users can set the double-click action to trigger the test.
Analog output. Analog output port of the instrument output results. After each test is completed, output 0~4V analog voltage value corresponding to the test result. There are two types of voltage output, one is full range output and the other is single range output

3.SPECIFICATION

Model	SMR650
Display	3.5 inch TFT-LCD display
Measurement Parameters	nsulation resistance
Measurement Range	0.1～9999MΩ(5ranges)
Basic Accuracy	±2%rdg.±5 dgt.
Measuring Voltage	DC10~1000V 1.8mA
Measuring Speed	50ms(fast)500ms(slow)
Connection Error Display	Highvoltage sideopen circuit display"ContHi";low voltage side open circuit display ContLo";output open circuitdisplay"ContHL”
ShortCircuit Error Display	“SHORT”
Over Range Display	Range exceed lower limit display"UNDER.F";range exceed upper limit display "OVER.F"
Discharge Current	12mA constant current discharge
Comparator	PASS/L.FAIL/U.FAIL
Data Storage	10 sets of panel setting data can be recorded
Trigger	IO trigger,internal trigger,manual trigger,bus trigger
l/O Type	PNP or NPN
Interface	External lO,analog,LAN,RS232
Power Supply	Voltage:100V~250VAC Frequency:50Hz/60Hz
Size&Weight	Size(LWD):325mmx215mmx96 mm Weight:2kg

3.5 Inch TFT LCD Display Digital High Voltage Insulation Tester OEM ODM 0
