Name: Wire Harness Testing Equipment Medium Voltage Type Harness Testers
Brand: Suzhou Saimr Electronics Technology Co., Ltd.
SKU: SAIMR6000S/6000
Price: Negotiable USD
Availability: InStock

Home > products > Wire Harness Tester >

Wire Harness Testing Equipment Medium Voltage Type Harness Testers

400mm x 300mm x 200mm wire harness testing equipment

Medium Voltage wire harness testing equipment

Medium Voltage Type harness testers

Place of Origin:

CHINA

Brand Name:

SAIMR

Certification:

Model Number:

SAIMR6000S/6000

Request A Quote

Wire Harness Testing Equipment Medium Voltage Type Harness Testers

Product Details

Product Name:

SAIMR6000 Cable Harness Test System (Medium Voltage Type)

Dimensions:

400mm X 300mm X 200mm

Wire Type:

Cable Harness

Testing Accuracy:

±1%

Testing Modes:

DC, AC, IR,OS,NTC

Voltage Range:

Medium Voltage

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

3500-6000$ per set

Delivery Time

30 work days

Payment Terms

T/T

Precise Accurate Testing Wire Harness Tester Low Voltage

Get Best Price

Cable And Wire Harness Tester Low Voltage DC 1500V

Get Best Price

220V 4 Wire Wire Harness Tester Professional Testing Instrument

Get Best Price

Bilingual 30-1500V Wire Harness Tester User Friendly

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

Cable Harness Test System (Medium Voltage Type)

1.Applicable Typical Industry

Automotive electronics
Aerospace
Energy storage, new energy batteries
Wiring harness line automation

2.Application

FPC Flexible circuit board
Medium voltage harness testing
Connectors, wires, cables
Energy storage battery, power battery CCS, integrated busbar

3.Features

Insulation resistance test up to 50 GΩ with 4-wire resistance resolution up to 1 μΩ
The distributed structure (128 points/board), test points can be expanded to more than 20,000 points.
The system adopts two-wire and four-wire mixed measurement, which has higher measurement accuracy and faster speed.
Software custom editing tst function, editable point import and export.
One-stop comprehensive testing (OS, DC resistance, insulation resistance, AC/DC insulation withstand voltage, LCR, etc.).

4.Specification

Medium Voltage test	SAIMR6000
Test Mode	Four- wire or 2-wire (mixed test)
Number of Points	32/64/128/256…20480 points
Test Project	Test Range	Test Accuracy
OS Test (Voltage 5V)	2 kΩ-200 kΩ (optional 20 kΩ -1000 kΩ)	±5%
Insulation Resistance Test	1MΩ-10GΩ (30V-2000V)	1MΩ~100MΩ: ±2%
		100MΩ~ 1GΩ: ±5%
		1GΩ~ 10GΩ: ±10%
DC Resistance Test	0.1Ω-1MΩ	<100k: ±1%
DC Resistance Test	0.1Ω-1MΩ	>100k: ±5%
Internal Four-wire DC Resistance Test	0.1Ω-1MΩ	±0.5%+0.05Ω
Outer Four-wire DC Resistance Test	10μΩ~100Ω	±0.2%+5μΩ
Four-wire NTC Test (10k, 100k)	Temperature Judgment (accuracy 0.1°C)	Users can self-defined RT table for resistance and temperature judgment
	Resistance Judgment (accuracy 10k: 1% 100k: 5%)	The resistance value can be judged according to the real -time temperature of the environment
	Comparison Judgment (accuracy 0.1°C)	Maximum resistance difference between tested and standard parts (Range)
AC Hi-pot Test	30V-2000V	±3%
DC Hi-pot Test	30V-3000V	±3%
AC Leakage Current Test	1μA-10mA	±3%
DC Leakage Current Test	0.1μA-5mA	±3%
Dimensions (in mm)	483265510 (1024P)	483183510 (512P)
Maximum Weight (in kg)	26	18
Standard Configuration	User’s manual in U disk, power cord, network cable, port adapter board, test line, patrol pen.
Optional Configuration	Insulation standard resistance, conduction standard resistance, industrial computer, desktop computer, monitor, mouse, keyboard, speaker.

5.Products Pictures

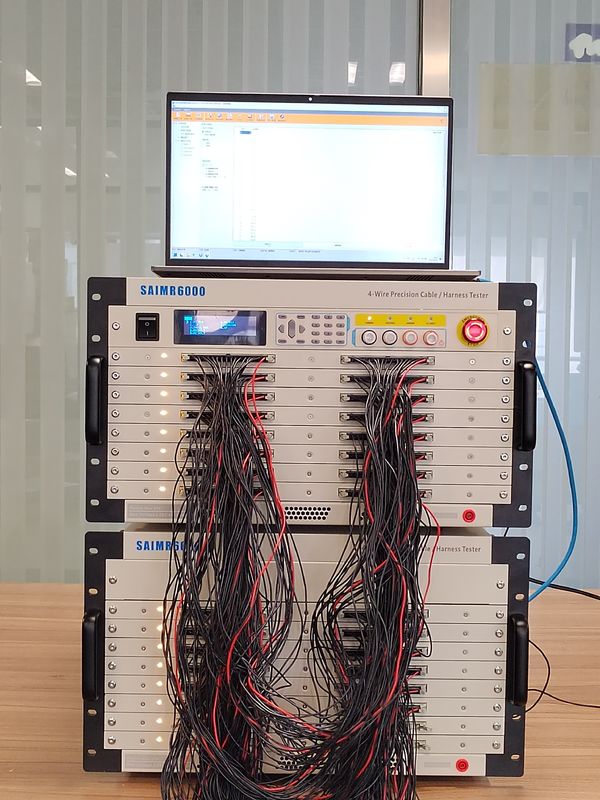

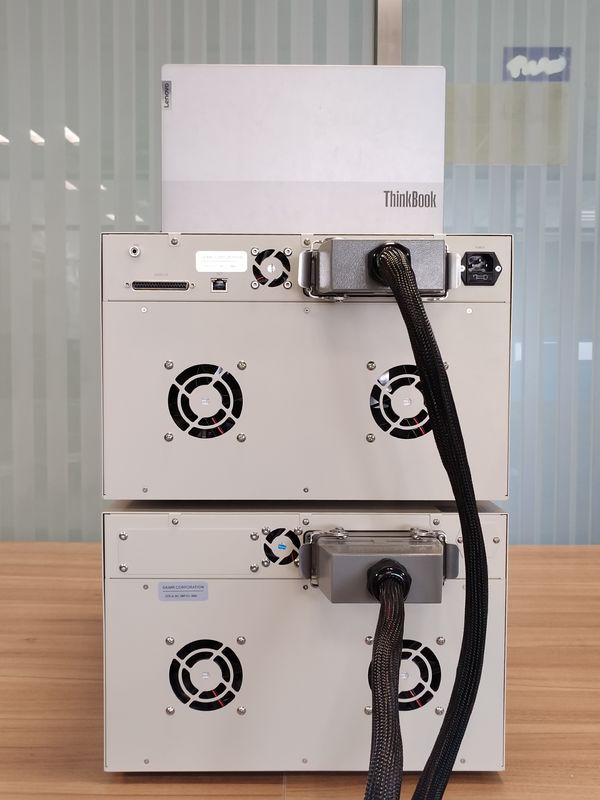

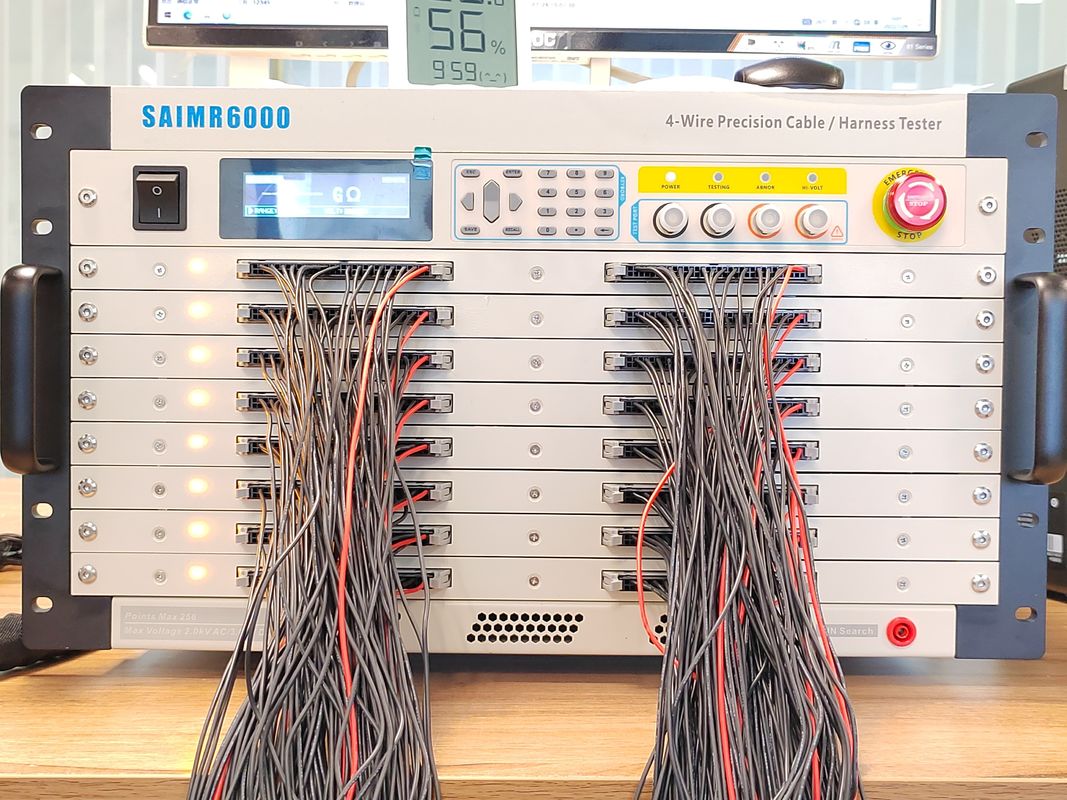

Wire Harness Testing Equipment Medium Voltage Type Harness Testers 0
