HV Cable Testing Equipment 15000*800*900mm /1200*570*630mm For Aerospace / Industrial Robots

HV Cable Testing Equipment 15000*800*900mm /1200*570*630mm For Aerospace / Industrial Robots

hv cable testing equipment 15000*800*900mm

hv cable testing equipment 1200*570*630mm

hv cable testing for Aerospace

Place of Origin:

CHINA

Brand Name:

SAIMR

Certification:

CE

Model Number:

SAIMR8000

Contact Us

Request A Quote
HV Cable Testing Equipment 15000*800*900mm /1200*570*630mm For Aerospace / Industrial Robots HV Cable Testing Equipment 15000*800*900mm /1200*570*630mm For Aerospace / Industrial Robots
Product Details
Product Name:
SAIMR8000 High Voltage Wire/Cable Harness Tester
Dimensions/Customizable:
15000*800*900/1200*570*630mm
Weight:
50/60Kg
Power Supply:
220V
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
2000-4000$ per set
Delivery Time
30 work days
Payment Terms
T/T
Supply Ability
200set/year
RELATED PRODUCTS
Good price Precise Accurate Testing Wire Harness Tester Low Voltage online

Precise Accurate Testing Wire Harness Tester Low Voltage

Get Best Price
Good price Cable And Wire Harness Tester Low Voltage DC 1500V online

Cable And Wire Harness Tester Low Voltage DC 1500V

Get Best Price
Good price 220V 4 Wire Wire Harness Tester Professional Testing Instrument online

220V 4 Wire Wire Harness Tester Professional Testing Instrument

Get Best Price
Good price Bilingual 30-1500V Wire Harness Tester User Friendly online

Bilingual 30-1500V Wire Harness Tester User Friendly

Get Best Price
Contact Us
86-0512-62519606
sales2@saimr.com
Contact Now
Product Description

SAIMR8000 High Voltage Wire/Cable Harness Tester mainly used in the electronics manufacturing industry, the auto



Applicable Typical Industry

  • FPC flex CCS detection (NTC test)
  • New energy/fuel vehicles, ships
  • Aerospace, industrial robots
  • Trains, subways, power plants, military industry

Application

  • FPC Flexible circuit board
  • High voltage harness testing
  • Photovoltaic modules, energy storage battery modules
  • CCS power battery integrated busbar and so on

Features

  • Precision four-wire test
  • Resistance accuracy 1μΩ
  • Insulation standard 10GΩ, optional 400GΩ
  • Multi-point selection (32P/board)
  • High voltage testing (AC DC IR)
  • LCR optional
  • Air tightness test options
  • Custom chassis test bench
  • Available custom PC software
  • On-resistance (temperature compensation)
  • Find point function and customize
  • Self-learning to quickly generate test forms
  • Learn that the point table can be edited, imported, and exported
  •
  • Tailor-made bar code scan and print
  • Automatic saving of test files (in multiple formats)
  • High safety level of instrument use
  • Link MES, I/O interface
  • System settings are simple to understand and easy to operate
  • High security level of system management
  • Tailor-made models available

Software Introduction



Feature Items Detailed Description
1.Project Management Function Load existing projects, add test projects, and set test parameters.
2. Network Segment Management The order can be adjusted arbitrarily, the point can be selected arbitrarily, flexible testing, and self -defined naming is convenient for management
3. System Function Modules
3.1 System Self-test Check whether the system is functioning properly.
3.2 Find a Point Use the patrol point pen to find the point, display the point information, and broadcast the voice.
3.3 Multimeter Function Quickly perform various tests, easy debugging.
3.4 Self-learning Function Quickly detect the connection of unknown harnesses and select Generate Test Filegroup.
4. Data Preservation
4.1 Data Report Export The data report format can be customized and supports CSV XLSX PDF and WORD format export.
4.2 Database Saving Each test is completed, the data is saved to the database.
4.3 Database Query Users can query historical data in the database and print data reports.
5. Barcode Printing Function Support code scanning guns, you can customize barcodes according to the product and print.
6. User Management Three levels of management: administrator, programmer, operator.





Specification



Medium Voltage test SAIMR8000
Test Mode Four- wire
Number of Points 32/64/128/256…2048 points (support expand if need)
Test Project Test Range Test Accuracy

OS Test (Max 40V/DC)

(0.1mA-2A)

 0-10 kΩ ±1%
10k~10MΩ ±2%
Insulation Resistance Test

500KΩ-10GΩ(10V-1000V)

Optional 10V-3000V

Optional 400GΩ (±20%)

 500kΩ~100MΩ: ±2%
100MΩ~ 4GΩ: ±5%
4GΩ~ 10GΩ: ±10%
DC Resistance Test Full scale <100mΩ: ±1%(1μΩ)
100mΩ-1kΩ: ±1%
Four-wire NTC Test (10k, 100k) Temperature Judgment (accuracy 0.1°C) Users can self-defined RT table for resistance and temperature judgment
Resistance Judgment (accuracy 10k: 1% 100k: 5%) The resistance value can be judged according to the real -time temperature of the environment
Comparison Judgment (accuracy 0.1°C) Maximum resistance difference between tested and standard parts (Range)
AC Hi-pot Test

10V-4000V

(Optional 5000V)

 Step value: 10V
DC Hi-pot Test

10V-6000V

(Optional 6000V)

 Step value: 10V
AC Leakage Current Test 0.01mA-12mA Step value: 0.01mA
DC Leakage Current Test 0.1mA-6mA Step value: 0.1mA
Diodes / Zener Diodes 0-40V 0.1 mA / 1 mA (test signal)

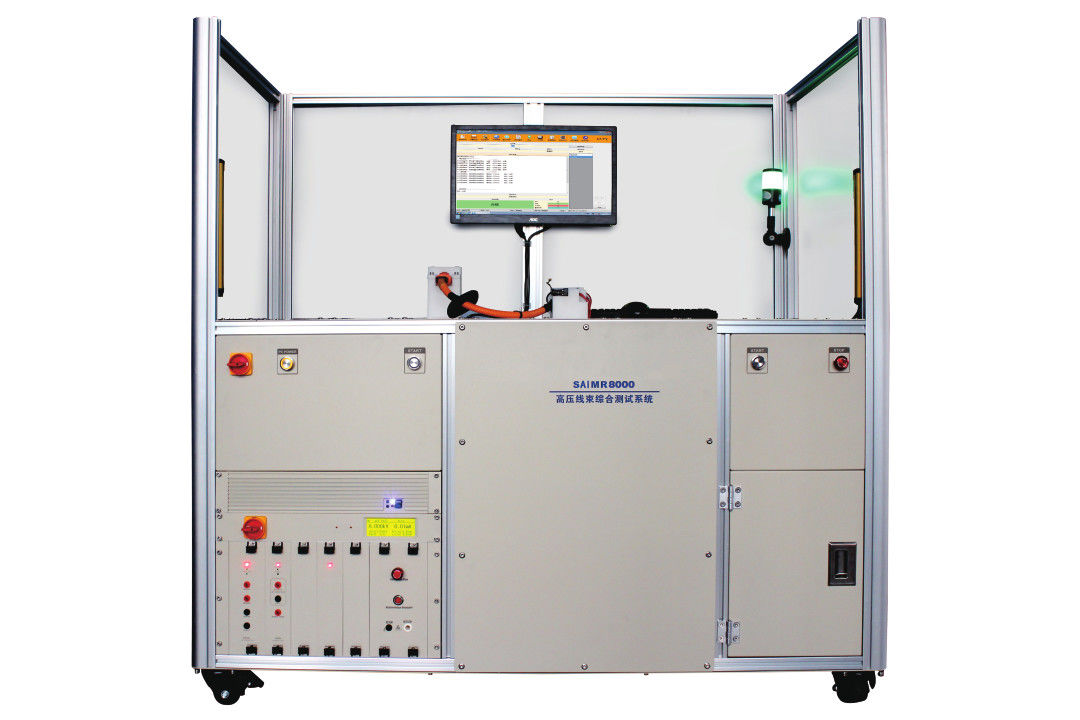

Dimensions (in mm) Desktop 1500*800*900 (Support tailor-made)

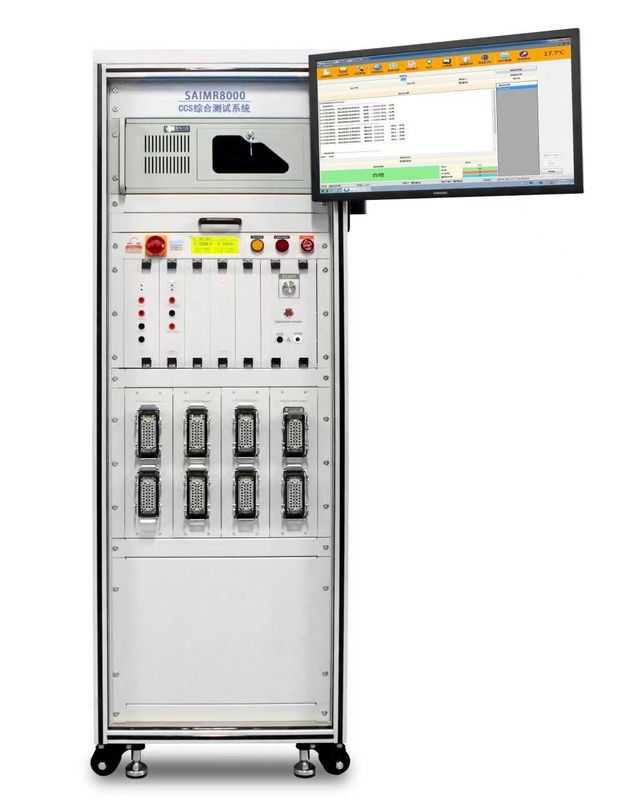

Cabinet type 1200*570*630

(Support tailor-made)
Maximum Weight (in kg) 50 60
Standard Configuration User’s manual in U disk, power cord, network cable, port adapter board, test line, patrol pen.
Optional Configuration Insulation standard resistance, conduction standard resistance, industrial computer, desktop computer, monitor, mouse, keyboard, speaker.
