Cable Harness Test Equipment For Automotive / Electronics / Aerospace / Medical Device

Automotive cable harness test equipment

Electronics cable harness test equipment

Aerospace wire harness testing equipment

Place of Origin:

CHINA

Brand Name:

SAIMR

Certification:

Model Number:

SAIMR5000

Request A Quote

Cable Harness Test Equipment For Automotive / Electronics / Aerospace / Medical Device

Product Details

Product Name:

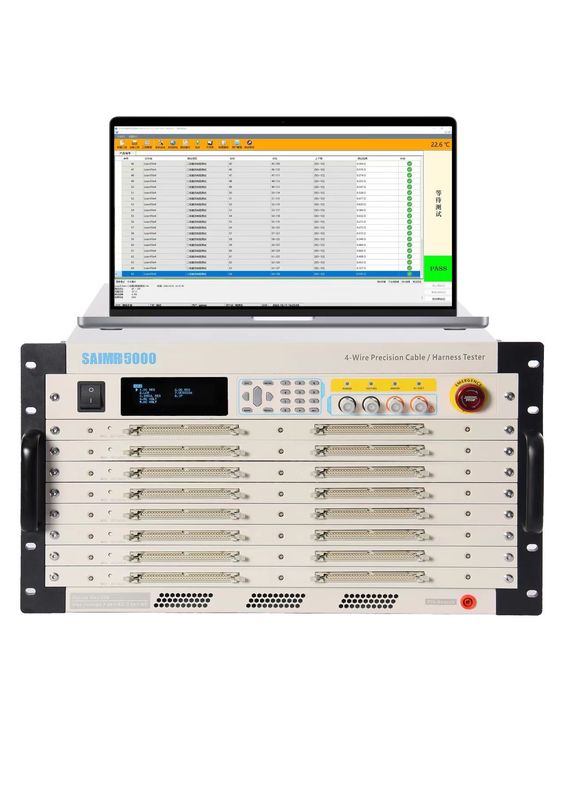

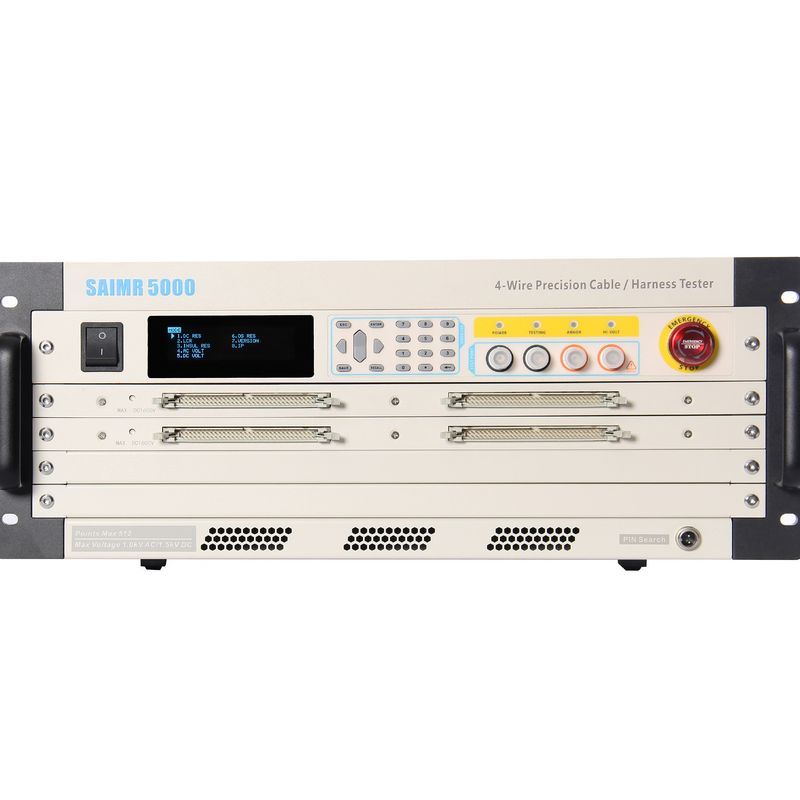

SAIMR5000 Cable Harness Test System

Test Mode:

4-wire Or 2-wire (mixed Test)

Number Of Points:

128/256/512/1024…20480

Dimensions:

483*265*510mm/483*183*510mm

Color:

Black And White

Feature Items:

OS,NTC,LCR ,Insulation And More

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

2000-10000$/set

Delivery Time

30 work days

Payment Terms

T/T

Precise Accurate Testing Wire Harness Tester Low Voltage

Get Best Price

Cable And Wire Harness Tester Low Voltage DC 1500V

Get Best Price

220V 4 Wire Wire Harness Tester Professional Testing Instrument

Get Best Price

Bilingual 30-1500V Wire Harness Tester User Friendly

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

Cable Harness Test Equipment For Automotive / Electronics / Aerospace / Medical Device

Applicable Typical Industry

Automotive electronics
Aerospace
Energy storage, new energy batteries
Wiring harness line automation

Application

FPC Flexible circuit board
Low voltage harness testing
Connectors, wires, cables
Energy storage battery, power battery CCS, integrated busbar

Features

Insulation resistance test up to 10 GΩ with 4-wire resistance resolution up to 1 μΩ
The distributed structure (128 points/board), test points can be expanded to more than 20,000 points.
The system adopts two-wire and four-wire mixed measurement, which has higher measurement accuracy and faster speed.
Software custom editing test function, editable point import and export.

Software Introduction

Cable Harness Test Equipment For Automotive / Electronics / Aerospace / Medical Device 0

Specification

Low Voltage test	SAIMR5000
Test Mode	4- wire or 2-wire (mixed test)
Number of Points	128/256/512/1024…20480
Test Project	Test Range	Test Accuracy
OS Test (Voltage 5V)	2 kΩ -200 kΩ (optional 20 KΩ -1000 KΩ)	±5%
Insulation Resistance Test	1MΩ-10 GΩ(30V-1500V)	1MΩ~100MΩ: ±2%
		100MΩ~ 1GΩ: ±5%
		1GΩ~ 10GΩ: ±10%
DC Resistance Test	0.1Ω-1MΩ	<100k: ±1%
DC Resistance Test	0.1Ω-1MΩ	>100k: ±5%
Outer Four-wire DC Resistance Test	10μΩ~100Ω	±0.2%+5μΩ
Four-wire NTC Test (10k, 100k)	Temperature Judgment (accuracy 0.1°C)	Users can self-defined RT table for resistance and temperature judgment
	Resistance Judgment (accuracy 10k: 1% 100k: 5%)	The resistance value can be judged according to the real -time temperature of the environment
	Comparison Judgment (accuracy 0.1°C)	Maximum resistance difference between tested and standard parts (Range)
AC Hi-pot Test	30V-1000V	±3%
DC Hi-pot Test	30V-1500V	±3%
AC Leakage Current Test	1μA-10mA	±3%
DC Leakage Current Test	0.1μA-5mA	±3%
LCR Test	Frequency: 50Hz-10 kHz	100mΩ-20MΩ ±2%
	Test type: resistance / capacitor / inductance / impedance / conduction / conductance	10pF-100μF ±2%
	Test level: 0.1V-1.5V	10nH~100H ±2%
Diodes / Zener Diodes	0-10V	0.1 mA / 1 mA (test signal)
Dimensions (in mm)	483265510 (1024P)	483183510 (512P)
Maximum Weight (in kg)	25	17
Standard Configuration	User’s manual in U disk, power cord, network cable, port adapter board, test line, patrol pen.
Optional Configuration	Insulation standard resistance, conduction standard resistance, industrial computer, desktop computer, monitor, mouse, keyboard, speaker.
