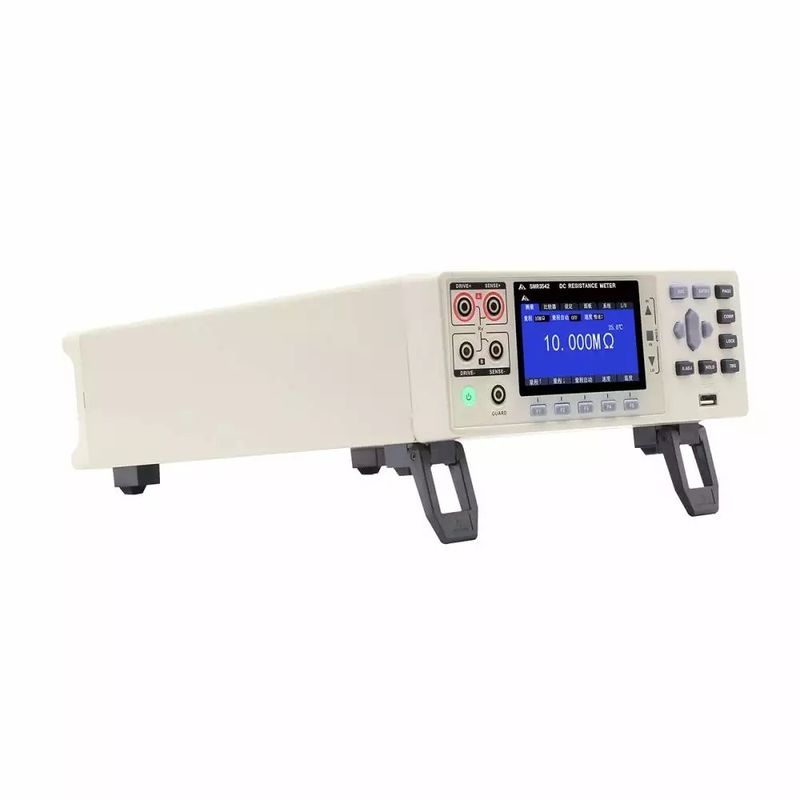

DC Resistance Tester
Product Description:
DC resistance tester is an instrument used to measure direct current resistance. It usually consists of a constant current source, a precision resistor and a digital voltmeter. By measuring the voltage across the measured resistance and the current flowing through it, the resistance value can be calculated. The direct current resistance tester can be used to measure the direct current resistance of various electronic components and devices, such as resistors, capacitors, inductors, transformers, etc. It can also be used to measure the direct current resistance of wires and cables to ensure that they meet the standards. The direct current resistance tester usually has the characteristics of high accuracy, high stability and high reproducibility, and can provide accurate measurement results. In addition, some direct current resistance testers also have functions such as automatic range selection, data storage and data analysis, which can improve measurement efficiency and facilitate user use.
Features:
- Product Name: DC Resistance Tester
- Interface: LAN, RS232, IO
- Dimensions: 325*215*96.5mm
- Measurement Range: 0.1μΩ ~ 10MΩ
- Number Of Channels: One/24PH/48PH
- Test Project: DC Resistance/NTC
- High Voltage Tester
- Battery Voltage Tester
- DC Resistance Tester
Technical Parameters:
DC Resistance Tester Specifications
| Product Name |
DC Resistance Tester |
| Test Mode |
4-wire or 2-wire (switchable) |
| Accuracy |
0.01% |
| Measurement Range |
0.1μΩ ~ 10MΩ |
| Weight |
2kg |
| Resolution |
0.1μΩ |
| Dimensions |
325*215*96.5mm |
| Attachments |
Power Cord, Test Clamp, Temperature Probe, Optional Probe Pen (multi-channel models with multi-channel test leads) |
| Test Project |
DC Resistance/NTC |
| Storage Temperature |
-10℃ ~ 60℃ |
| Interface |
LAN, RS232, IO |
Applications:
DC Resistance Tester - Perfect for Accurate and Efficient Measurements
Brand Name: SAIMR
Model Number: SMR230
Place of Origin: CHINA
Minimum Order Quantity: 1 SET
Price: To be negotiated
Packaging Details: Packing in wooden crates
Delivery Time: 30 WORK DAYS
Payment Terms: To be negotiated
Supply Ability: To be negotiated
Number Of Channels: One/24PH/48PH
Comparator: 10-bit Sorting, High/low/low Sorting
Measurement Range: 0.1μΩ ~ 10MΩ
Storage Temperature: -10℃ ~60℃
Test Mode: 4-wire Or 2-wire (switchable)

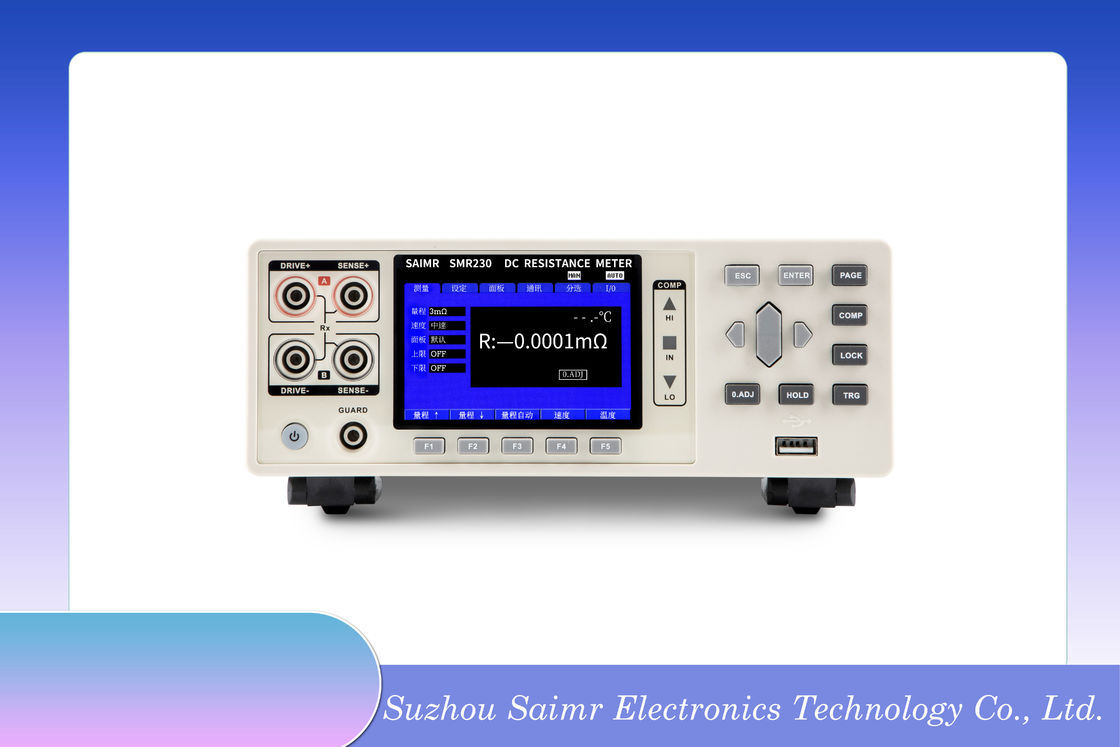

The DC Resistance Tester by SAIMR, model number SMR230, is a highly accurate and efficient tool for measuring DC resistance in various applications. Made in CHINA, this product is perfect for industries and laboratories that require precise measurements of resistance.
The minimum order quantity for this product is 1 set, and the price can be negotiated according to the needs of the customer. It is packaged in durable wooden crates to ensure safe delivery and has a delivery time of 30 work days.
The DC Resistance Tester has the ability to measure resistance in one, 24PH, or 48PH channels, giving users flexibility in their testing process. With a 10-bit sorting comparator, it can accurately sort results into high, low, or low resistance categories.
This tester has a wide measurement range of 0.1μΩ to 10MΩ, making it suitable for a variety of applications. It can also operate in a storage temperature range of -10℃ to 60℃, making it suitable for use in different environments.
The test mode for this product can be easily switched between 4-wire and 2-wire, depending on the needs of the user. This feature allows for more versatility and convenience in testing different materials.
In summary, the SAIMR SMR230 DC Resistance Tester is a reliable and efficient tool that is essential for accurate measurements in various industries. With its advanced features and customizable options, it is the perfect choice for any application that requires precise resistance testing.
Packing and Shipping:
Packaging and Shipping of DC Resistance Tester
Our DC Resistance Tester comes packaged in a sturdy and durable cardboard box to ensure safe and secure transportation. The box is designed to protect the product from any damage during shipping.
The product is also wrapped in a layer of bubble wrap for added protection. The packaging includes an instruction manual and all necessary cables and accessories.
We use reliable and trusted shipping services to deliver our products worldwide. The shipping cost will vary depending on the destination and will be calculated at the time of checkout.
For domestic orders, we offer standard and express shipping options. Standard shipping usually takes 3-5 business days, while express shipping takes 1-2 business days. For international orders, delivery times may vary depending on the destination and customs clearance processes.
Once your order has been shipped, you will receive a tracking number via email or text message. This will allow you to track your package and know its estimated delivery date.
If you have any special packaging or shipping requests, please contact our customer service team before placing your order. We will do our best to accommodate your needs.
Thank you for choosing our DC Resistance Tester. We hope it meets all your needs and expectations.
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is SAIMR.
- Q: What is the model number of this product?
- A: The model number of this product is SMR230.
- Q: Where is this product manufactured?
- A: This product is manufactured in China.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 1 set.
- Q: How much does this product cost?
- A: The price for this product is to be negotiated.
- Q: How is this product packaged?
- A: This product is packaged in wooden crates.
- Q: How long is the delivery time for this product?
- A: The delivery time for this product is 30 work days.
- Q: What are the accepted payment terms for this product?
- A: The payment terms for this product are to be negotiated.
- Q: What is the supply ability for this product?
- A: The supply ability for this product is to be negotiated.
