IR Test 500kΩ-10GΩ 10V-1000V EV Charger Testing Equipment for DC Leakage Current Test

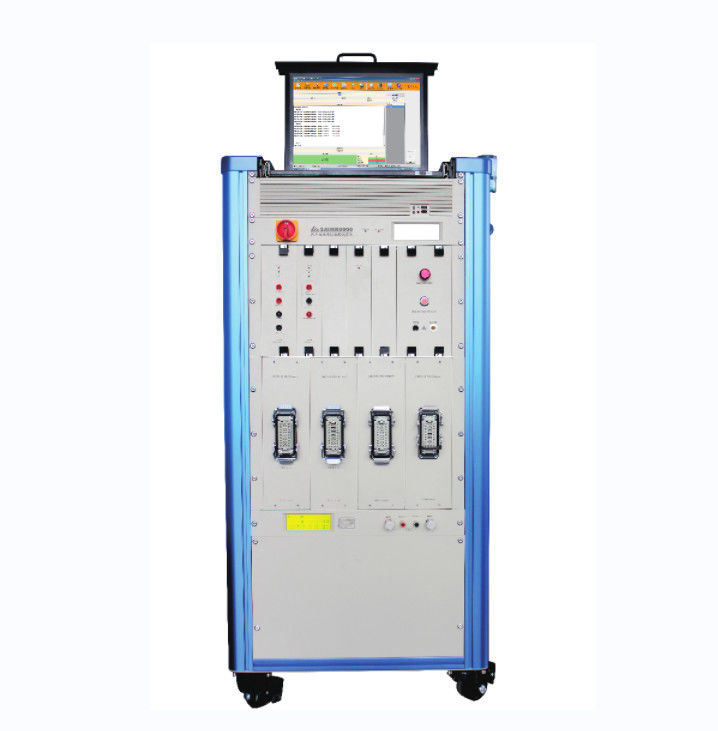

SAIMR8000- High Voltage Wire/Cable Harness Tester

Product Description:

The SAIMR8000 High Voltage Wire/Cable Harness Tester is a top-of-the-line testing equipment designed specifically for EV Power Supply Testing. As electric vehicles continue to gain popularity, the need for efficient and reliable charging equipment becomes more important. That's where our product comes in - to ensure that your EV charger is performing at its best.

The SAIMR8000 is available in two sizes - 1500*800*900mm and 1200*570*630mm, providing versatility to fit different testing environments. The compact size allows for easy transportation and storage, making it a convenient choice for both laboratory and field testing.

The SAIMR8000 is also known as the High Voltage Wire/Cable Harness Tester, emphasizing its ability to test and analyze the performance of electric vehicle chargers. This product is a must-have for electric vehicle manufacturers, EV charging station operators, and service providers.

The SAIMR8000 is capable of performing customizable four-wire NTC tests with 10K or 100K resistance options. This feature allows for accurate measurement and analysis of temperature sensors, ensuring the safety and efficiency of the EV charger.

Another key feature of the SAIMR8000 is its ability to perform DC leakage current tests, with a range of 0.01mA-6mA and a step of 0.01mA. This test is crucial in detecting any potential safety hazards, such as electrical leakage, and ensures the overall quality of the EV charger.

The SAIMR8000 is designed with portability in mind, weighing only 50kg or 60kg depending on the size. This allows for easy movement and set-up, making it a practical choice for on-site testing.

• Ensures optimal performance of EV chargers
• Customizable testing options for accurate results
• Detects potential safety hazards
• Compact and lightweight for easy transportation and storage
• Suitable for laboratory and field testing

The SAIMR8000 High Voltage Wire/Cable Harness Tester is the ultimate solution for testing and analyzing the performance of electric vehicle chargers. With its advanced features and compact design, it is an essential tool for ensuring the safety, efficiency, and reliability of EV charging equipment. Trust SAIMR8000 to be your go-to Electric Vehicle Charger Testing Equipment and Charger Performance Analyzer.

Features:

1. Electric Car Charger Testing System
2. Electric Vehicle Charging Equipment Analyzer
3. High Voltage Wire/Cable Harness Testing
4. Four-wire NTC test (10K/100K): Customizable
5. DC resistance test: Full Range
6. DC resistance test Accuracy: ＜100mΩ:±1%(1μΩ)/ 100mΩ-1kΩ:±1%
7. Product Name: SAIMR8000 High Voltage Wire/Cable Harness Tester
8. Weight: 50/60kg

Technical Parameters:

Applications:

Brand Name: SAIMR

Model Number: SAIMR7000

Place of Origin: CHINA

Certification: CE,ISO9001

Minimum Order Quantity: 1 SET

Price: To be negotiated

Packaging Details: Packing in wooden crates

Delivery Time: To be negotiated

Payment Terms: To be negotiated

Supply Ability: To be negotiated

DC resistance test Accuracy: ＜100mΩ:±1%(1μΩ)/ 100mΩ-1kΩ:±1%

Points: 32/64/128/256...20480PIN

Solenoid valve: 50mA-2A 0.2-40V (continuous/pulsed)

DC leakage current test: 0.01mA-6mA/Step 0.01mA

Standard configuration: User Manual U Disk, Power Cord, Network Cable, And Inspection Pen

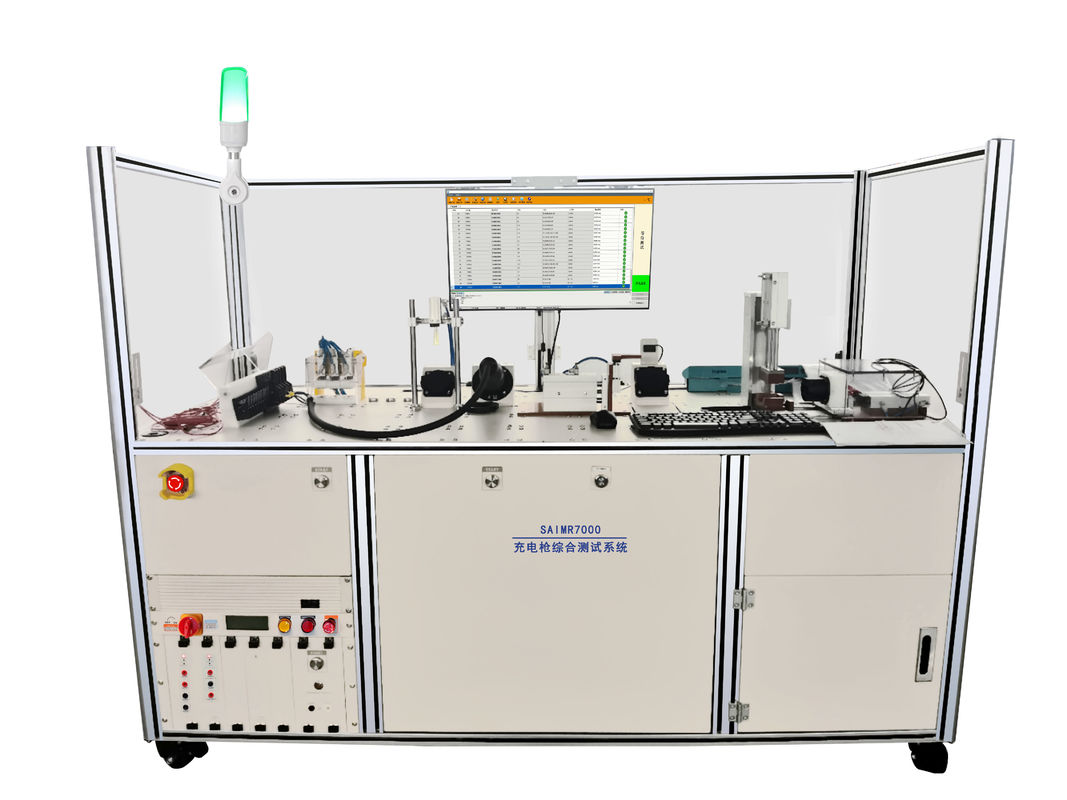

The SAIMR7000 EV Charger Testing Equipment is a high-precision and reliable product designed for testing electric vehicle chargers. It is widely used in various testing facilities, including EV charger manufacturers, research and development institutions, quality inspection centers, and electric vehicle maintenance centers.

The SAIMR7000 is used for testing the quality and performance of electric vehicle chargers. It is an essential tool for ensuring the safety and efficiency of EV chargers before they are put into use. The equipment is suitable for all types of electric vehicle chargers, including AC and DC chargers, and can accurately measure their DC resistance, solenoid valve, and DC leakage current. It is also equipped with a large number of PIN points for comprehensive testing.

• High accuracy: The DC resistance test accuracy is ＜100mΩ:±1%(1μΩ)/ 100mΩ-1kΩ:±1%, ensuring precise and reliable results.
• Large number of PIN points: With 32/64/128/256...20480PIN points, the equipment can perform comprehensive testing for different types of electric vehicle chargers.
• Wide range of testing capabilities: The solenoid valve can be tested for 50mA-2A and 0.2-40V (continuous/pulsed), and the DC leakage current can be tested for 0.01mA-6mA/Step 0.01mA.
• Standard configuration: The equipment comes with a user manual U disk, power cord, network cable, and inspection pen, making it easy to use and operate.
• High-quality materials: Made in China with CE and ISO9001 certification, the SAIMR7000 is made with top-quality materials for long-lasting durability and reliability.

The SAIMR7000 can be used by EV charger manufacturers to test the quality and performance of their products before they are released to the market. This ensures that their chargers meet industry standards and are safe and efficient for use by consumers.

Research and development institutions can use the SAIMR7000 to conduct comprehensive testing on their new EV charger designs. This helps to improve the quality and performance of their products before they are mass-produced.

The SAIMR7000 is also suitable for use in quality inspection centers to ensure that all EV chargers meet safety and performance standards. This is especially important for conducting regular checks on chargers in public and private charging stations.

Electric vehicle maintenance centers can use the SAIMR7000 to check the quality and performance of EV chargers in electric vehicles. This ensures that the chargers are functioning properly and can be safely used by vehicle owners.

The SAIMR7000 EV Charger Testing Equipment is a highly versatile and accurate product that plays a crucial role in the electric vehicle industry. It is designed to ensure the safety and efficiency of electric vehicle chargers, making it an essential tool for EV charger manufacturers, research and development institutions, quality inspection centers, and electric vehicle maintenance centers.

Customization:

Our EV Charger Testing Equipment, also known as Electric Car Charger Testing System, is designed to test the performance and safety of charging stations for electric vehicles. As a leading provider of EVSE Testing Solutions, SAIMR offers customized services to meet your specific needs.

With our Brand Name SAIMR and Model Number SAIMR8000, you can trust in the quality and reliability of our products. Our EV Charger Testing Equipment is proudly made in CHINA and has been certified with CE and ISO9001.

We understand that every customer has unique requirements, and therefore, we offer a minimum order quantity of 1 SET and are open to negotiating the price to fit your budget. To ensure safe delivery, our products are packed in sturdy wooden crates and can be delivered within a negotiated timeframe.

For your convenience, we offer flexible payment terms and have the ability to supply large quantities of our EV Charger Testing Equipment. Our standard configuration includes a User Manual U Disk, Power Cord, Network Cable, and Inspection Pen.

In addition to its primary function of testing electric car chargers, our EV Charger Testing Equipment also has the capability of conducting Switch Tests, Solenoid Valve tests (50mA-2A, 0.2-40V continuous/pulsed), IR Tests (500kΩ-10GΩ, 10V-1000V), and DC Leakage Current Tests (0.01mA-6mA/Step 0.01mA).

Choose SAIMR for all your EV Charger Testing needs and experience our exceptional products and customized services. Contact us today to learn more and negotiate your order.

FAQ:

. Question: What is a charging gun wiring harness test?

Answer: A charging gun wiring harness test is a test used to evaluate the performance and reliability of the wiring harness in a charging gun. The test typically includes a series of tests to ensure that the wiring harness can withstand electrical, mechanical, and environmental stresses while maintaining proper connectivity and functionality.

Question: Why is a charging gun wiring harness test important?

Answer: A charging gun wiring harness test is important because it helps ensure the safety and reliability of the charging gun. A properly functioning wiring harness is critical for the efficient transfer of electrical power from the charging station to the vehicle. A faulty wiring harness can lead to charging failures, electrical shorts, or even fires.

Question: What are the typical tests included in a charging gun wiring harness test?

Answer: Typical tests included in a charging gun wiring harness test may include:

- Electrical continuity test: This test checks that all wires in the wiring harness are properly connected and that there are no breaks or shorts in the wires.

- Insulation resistance test: This test measures the resistance of the insulation material around the wires to ensure that it can withstand electrical stresses without failing.

- Mechanical durability test: This test evaluates the ability of the wiring harness to withstand repeated bending, flexing, and twisting without failing. - Temperature cycling test: This test exposes the wiring harness to a range of temperatures to ensure that it can withstand temperature fluctuations without failing.

- Environmental exposure test: This test evaluates the ability of the wiring harness to withstand exposure to moisture, dust, and other environmental factors without failing.

Question: How is a charging gun wiring harness test performed?

Answer: A charging gun wiring harness test is typically performed using specialized test equipment, such as a multimeter, insulation resistance tester, or durability tester. The test equipment is connected to the wiring harness and the various tests are performed to evaluate the performance and reliability of the wiring harness.
