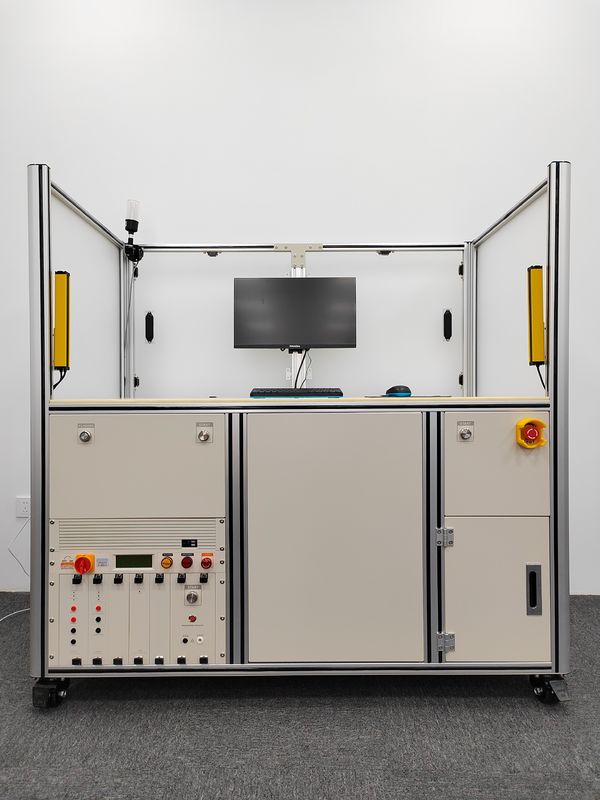

SAIMR8000 High Voltage Wire/Cable Harness Tester
Product Description:
The SAIMR8000 High Voltage Wire/Cable Harness Tester is a cutting-edge testing equipment specially designed for EV Power Supply testing. With its advanced features and customizable options, this tester is the perfect solution for Electric Vehicle Charger Testing needs.
Test Mode: Four-Wire Test
The SAIMR8000 supports Four-Wire Test mode, ensuring accurate and reliable testing results for EV Power Supply. This mode eliminates the effects of lead resistance and provides precise measurements.
AC Withstand Voltage Test
The tester comes with AC Withstand Voltage Test capability, supporting a wide range from 10V to 4000V (optional 5000V) with a step of 10mA. This feature ensures the safety and reliability of the EV Power Supply being tested.
Product Name: SAIMR8000 High Voltage Wire/Cable Harness Tester
The SAIMR8000 is a state-of-the-art product designed for EV Power Management Test needs. Its high voltage testing capabilities and customizable options make it the ideal choice for Electric Vehicle Charger Testing.
Dimensions:
- 1500*800*900mm
- 1200*570*630mm
The tester is available in two sizes, making it suitable for various testing environments. The compact design ensures easy portability and space-saving installation.
Four-Wire NTC Test (10K/100K)
The SAIMR8000 also supports Four-Wire NTC Test with customizable options for 10K or 100K resistors. This feature makes it suitable for testing a wide range of EV Power Management systems.
Key Features:
- Four-Wire Test mode for accurate results
- AC Withstand Voltage Test (10V-4000V/5000V)
- Customizable Four-Wire NTC Test (10K/100K)
- Compact and portable design
Overall, the SAIMR8000 High Voltage Wire/Cable Harness Tester is a top-of-the-line product that meets all the requirements for EV Power Supply testing. Its advanced features and customizable options make it the perfect choice for Electric Vehicle Charger Testing needs.
Features:
- Product Name: EV Charger Testing Equipment
- Power supply: 220V
- DC resistance test: Full Range
- Dimensions: 1500*800*900/ 1200*570*630mm
- DC leakage current test: 0.01mA-6mA/Step 0.01mA
- Four-wire NTC test (10K/100K): Customizable
- Charger Performance Analyzer
- Electric Vehicle Charger Testing Equipment
- EV Charging Station Testing Device
Technical Parameters:
| Product Name |
SAIMR8000 High Voltage Wire/Cable Harness Tester |
| Weight |
50/60kg |
| Test Mode |
Four-Wire Test |
| Solenoid Valve |
50mA-2A 0.2-40V (continuous/pulsed) |
| IR Test Accuracy |
±2%/±5%/±10% |
| Other Function |
Switch Test |
| AC Leakage Current Test |
0.01mA-12mA/Step 0.01mA |
| Points |
32/64/128/256...20480PIN |
| AC Withstand Voltage Test |
10V-4000V(Optional 5000V)/Step 10mA |
| DC Resistance Test |
Full Range |
| Product Type |
EV Power Management Test Equipment, Charger Performance Analyzer, Electric Vehicle Charging Equipment Analyzer |
Applications:
Introduction to SAIMR8000 EV Charger Testing Equipment
Brand Name: SAIMR
Model Number:SAIMR8000
Place of Origin: CHINA
Certification: CE, ISO9001
Minimum Order Quantity: 1 SET
Price: To be negotiated
Packaging Details: Packing in wooden crates
Delivery Time: To be negotiated
Payment Terms: To be negotiated
Supply Ability: To be negotiated
Test Mode: Four-Wire Test
AC withstand voltage test: 10V-4000V (Optional 5000V)/Step 10mA
Power supply: 220V
IR Test: 500kΩ-10GΩ (10V-1000V)
Other Function: Switch Test
Application and Scenes
The SAIMR7000 EV Charger Testing Equipment is designed for inspecting and testing electric car charging stations. It can be used in various scenarios, such as electric vehicle manufacturers, charging station operators, and maintenance companies.
Electric Vehicle Manufacturers
For electric vehicle manufacturers, the SAIMR7000 can be used to test the charging function and safety of their newly produced electric cars. With its four-wire test mode and AC withstand voltage test, it can ensure the quality and safety of the electric car charging system before it is delivered to customers.
Charging Station Operators
Charging station operators can use the SAIMR7000 to regularly inspect and maintain their electric vehicle charging stations. The equipment can perform an AC withstand voltage test to check for any potential hazards and an IR test to detect any insulation problems in the charging system. This ensures the safety and reliability of the charging stations for electric vehicle users.
Maintenance Companies
Maintenance companies can use the SAIMR7000 to troubleshoot and repair faulty electric vehicle charging stations. With its switch test function, the equipment can quickly determine the cause of the problem and provide accurate readings for effective repairs.
Product Features
- Compact and portable design for easy transportation
- Four-wire test mode for accurate and reliable results
- AC withstand voltage test to ensure safety
- IR test to detect insulation problems
- Switch test for troubleshooting and repairs
- Wide range of voltage and resistance measurement capabilities
- Compatible with electric car charging stations of various brands and models
- High-quality materials and CE/ISO9001 certification for durability and reliability
- Easy to use interface and user-friendly operation
- Customizable options for specific testing needs
Conclusion
The SAIMR8000 EV Charger Testing Equipment is a versatile and essential tool for the inspection and maintenance of electric vehicle charging stations. With its advanced testing capabilities and user-friendly design, it ensures the safety and reliability of electric car charging systems, contributing to the development and promotion of sustainable transportation.
Customization:
Charger Quality Assurance Tool - SAIMR8000
As a leading provider of professional testing equipment, SAIMR offers the SAIMR7000 EV Charger Testing Equipment to ensure the reliability and performance of your charging stations. Our customized services provide tailored testing solutions for your specific needs.
Brand Name: SAIMR
Model Number: SAIMR8000
Place of Origin: CHINA
Certification: CE, ISO9001
Minimum Order Quantity: 1 SET
Price: To be negotiated
Packaging Details: Packing in wooden crates
Delivery Time: To be negotiated
Payment Terms: To be negotiated
Supply Ability: To be negotiated
Dimensions: 1500*800*900/ 1200*570*630mm
DC Resistance Test Accuracy: ＜100mΩ:±1%(1μΩ)/ 100mΩ-1kΩ:±1%
Standard Configuration: User Manual U Disk, Power Cord, Network Cable, And Inspection Pen
IR Test: 500kΩ-10GΩ(10V-1000V)
AC Leakage Current Test: 0.01mA-12mA/Step 0.01mA
Our EV Power Supply Tester, the SAIMR8000, is designed with high-quality components and a robust design for efficient and precise measurements. With our customized testing solutions, you can trust in the performance and reliability of your charging stations. Trust SAIMR for all your professional testing equipment needs.
Contact us today to learn more about our customized services for the SAIMR8000 EV Charger Testing Equipment.
FAQ:
Advantages of the high-voltage wiring harness comprehensive test system in the form of FAQ:
1. What is the high-voltage wiring harness comprehensive test system?
The high-voltage wiring harness comprehensive test system is a device used to test the performance of high-voltage wiring harnesses, which can conduct comprehensive performance tests on high-voltage wiring harnesses to ensure their safety and reliability.
2. What are the advantages of the high-voltage wiring harness comprehensive test system?
The high-voltage wiring harness comprehensive test system has the following advantages:
- Comprehensive testing: It can conduct comprehensive performance tests on high-voltage wiring harnesses, including insulation resistance, voltage withstand, conductivity, and circuit breaker tests.
- High-precision: It adopts advanced testing technology and instruments, which can provide high-precision test results to ensure the quality of high-voltage wiring harnesses.
- High efficiency: It can test multiple high-voltage wiring harnesses simultaneously, improving testing efficiency and shortening testing time.
- Automation: It has automated test functions, which can reduce manual operations and improve the accuracy and reliability of tests.
- High safety: It adopts multiple protection measures to ensure the safety of the test process and avoid damage to personnel and equipment.
- Data management: It can manage and analyze test data, provide detailed test reports and data analysis results, and facilitate users for quality management and improvement.
3. What scenarios is the high-voltage wiring harness comprehensive test system suitable for?
The high-voltage wiring harness comprehensive test system is suitable for the fields of new energy vehicles, electric vehicles, high-voltage electrical appliances, and power equipment. It can be used in the R&D, production, quality control, and maintenance of high-voltage wiring harnesses.
