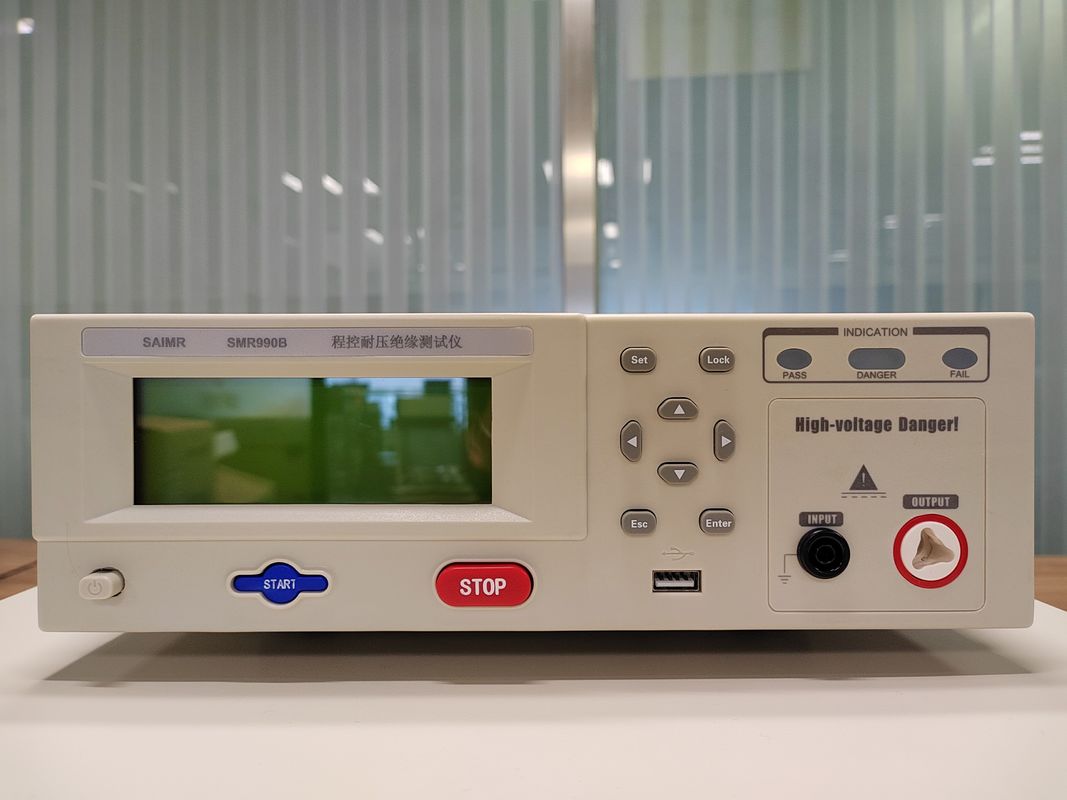

7.5kg Insulation Hipot Withstand Voltage Tester Hipot Test Machine RS232 Interface

Insulation Hipot Withstand Voltage Tester

Product Description:

The Insulation Hipot Withstand Voltage Tester is a professional and user-friendly tool used for testing the insulation endurance voltage of various electrical equipment and devices. This high voltage insulation tester is designed to provide precise and reliable results, ensuring the safety and efficiency of your work.

• High Voltage Output: With an AC output range of 0.01-5KV, this tester is suitable for testing a wide range of electrical equipment and devices.
• Digital Display: The LCD display makes it easy to read and interpret the test results, providing accurate and clear readings.
• Operating Temperature: This tester can be used in temperatures ranging from 0-40°C, making it suitable for various working environments.
• Power Supply: It is powered by AC 220V±10%, 50Hz, ensuring stable and consistent performance.
• Dimensions: The compact size of 374*280*99mm makes it portable and easy to carry around for on-site testing.

The Insulation Hipot Withstand Voltage Tester is an essential tool for any electrical engineer or technician, providing accurate and reliable results for insulation testing. Its user-friendly design and safety features make it a must-have for any workplace.

Features:

• Product Name: Insulation Hipot Withstand Voltage Tester
• Insulation Resistance Hipot Tester
• Insulation Withstand Voltage Tester
• Resistance Accuracy: ±(2% Of Reading + 2 Digits)
• Output DC: 0.01-6KV
• Display: LCD
• Operating Temperature: 0-40°C
• Output AC: 0.01-5KV

Technical Parameters:

Applications:

The Insulation Hipot Withstand Voltage Tester, also known as the Insulation Resistance Hipot Tester, is a high-quality, reliable, and efficient testing equipment used to test the insulation properties of various electrical devices and components. Developed and manufactured by SAIMR, a leading brand in the field of electrical testing equipment, the SMR990B model is designed to meet the diverse testing needs of different industries and applications.

• Brand Name: SAIMR
• Model Number: SMR990B
• Place of Origin: CHINA
• Minimum Order Quantity: 1 SET
• Price: 1000$-3000$
• Packaging Details: Packed in cartons
• Delivery Time: 30 WORK DAYS
• Payment Terms: To be negotiated
• Output DC: 0.01-6KV
• Insulation Resistance Range: 100KΩ-100GΩ
• Power Supply: AC 220V±10%, 50Hz
• Output AC: 0.01-5KV
• Dimensions: 374*280*99mm

The Insulation Hipot Withstand Voltage Tester is suitable for a wide range of applications in different industries, including but not limited to:

• Electronics manufacturing
• Power generation and distribution
• Telecommunications
• Automotive industry
• Industrial machinery and equipment

The SMR990B model is equipped with advanced technology and features that make it a reliable and efficient testing tool. Some of its key features include:

• High Voltage Insulation Tester: With a maximum output voltage of 6KV, this tester is capable of testing the insulation properties of high-voltage equipment and components.
• Insulation Withstand Voltage Tester: This feature allows the tester to apply a high voltage to the device being tested to check its ability to withstand high levels of electrical stress.
• Insulation Resistance Hipot Tester: The tester can measure the insulation resistance of the device being tested, providing valuable information about its overall insulation quality.
• Wide Voltage Range: The tester can output both DC and AC voltage, ranging from 0.01KV to 6KV and 0.01KV to 5KV, respectively. This makes it suitable for testing a wide range of devices with varying voltage requirements.
• High Insulation Resistance Range: The tester can measure insulation resistance ranging from 100KΩ to 100GΩ, making it suitable for testing both low and high resistance devices.
• Easy to Use: The tester has a user-friendly interface and simple operation, making it easy for technicians and engineers to use.
• Compact and Portable: With dimensions of 374*280*99mm, the tester is compact and lightweight, making it easy to carry and transport to different testing locations.
• Durable and Reliable: Made with high-quality materials and advanced technology, the tester is built to last and provide accurate and consistent results.

The testing process using the Insulation Hipot Withstand Voltage Tester is simple and straightforward. Here are the basic steps:

1. Connect the device to be tested to the tester using the appropriate cables.
2. Set the desired output voltage and resistance range on the tester.
3. Apply the voltage to the device and monitor the insulation resistance reading on the tester's display.
4. If the device passes the insulation resistance test, proceed to the withstand voltage test by gradually increasing the output voltage and checking for any breakdown or failure.
5. If the device withstands the specified voltage without any issues, it is considered to have passed the test.
6. Record and analyze the test results to identify any potential issues or areas for improvement.

The Insulation Hipot Withstand Voltage Tester from SAIMR is a highly versatile and efficient testing equipment that is essential for ensuring the safety and reliability of electrical devices and components. With its advanced features, wide voltage and resistance range, and user-friendly design, it is a must-have tool for any industry that deals with high-voltage equipment. So, if you are looking for a high-quality insulation tester, look no further than the SMR990B from SAIMR!

Customization:

Brand Name: SAIMR

Model Number: SMR990B

Place of Origin: CHINA

Minimum Order Quantity: 1 SET

Price: 1000$-3000$

Packaging Details: packed in cartons

Delivery Time: 30 WORK DAYS

Payment Terms: To be negotiated

Weight: 7.5kg

Output AC: 0.01-5KV

Display: LCD

Insulation Resistance Range: 100KΩ-100GΩ

Output DC: 0.01-6KV

Customized Service for High Voltage Insulation Tester:

• Customized Branding: We can add your company logo and brand name on the tester.
• Customized Model Number: We can customize the model number according to your specific needs.
• Customized Place of Origin: We can manufacture the tester in your desired location.
• Flexible Minimum Order Quantity: We can discuss and negotiate the minimum order quantity according to your requirements.
• Customized Packaging: We can use customized packaging materials and methods according to your preferences.
• Customized Delivery Time: We can adjust the delivery time to meet your urgent needs.
• Flexible Payment Terms: We can negotiate the payment terms that are suitable for both parties.
• Customized Weight: We can adjust the weight of the tester to meet your transportation needs.
• Customized Output Voltage Range: We can customize the output voltage range according to your specific requirements.
• Customized Display: We can use different types of display screens according to your preferences.
• Customized Insulation Resistance Range: We can adjust the insulation resistance range to meet your testing needs.
• Customized Output DC: We can customize the output DC voltage range to meet your specific requirements.
• Professional Customization: Our team of experts will work closely with you to provide professional and efficient customization services.

Choose SAIMR as your High Voltage Insulation Tester Manufacturer and enjoy our professional and flexible customized services.
