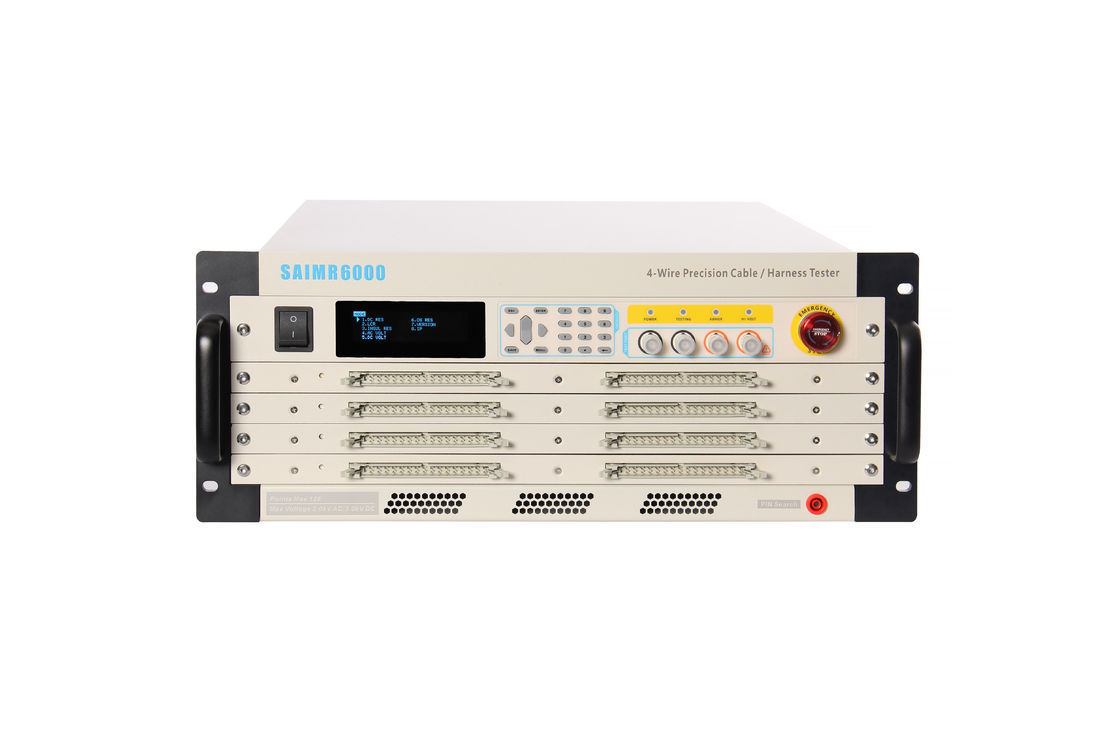

Wire Harness Tester 1024P

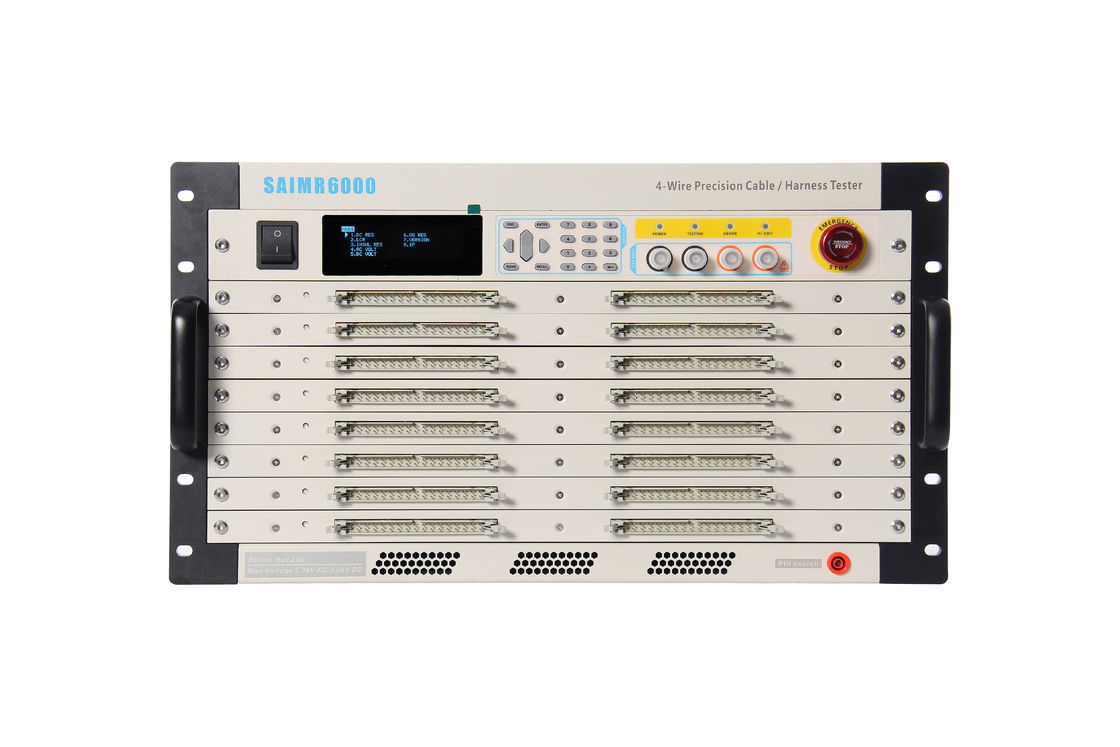

harness continuity tester 512P

Place of Origin:

CHINA

Brand Name:

SAIMR

Certification:

Model Number:

SAIMR6000S/6000

Request A Quote

Wire Harness Tester Harness Continuity Tester 1024P / 512P

Product Details

Product Name:

Medium Voltage Wire/Cable Harness Tester

Dimensions:

483*265*510 (1024P)/483*183*510 (512P)mm

Test Result:

Pass/Fail

Weight:

26/18kg

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

2000-10000$ per set

Delivery Time

30 work days

Payment Terms

T/T

Precise Accurate Testing Wire Harness Tester Low Voltage

Get Best Price

Cable And Wire Harness Tester Low Voltage DC 1500V

Get Best Price

220V 4 Wire Wire Harness Tester Professional Testing Instrument

Get Best Price

Bilingual 30-1500V Wire Harness Tester User Friendly

Get Best Price

86-0512-62519606

sales2@saimr.com

Contact Now

Product Description

Wire Harness Tester Harness Continuity Tester 1024P / 512P

Applicable Typical Industry

Automotive electronics
Aerospace
Energy storage, new energy batteries
Wiring harness line automation

Application

FPC Flexible circuit board
Medium voltage harness testing
Connectors, wires, cables
Energy storage battery, power battery CCS, integrated busbar

Features

Insulation resistance test up to 50 GΩ with 4-wire resistance resolution up to 0.1μΩ
The distributed structure (32 points/board), test points can be expanded to more than 20,000 points.
The system adopts two-wire and four-wire mixed measurement, which has higher measurement accuracy and faster speed.
Software custom editing tst function, editable point import and export.
One-stop comprehensive testing (OS, DC resistance, insulation resistance, AC/DC insulation withstand voltage, LCR, etc.).

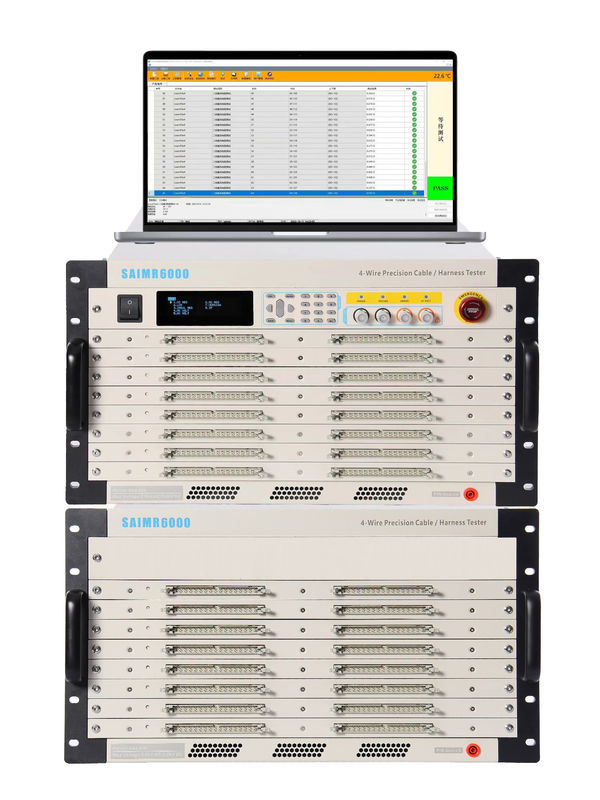

Software Introduction

Wire Harness Tester Harness Continuity Tester 1024P / 512P 0

Specification

Medium Voltage test	SAIMR6000
Test Mode	4-wire or 2-wire (mixed test)
Number of Points	32/64/128/256…20480 points
Test Project	Test Range	Test Accuracy
OS Test (Voltage 5V)	2 kΩ-200 kΩ (optional 20 kΩ -1000 kΩ)	±5%
Insulation Resistance Test	1MΩ-50GΩ (30V-2000V)	1MΩ~100MΩ: ±2%
		100MΩ~ 1GΩ: ±5%
		1GΩ~ 50GΩ: ±10%
DC Resistance Test	0.1Ω-1MΩ	<100k: ±1%
DC Resistance Test	0.1Ω-1MΩ	>100k: ±5%
Outer Four-wire DC Resistance Test	10μΩ~100Ω	±0.2%+5μΩ
Four-wire NTC Test (10k, 100k)	Temperature Judgment (accuracy 0.1°C)	Users can self-defined RT table for resistance and temperature judgment
	Resistance Judgment (accuracy 10k: 1% 100k: 5%)	The resistance value can be judged according to the real -time temperature of the environment
	Comparison Judgment (accuracy 0.1°C)	Maximum resistance difference between tested and standard parts (Range)
AC Hi-pot Test	30V-2000V	±3%
DC Hi-pot Test	30V-3000V	±3%
AC Leakage Current Test	1μA-10mA	±3%
DC Leakage Current Test	0.1μA-5mA	±3%
Dimensions (in mm)	483265510 (1024P)	483183510 (512P)
Maximum Weight (in kg)	26	18
Standard Configuration	User’s manual in U disk, power cord, network cable, port adapter board, test line, patrol pen.
Optional Configuration	Insulation standard resistance, conduction standard resistance, industrial computer, desktop computer, monitor, mouse, keyboard, speaker.
